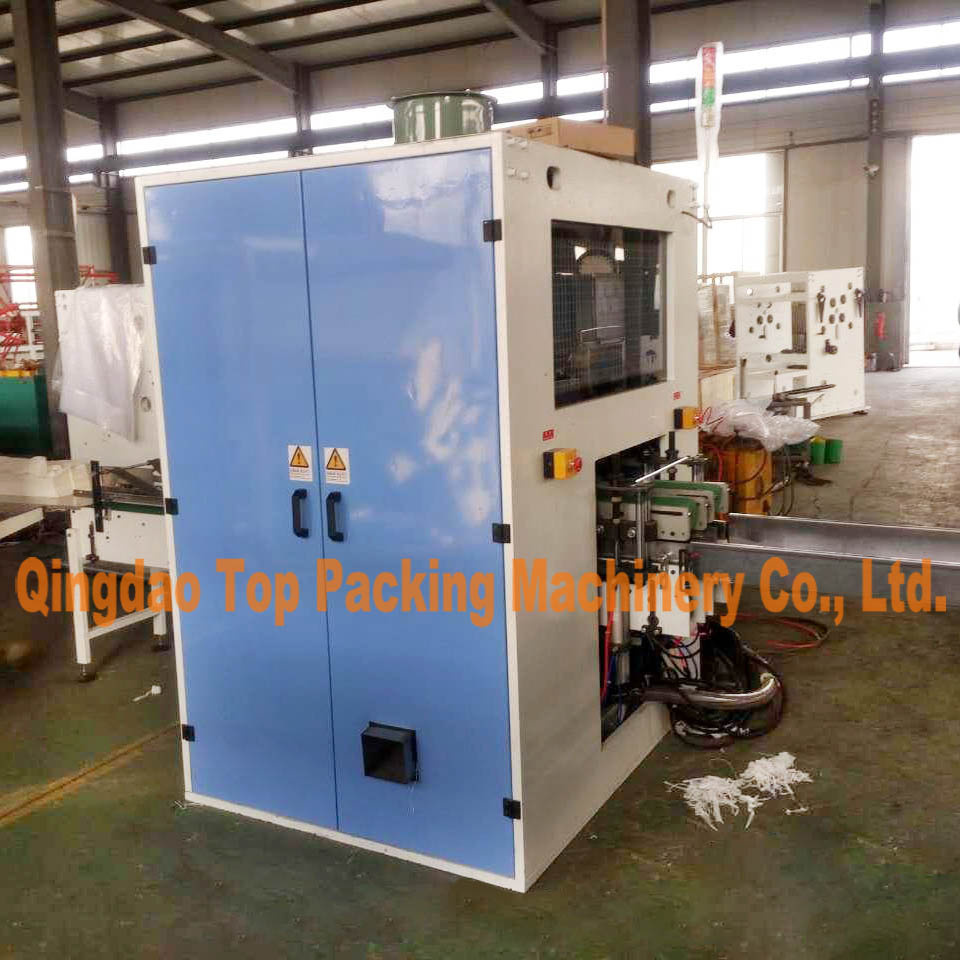

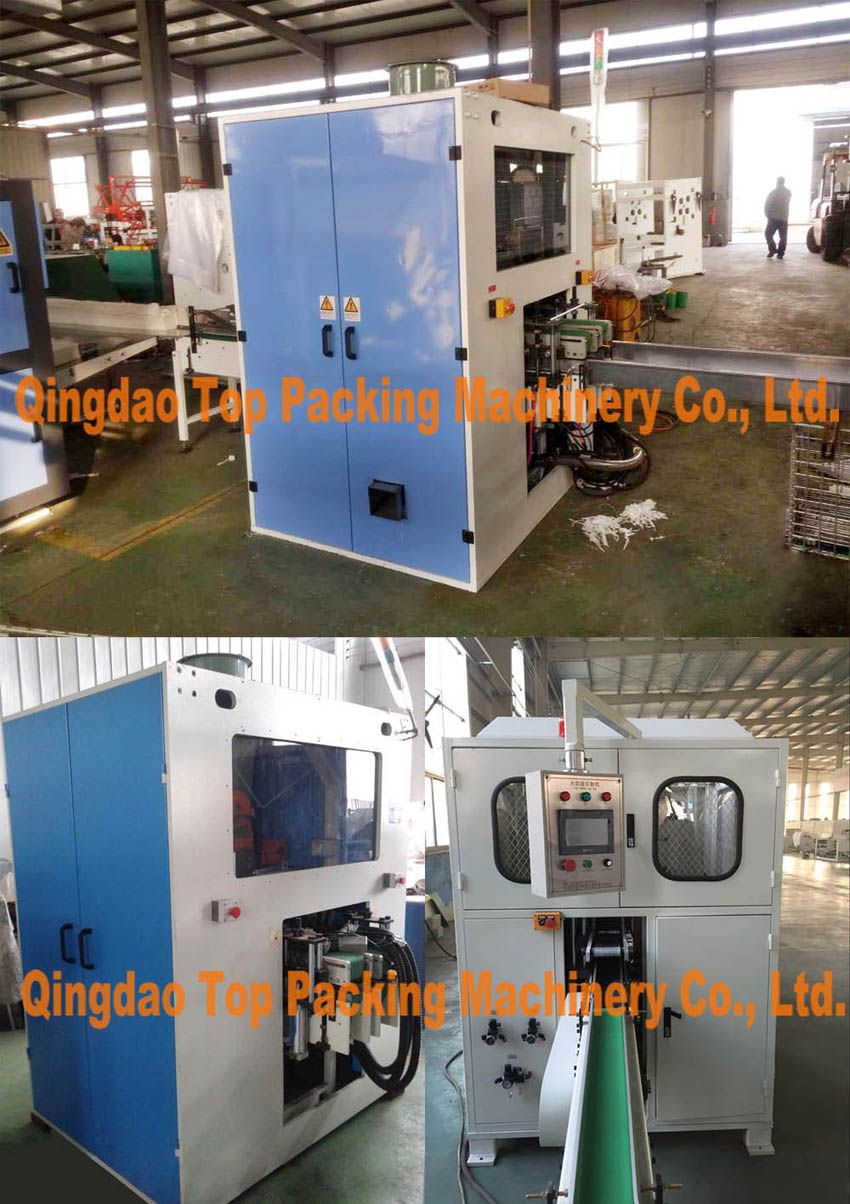

Automatic Toilet Paper Cutting Machine Tissue Log Saw
| Price: |
US $ 10-30000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TPC-1L/2L |
| Certificate: |
ISO9001 |
| Motor: |
Servo Motor |
| Place Of Origin: |
Qingdao, China |
Product Description
TPC -1L/2L Single/Double Channel Large Orbit High Speed Log Saw
Application range: TPC -1L/2L are suitable for automatic cutting of
facial tissue,
paper towel,
toilet paper roll (roll paper with core or coreless),etc.
TPC -1L/2L High speed log saw cutting machine is one of the important equipment for the automatically continuous production line of toilet rolls,kitchen towels and facial tissue,greatly increasing the production automatically and efficiency. The machine is characteristic of a strong,well built structure and perfect cutting action.
Main features include:
1. Automatic blade sharpening unit equipped with lubrication system that regular automatic lubrication of the blade.
2. Rotating circular knife movement and continuous tissue forward movement.
3. The paper head and tail has been cut off optional that can be separated from the finished roll automatically.
4. PLC and man-machine interface system are adopted to flexibly change the knife grinding time,cutting speed,cutting length, to effect the highly efficient cutting.
5. The single channel paper cutting machine especially suitable for tissues height exceeding 120mm.
Technical Parameter| Machine Model | TPC -1L/2L Single/Double Channel High Speed Log Saw |
| Applicable Raw Material | Facial tissue, coreless (cored) paper roller without embossing |
| Applicable Raw Material | Facial tissue | Length: MIN 50mm
Width:40-120mm
Height:30-140mm |
Paper roller without embossing
| Length: 50-230mm Diameter: Φ120mm
|
| Cutting Precision |
Facial tissue | The first and last cutting<=2mm
In between within<=0.5mm |
| paper roller without embossing | Self setting of paper roll ends, In between 0.5mm |
| Control System |
PLC Control ;Servo motor drive; Touch-screen operation |
| Sharpening System | Automatic blade sharpening interval and sharpening time adjustable |
| Round Blade Diameter | Φ610mm |
| Round Blade Up &Down Movement | Hand wheel to adjust |
| Required Air Pressure | 0.5Mpa(Prepared by the user) |
| Dust Removal Device | Fixed felts dust box |
| Production Speed | 100-130cuts/min |
| Power | AC380V 50Hz |
Electric Components Brand:| Name | Brand |
| PLC | Siemens |
| Pneumatic Components | SMC |
| Inverter | DANFOSS-HOLIP |
| Touch screen | MCGS |
| Contactor | Schneider |
| Servo motor | Panasonic |
2017 Exhibition News :2017 Exhibition News :
|
NAME: The 24th China International Disposable Paper Expo 2017
|
Time : March 22th to 24th, 2017
|
Our booth number : B2D22
|
Address: HALL B2,
Wuhan International Expo Center,China.
|
Our Telephone:+ 86-18661983008. We sincerely welcome you to visit our booth : B2D22 in the CIDPEX 2017 in Wuhan city of China .

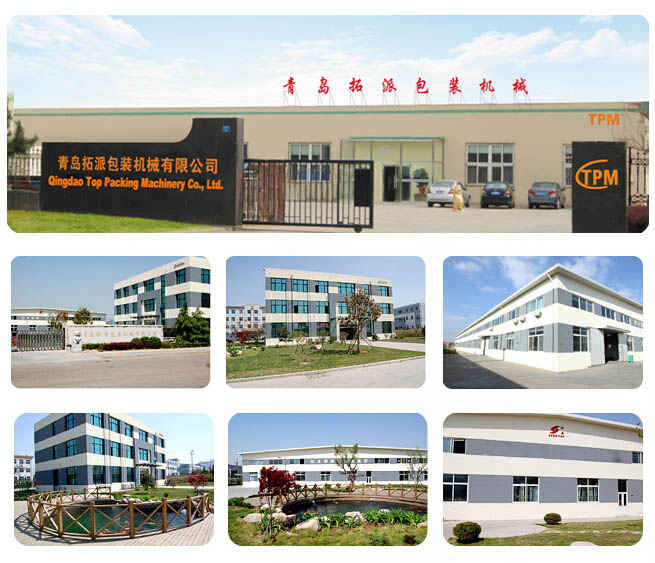

Company introduction:
