Automatic Wire Nail Making Machine/Machine to Make Nail
Product description: This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.

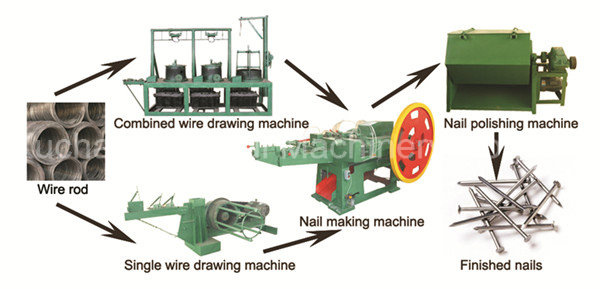

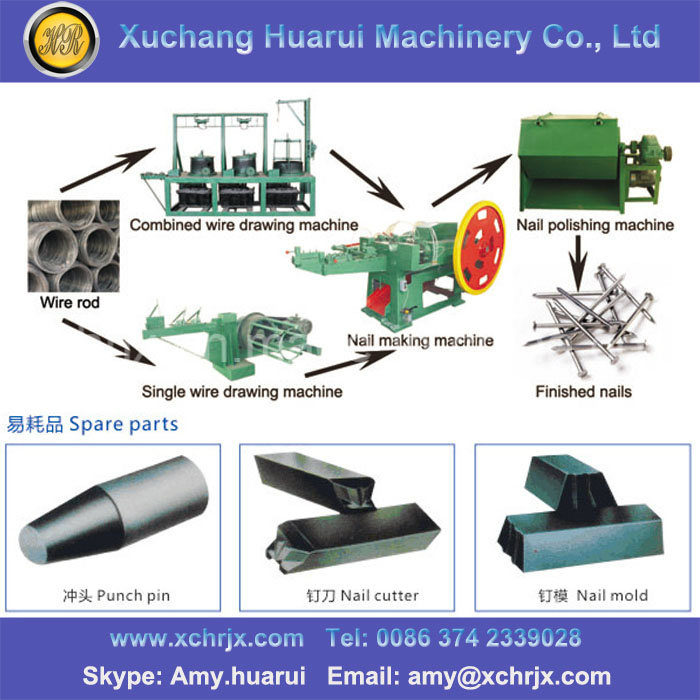

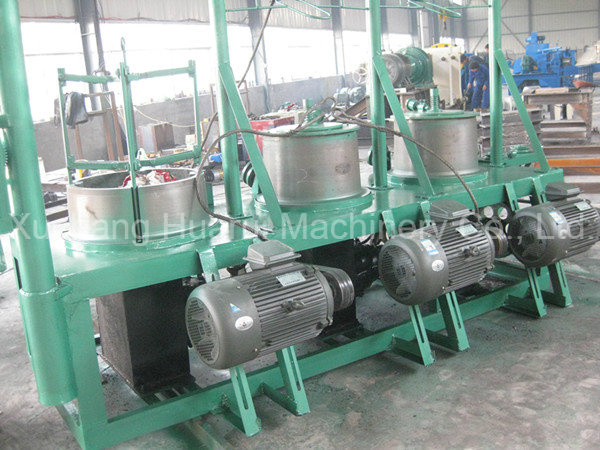

Process flow: Wire rod -- wire drawing ---nail making-nail polishing-finished nails 1.Combined wire drawing machine: this machine can draw the wires to any diameter you want with high speed
Model No.
Max inlet diameter
Min outlet diameter
Motor Power
LS1-3-500
6.5mm
2.0mm
11/15kw/set
Remarks: this machine comes with descaling machine and discharging machine

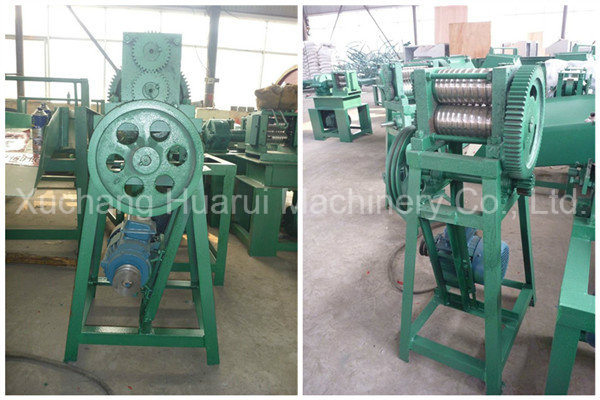

2. Pointing rolling machine(accessory machine for wire drawing machine): This machine is used to sharpen the head of the wire, then it can enter the wire drawing machine.
Model No.
Rolling pointed range
Motor power
Overall size
Weight
Pointing rolling machine
≤8mm
2.2kw
1.2*0.6*1.0m
80kg

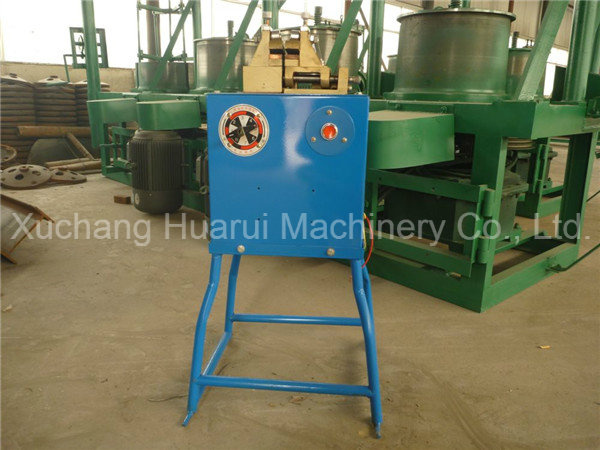

3. Butt welding machine(accessory machine for wire drawing machine): This machine is used to weld two wires coil together. When one wire coil finish drawing, this machine can connect the next wire coil to continue to be drawn by the wire drawing machine.
Model No.
Butt weld range
Voltage
Weight
Butt welding machine
φ3-φ8mm
380V 50HZ
50kg

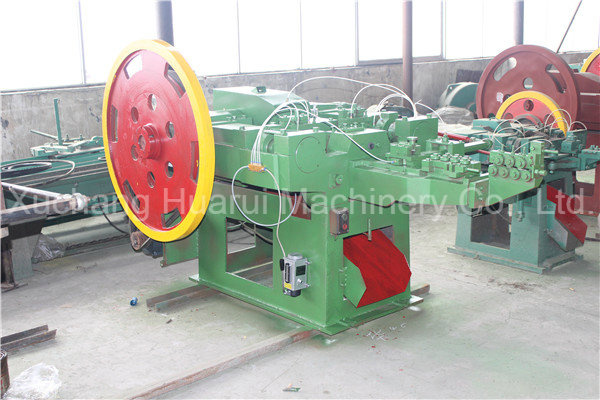

4. New generation of automatic nail making machine
Model
Diameter of nails
Length of nails
Designed speed
Motor
Dimension (L*W*H)
Weight
Z94-1C
0.9-16.mm
9-25mm
450pcs/min
1.5kw
1.5*1.3*1.1m
1.2tons
Z94-2C
1.2-2.8mm
16-50mm
380pcs/min
2.2kw
1.7*1.3*1.4m
1.45tons
Z94-3C
1.8-3.5mm
30-75mm
320pcs/min
3kw
2.0*1.4*1.4m
1.8tons
Z94-4C
2.8-4.5mm
50-100mm
260pcs/min
4kw
2.2*1.6*1.6m
2tons
Z94-4C(2)
2.8-5mm
50-120mm
260pcs/min
4kw
2.3*1.6*1.3m
2.1tons
Z94-5.5C
3.8-5.5mm
75-150mm
220pcs/min
5.5kw
2.5*1.8*1.5m
2.3tons
Z94-6C
4-8mm
100-200mm
180pcs/min
11w
3.4*1.9*1.5m
5tons

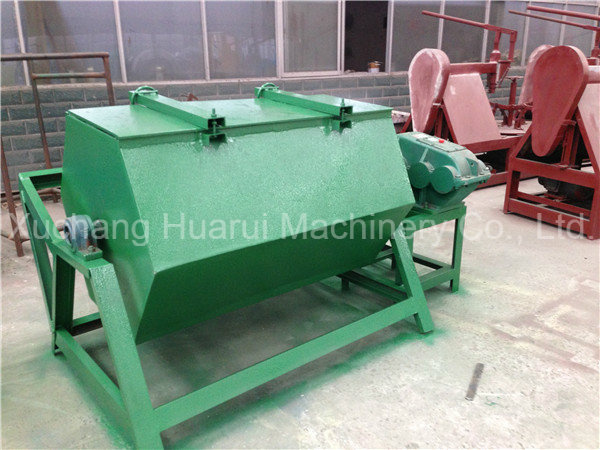

5. Nail polishing machine: this machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.
Model No.
Motor Power
Dimension(L*W*H)
Capacity
SD-400
2.2kw
1.64*0.9*1.0m
400kg
SD-1000
7.5kw
2.0*1.5*1.4m
1000kg
Xuchang Huarui Machinery Co., Ltd. Was established in 1990, mainly engaged in the R&D and manufactures nail making machine, waste tire recycling machine and auxiliary equipment.
After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. Has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are full automatic nail making machine, waste tire recycling machine, wire drawing machine, rebar straightening and cutting machine, CNC wire bending machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into all over the world, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
