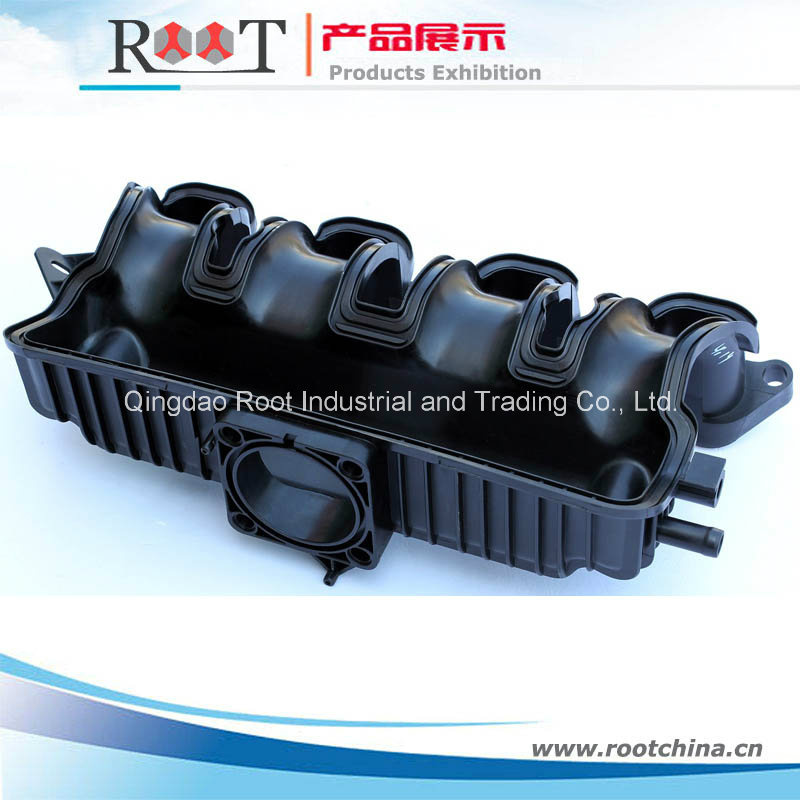

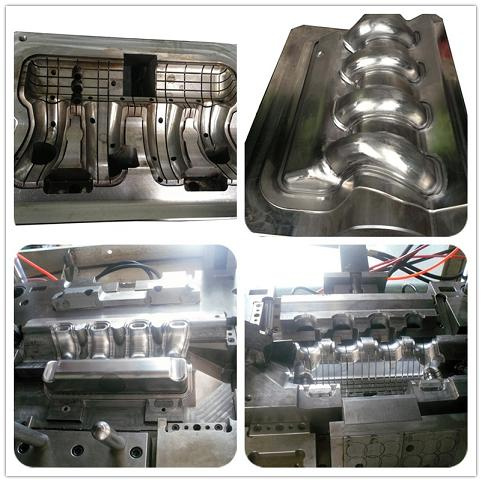

Automative Plastic Injection Mould Customized
| Price: |
US $ 6000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
RT-16091105 |
| Hot Runner: |
Yudo |
| Core Steel: |
Customized |
| Lead Time: |
60-90 Days |
| Injection Machine Size: |
780-1200 Tons |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Single-Process Mode |
| Application: |
Home Use |
| Installation: |
Fixed |
| Plastic Material: |
PA6+15GF |
Product Description
Specially serve for customized products, provide one-stop total plastics solutions, which include plastic components mechanical design, mold design, mold fabrication, plastic components manufacturing and secondary processing services.
Advantage:
1. With more than 10 year experience in exported mold, especially for automotive molds & household molds, certificated by ISO9001:2008
2. Professional marketing engineer & project engineer promoted from mold designer with rich technical knowledge.
3. 2-3days fast response for inquiry, simple or urgent inquiry can be replied in one day.
4. CAE analysis is available if necessary.
5. Exported about 100sets molds to USA & Europe.
6. In house strict quality control.
7. Fast and on time delivery.
8. All molds can work automatically.
Offered Service:
1. Weekly mold progress report with photos available.
2. Mold testing video/2D&3D drawings of mold provided before shipment.
| No | Equipment Name | Brand | Origial Place | Model No: | Working Stoke | Quatity |
| 1 | Wire Cutting | Sodick | Japan | AQ600L3 | 600X400 | 1 |
| 2 | Wire Cutting | Sodick | Japan | AQ360LXS | 360X250 | 1 |
| 3 | Wire Cutting | Fangzheng | China | / | 500X450 | 3 |
| 4 | EDM | Sodick | Japan | AM30LS | 320X250 | 1 |
| 5 | EDM | Jingda | Taiwan | D350 | 350X250 | 2 |
| 6 | EDM | Qunji | Taiwan | QJ-345 | 400X500 | 2 |
| 7 | Milling Machine | Xuzheng | Taiwan | / | 600X350 | 6 |
| 8 | CNC | Youhong | China | S1060 | 1000X600 | 3 |
| 9 | Polishing Machine | Zhunli | Taiwan | 618 | 350X200 | 4 |
| 10 | Polishing Machine | Yalida | Taiwan | / | 350X200 | 4 |
| 11 | Polishing Machine | Dejian | Taiwan | / | 300X500 | 1 |
| 12 | Cliper | Mitutoyo | Japan | / | 200mm | 6 |
| 13 | Micrometer | Mitutoyo | Japan | / | 200mm | 2 |
| 14 | Projector | Mitutoyo | Japan | / | 300mm | 1 |
RootChina has engaged approximate 20 professional engineers dedicated in mold design. Our design team engages in CAD, CAE and CAM design and formulation using computer software programs. We use CAD programs to generate 2D blueprints and 3D images, use CAE simulation to identify the optimal fabrication pattern, and then generate CAM computer simulation.
We invest in manufacturing equipment from Japanese and European manufacturers, such as Sodick and Makino.
With the advanced equipment and ten years' experience in the industry, RootChina is now offering our manufacturing services to a large and diverse customer base from various industries.

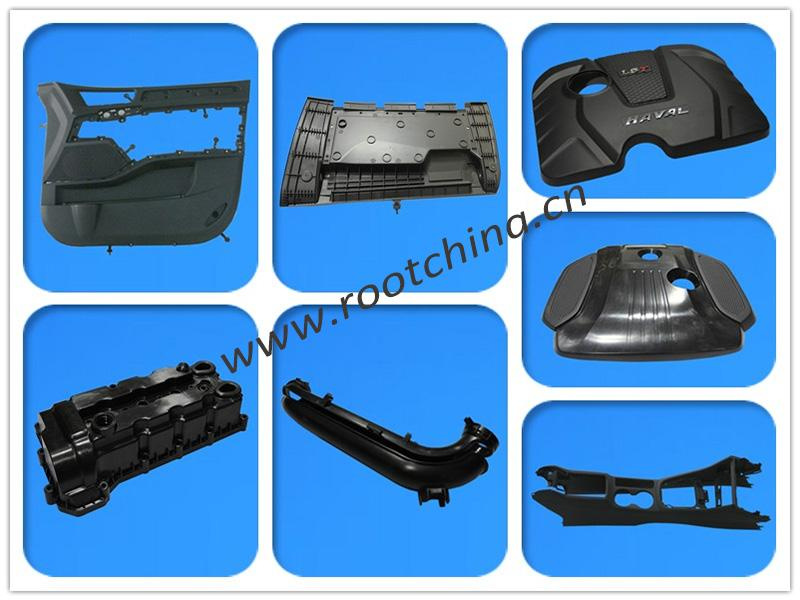

RootChina utilizes the plastic injection molding process to manufacture plastic components of products such as automotive, home appliance, smart phones, portable video game devices, teleconference phone terminals, portable computer memory devices and pachinko machines.
In accordance with our customer's needs, subsequent to design and fabrication of plastic injection molds and mechanical design and manufacturing of plastic components, Qingdao Root provides secondary processes such as spray-painting, printing, hot stamping, ultrasonic welding and assembly of plastic components.
