| Prod Model: |
A105/A105n/F304/304L/316/316L Forging Fittting |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description
Specifications
Carbon Stainless Steel Forged Pipe Fittings & Olets
Standard :ASTM / ASME
Outlet's :1/2" to 24" in 3000 LBS, 6000 LBS, 9000 LB
? We manufacture and export stainless steel and our range includes 15 NB to 100 NB in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75. High quality forged fittings & outlets in different sizes and specifications with wide range.
? We have earned a remarkable position in the market because of our impeccable quality forged fittings. Developed keeping the various requirements of our customers and market standards in consideration, our products are known for their high performance, durability and variety of designs and specifications. We can manufacture fittings as per drawings.
® Range: Forged Fittings 15 NB To 100 NB In 3000 LBS, 6000 LBS, 9000 LBS Available With NACE MR 01-75 in Stainless Steel, Duplex Steel, Monel, Inconel, Hastelloy, Titanium, Nickel Alloy, Etc
Outlet's ¼" to 24" in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

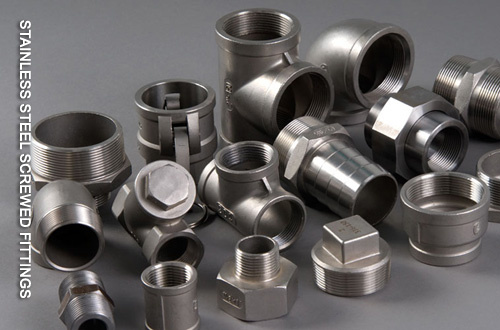

® Carbon & Stainless Steel Forged Pipe Fittings & Olets
® Forged Fittings :¼" NB to 4" NB in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.
® Outlet's :¼" to 24" in 3000 LBS, 6000 LBS, 9000 LBS
® Type :Socket Weld (S/W) & Screwed (SCRD)
® Form :Elbow 45 deg & 90 degree, Tee , Union, Full & Half coupling, Cross, Cap, Swage Nipple, Plug, Bush

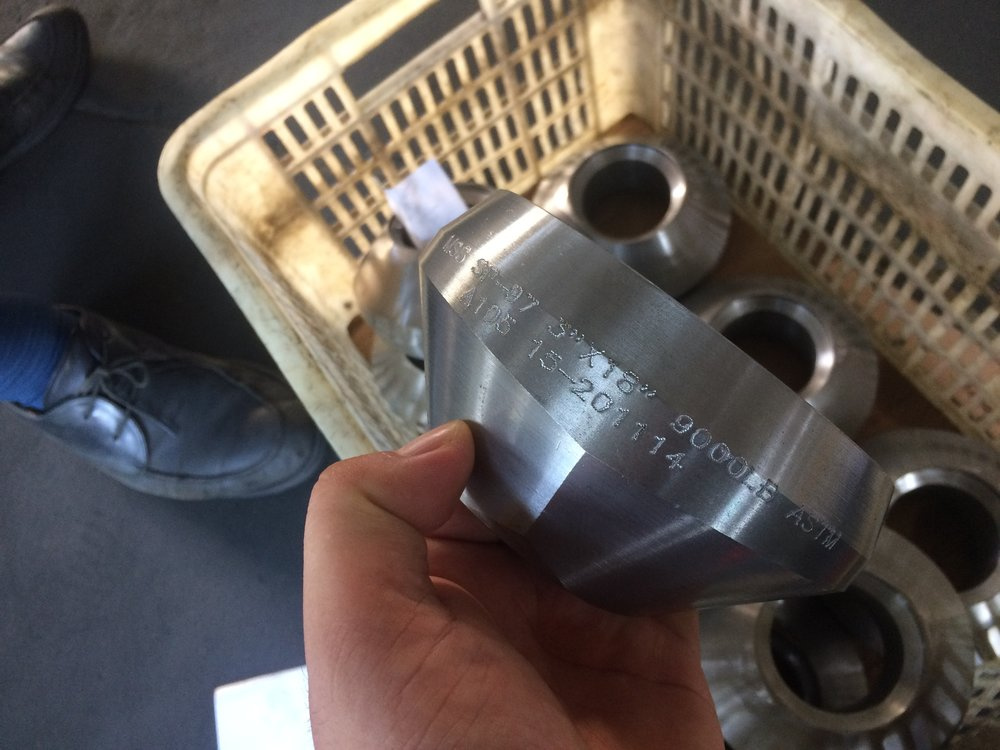

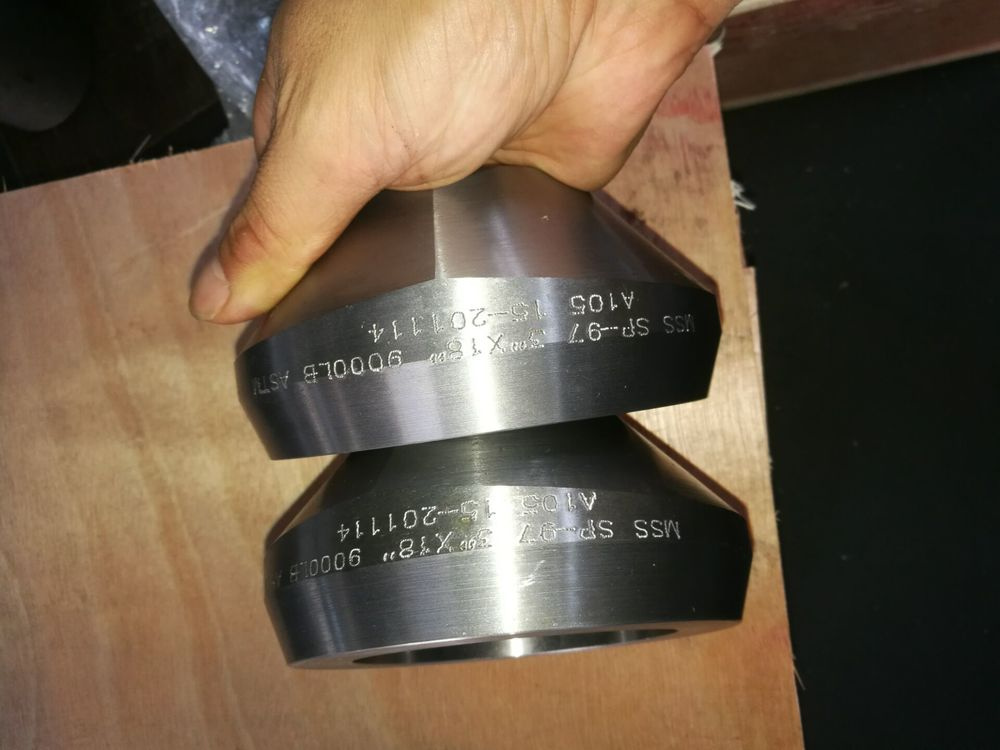

® Outlet's:Weldolet, Sockolet, Elbowlet, Thredolet, Nipolet, Letrolet, Swepolet
® Standard :ASTM / ASME A/SA 182
® Grade:F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L, A105, A105N, A350 LF2, A182 F5, F11, F22, F9, F91
Stainless Steel Forged Fittings and Outlets
Specifications
? Forged Stainless Steel Material conforms to ASME A182
? Forged Stainless Steel Fitting Dimensions conform to ASME B16.11
? NPT Threads conform to ASME B1.20.1
? Socket Fittings conform to ASME B16.11
? Forged Stainless Union conform to MSS SP-83
? Forged Stainless Outlets conform to MSS SP-97
? Forged Stainless SW Inserts conform to MSS SP-79
? Manufacturing Facility is ISO 9001-2000
Type | BUTT-WELDING, FORGED/CASTING THREAD SOCKET-WELD. | | Item | 90° ELBOW ( LONG RADIUS / SHORT RADIUS ), EQUAL TEE,45° ELBOW ( LONG RADIUS / SHORT RADIUS ), REDUCING TEE, ROUND CAP, CONCENTRIC REDUCER, ECCENTRIC REDUCER, STUB END | | Stainless Steel Material | ASTM A403 WP304 / WP304L / WP316 / WP316L / 316 Ti / 321 / 310 / 347 / 904L | | Carbon Steel Material | ASTM A234 WPB, WPC ASTM A105 | | Alloy Steel Material | ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 | | Dimension | ANSI B16.9 / MSS SP- 43 / JIS B2313 | | Thickness | SCH5S / SCH10S / SCH40S / SCH80S / SCH 120S | | Size | 1/2" - 48" | | Method | SEAMLESS AND ERW | | Make | Manufacturer & As per design & Specification |
|
C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.
Our production scope:
Butt weld Fittings:
Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312
Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc
Forged fittings: THREADED/SOCKET WELD
ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83
ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT
Flanges: ASME/ANSI/API JIS, DIN, EN/BS
Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,
We are also offering our customer a total soluation for the whole piping material packages
Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.
For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
