Product Description

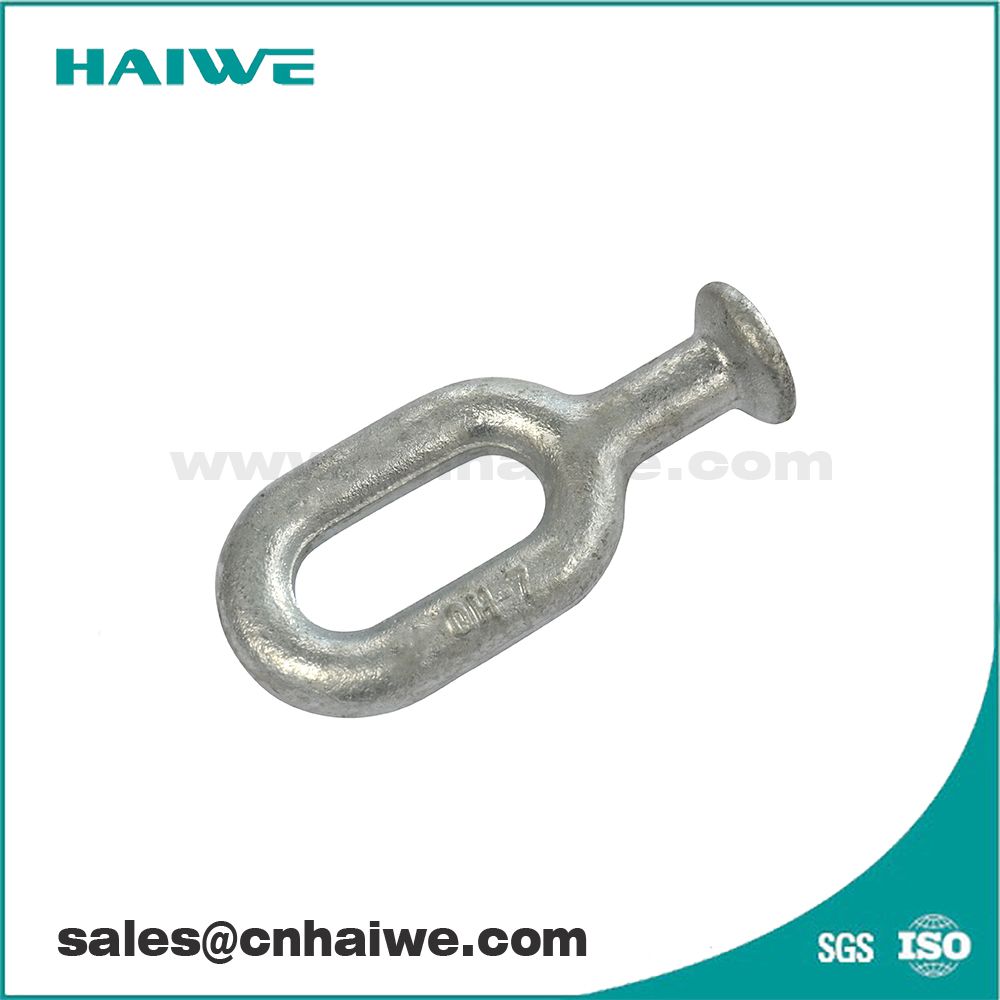

Ball-Head Shackle For Overhead Line Hardware
Material:
Hot-dip galvanized drop forged steel.
| Type | Dimensions(mm) | Rated Failure Load (KN) | Weight(kg) |
| B | D1 | D | R | Φ | H1 | H2 | H |
| Q-7N | 16 | 16 | 33.3 | 12.5 | 14 | 42 | 50 | 142 | 70 | 1.2 |
| Q-12N | 18 | 18 | 33.3 | 12 | 14 | 56 | 64 | 173 | 120 | 1.5 |
| Q-16N | 20 | 20 | 41.0 | 15 | 14 | 42 | 75 | 168 | 160 | 1.5 |
| Type | Link Marking | Dimensions(mm) | Rated Failure Load (KN) | Weight(kg) |
| B | D1 | D | Φ1 | Φ | H1 | H |
| Q-7P | 16 | 16 | 17 | 33.3 | 14 | 20 | 40 | 100 | 70 | 1.1 |
| Q-12P | 16 | 18 | 17 | 33.3 | 14 | 24 | 40 | 105 | 120 | 1.3 |
| Type | Catalog
No. | Link Marking | Dimensions(mm) | Rated Failure Load (KN) |
| C | D | D | M | H |
| QS-0755 | Q-7U | 16 | 20 | 17 | 33.3 | 16 | 75 | 70 |
| QS-1075 | Q-10U | 16 | 20 | 17 | 33.3 | 18 | 75 | 100 |
| QS-1275 | Q-12U | 16 | 20 | 17 | 33.3 | 22 | 75 | 120 |
| QS-1680 | Q-16U | 20 | 22 | 21 | 41.0 | 24 | 80 | 160 |
| | Q-21U | 20 | 30 | 21 | 41.0 | 27 | 102 | 210 |
| | Q-30U | 24 | 38 | 25 | 49.0 | 36 | 110 | 300 |
| QS-32120 | | 24 | 32 | 25 | 49.0 | 30 | 120 | 320 |
| Type | Link Marking | Dimensions(mm) |
Rated Failure Load (KN) |
| H | H | B | Φ | D1 | D |
| QPJ-07100 | 16 | 100 | 50 | 16 | 18 | 17 | 33.3 | 70 |
| QPJ-10110 | 16 | 110 | 50 | 16 | 20 | 17 | 33.3 | 100 |
| QPJ-12110 | 16 | 110 | 50 | 16 | 24 | 17 | 33.3 | 120 |
| QPJ-16120 | 20 | 120 | 55 | 18 | 26 | 21 | 41 | 160 |
| QPJ-21120 | 20 | 120 | 60 | 20 | 26 | 21 | 41 | 210 |
