Barmag Machine Fk6 1000 Textile Machine Yarn Cutter
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DHYC002 |
| Voltage: |
24VDC |
| Shred Instantaneous Current: |
<300mA |
| Shred Pull-in Current: |
160mA |
| Shred Ability: |
500d |
| Match Machine: |
Chemical Fiber Spinning Equipment |
| Material: |
Plastic |
| Certification: |
CE |
| Customized: |
Non-Customized |
| Condition: |
New |
| Classification: |
Yarn Cutter |
| Processing Type: |
Electric Board |
Product Description

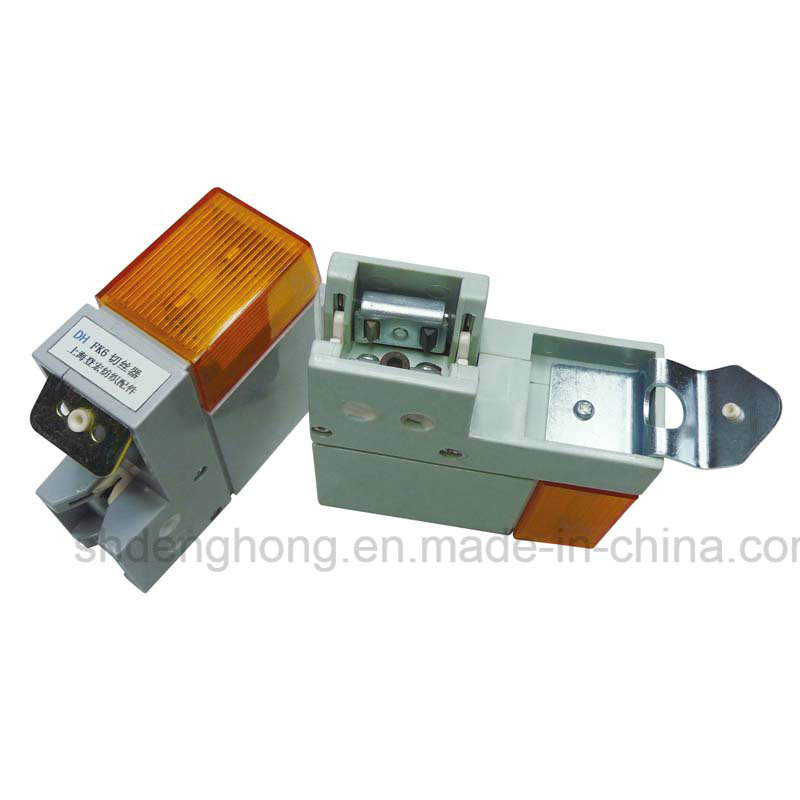

| ITEM | DHYC002 FK6 yarn cutter for Barmag cutter |
| Material | ABS Plastic,Nylon Housing |
| Working voltage | 24 VDC |
| Shred current | <300mA |
| Shred pull-in current | <160mA |
| Response time | 0.1 seconds |
| Shred ability | 500D |
| Guarantee | One year without operatio mistake |
| Origin | Shanghai, China |
| Application | Textile machine |
| | |
Features
- Compact construction
- Solid plastic housing
- Accurate cutting of yarn
Functions
In Chemical Fiber machine, fore-spinning machines, when the breakage of stoppage of one or more yarns are detected by the sensor, the sensor will give the operate on duty an alarm with a visible LED flaring signal. It will simultaneously send out an electrical signal to the yarn cutter in order to cut off the broken yarn and grip the cut end by the device attached to the yarn cutter itself.
In winding, spinning, twisting machines, the yarn should be cut off when the bobbin is full. The yarn cutter will work together with meter counter.
Working Principle
The yarn passes through the groove of the yarn cutter, led by two guiders. When the yarn stops moving or break, the yarn sensor sends out an electrical signal to order the yarn cutter to release the blade. The broken yarns will be cut off and gripped by the yarn cutter.
Company Information
Shanghai Denghong Mechanical & Electrical Manufacturing Co.,Ltd is the professional manufacturer of Various Yarn breaking detection sensor, Yarn cutter with about 10 years of experience, which have strong R&D and engineering capabilities. |
Packing details:
Samples are free, you only need pay the shipping fee.
Delivery time: Samples 1-3 working days and
Orders for 3-7 working days.Our srtongest point is that we consult. So anything you want to know about our products, please ask us!

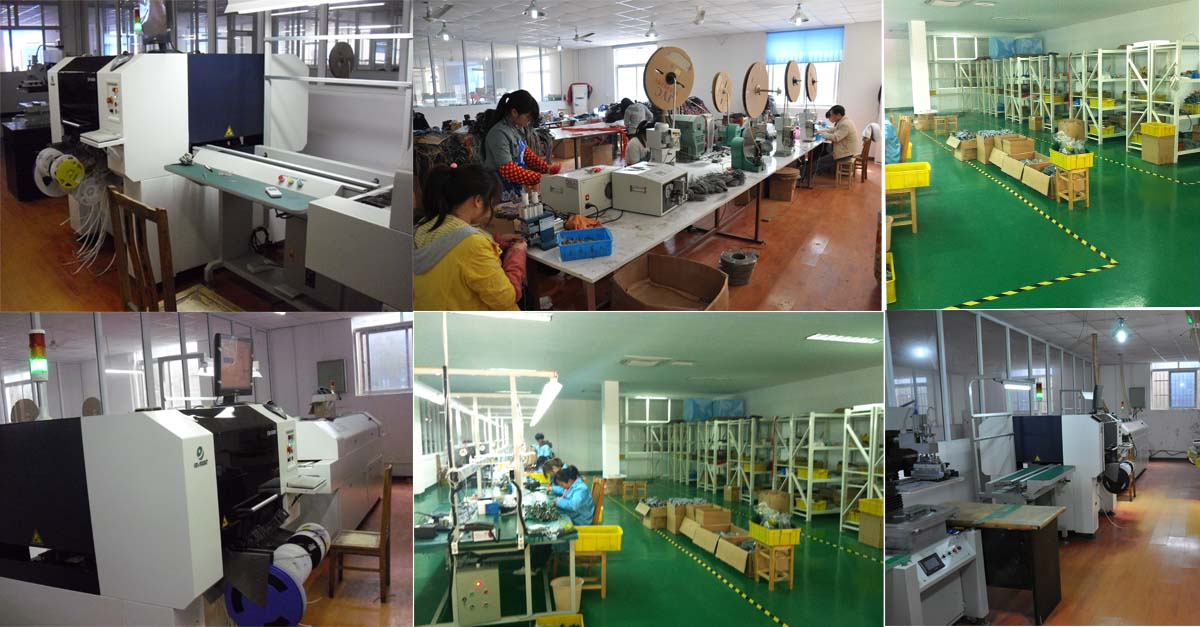

Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Old name: Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.
The main products of our company:
I. Yarn cutter: Suitable for various textile machines
II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor
III. Meter counter: Multi-Function and easy operation
Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.
With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers.
Shanghai Denghong Mechanical&Electrical Manufacturing Co., Ltd ( Shanghai Denghong Textile Accessories Co., Ltd) was established in 2004. After continuous development, we now have grown to be a competitive company in China. Independent abilities of production, sales and service make us win the trust and support from the clients.
The main products of our company:
I. Yarn cutter: Suitable for various textile machines
II. Yarn sensor: Capacitive yarn sensor and Optical yarn sensor
III. Meter counter: Multi-Function and easy operation
Our products are suitable for the imported chemical fiber textile machines (such as FK6 700 -1000TYPE, SDS, 33H, RPR, QDC, ICBT, and AFK), Fore-spinning devices (such as POY, FDY and HOY ), Elasticizers, Doubling Frames, Wining Frames and Covering Machines.
With first-class management, our company will continue to strive for innovation, high quality, and low-cost products. We will be in line with the principle of the supremacy of credibility to reward customers
