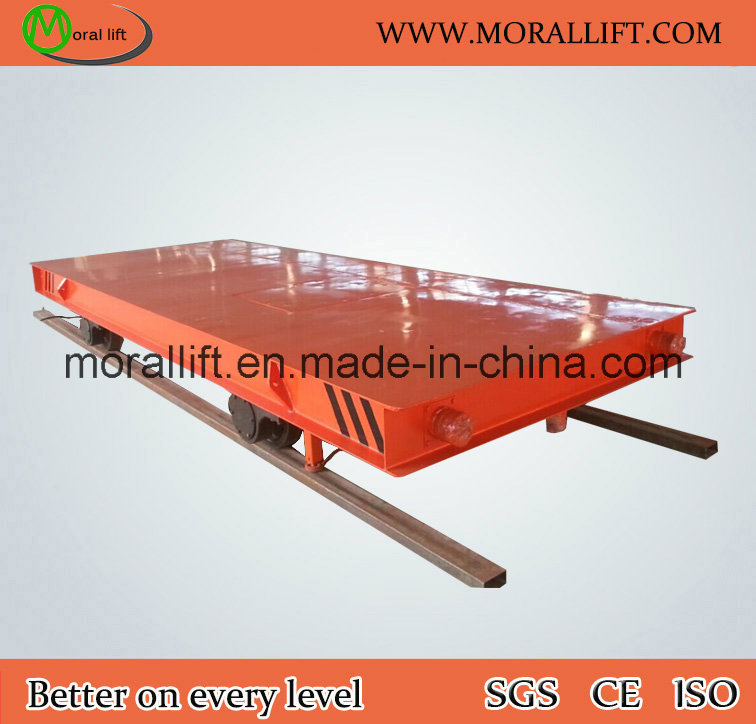

Battery Power Rail Transfer Cart
| Price: |
US $ 4000-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
KPX |
| Drive System: |
battery |
| Material: |
High Strength Steel |
| Control Method: |
Remote/Button Control |
| Load Capacity: |
20T |
| Table Size: |
4000*2200*550mm |
| Motor Power: |
2.5kw |
| Application: |
Industry, Shopping etc |
| Wheel Quantity: |
4 Pieces |
| Usage: |
Indoor/Outdoor |
| Colour: |
Blue Yellow etc |
Product Description
Battery Power Rail Transfer CartWorking principle:This kind of Rail Transfer Heavy Load Mover is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the "S"and arc-shaped railways.
Characters:
• KPX series are more safe and flexible.
• It has no strict requirement for the construction of the railway
• No limit of running distance
• Safe and convenient operation for there is no wire outside the car
• Adjustable speed
Suitable:The Rail Transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc
Parameters:| Model | KPX-10 | KPX-20 | KPX-50 | KPX-100 | KPX-150 |
| Rated Load(t) | 10 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 850 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1435 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 400 | 400 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 |
| Motor Power(kw) | 2 | 2.5 | 5.5 | 11 | 15 |
| Battery(v) | 48 | 48 | 48 | 48 | 48 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |

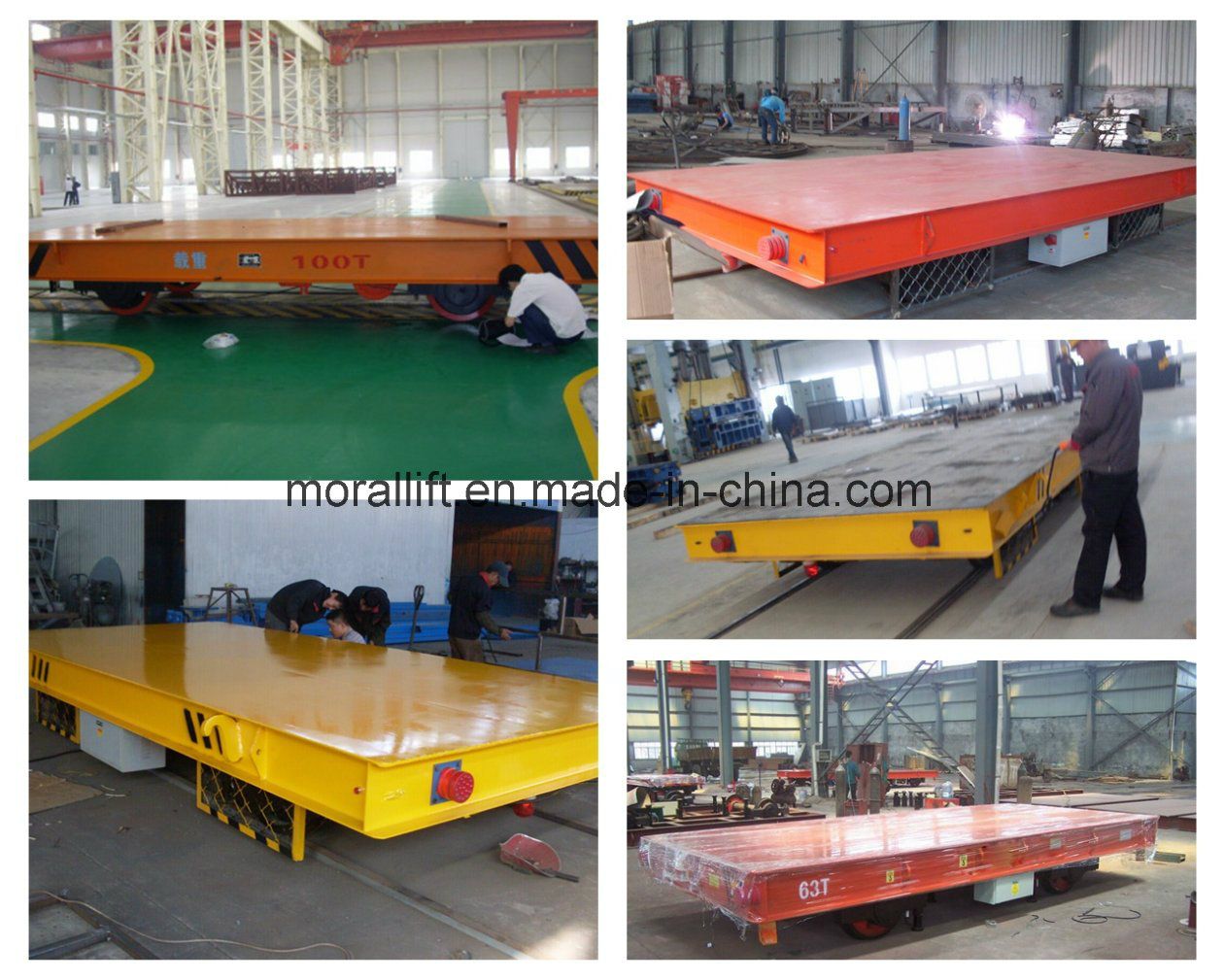

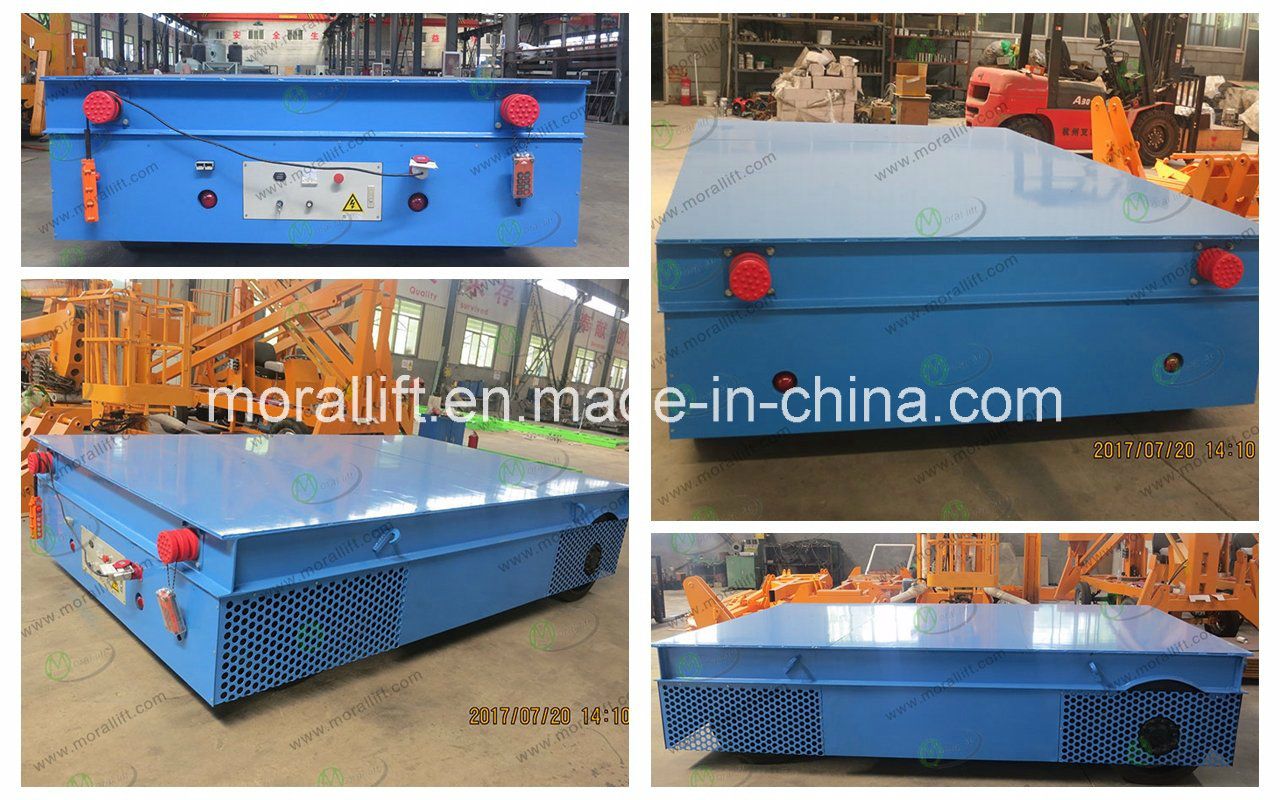

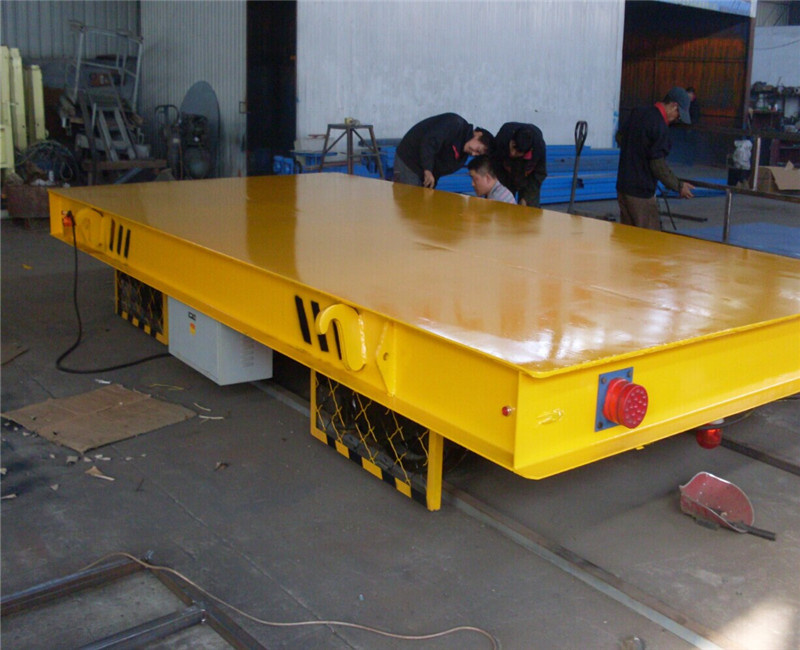

Production Show:
Trackless model(KPW series)
After sales1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.Our Services1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.FAQ1. MOQ?-1 set
2. Delivery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-acceptedBUYING TIPIf you are interested in our products, transfer cart, please provide the following parameters:1. Load capacity (kg)
2. Platform size (mm) The best price will be provided once the above confirmed!!!Company Information:Welcome to Moral Lift China, we are professional manufacturer of TRANSFER CART with good quality and low price. Our promise: Quality First, Customer Above. we have CE certification, we promise the best quality! we can customize for your every inquiry!Why choose us1. Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.
