| Prod Model: |
BXC |
| Product Name: |
Battery Transfer Cart |
| Usage: |
Heavy Duty Material Transportation |
| Application: |
Steel Industry, Factory, Warehouse, Port |
| Load Capacity: |
1-300 Ton |
| Power Mode: |
Battery |
| Warranty: |
12 Month |
| Customized Function: |
Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Control Mode: |
Pendant/Remote Controller |
| Color: |
Customized Color with Sign Line |
| Feature: |
360 Degree Turning Around |
| Certification: |
CE |
| Condition: |
New |
| Fuel: |
Battery |
Product Description
Battery power transfer cart for handling train bogies
1. Introduction of battery power transfer cart for handling train bogies
Our line of battery power transfer car is designed to accommodate the needs of a wide range of industries including steel, nonferrous metals, aluminum, automotive, stamping, heavy manufacturing and several others. These carts are designed to operate on floor or rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
All units are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons. In addition, our Electric Flat Trolley equipped with semi-automatic and fully automatic control systems come equipped with a wide range of fully automatic safety controls.

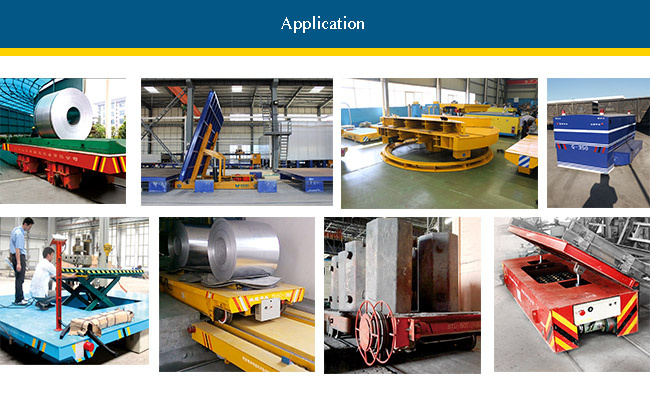

2. Application of battery power transfer cart for handling train bogiesWe conceives and manufactures a wide range of railway guided transfer carts, electric flat trolley, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
3. Parameter of battery power transfer cart for handling train bogies| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
4. CustomizedHenan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications.
5.What Surfaces Do It Travel On?The On-rail Flat Trolley is designed with flanged wheels and travels on rail. Most applications are on level surfaces; however, it is possible for carts to travel on inclines not greater than 4°.

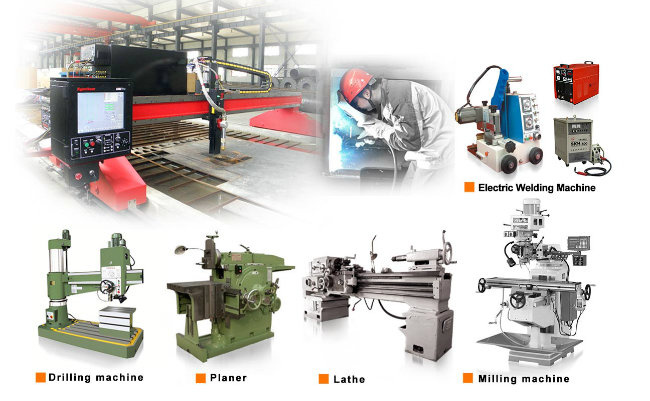

With steerable carts flat tread steel wheels (hardened tread surface) come standard and are fine for most concrete smooth to semi smooth floors. For non-marking epoxy floor systems, optional urethane wheels can be ordered (up to 20 ton capacity). Carts are not designed for uneven surfaces such as gravel, rough terrain, or badly cracked concrete floors.6.Processing technic of battery power transfer cart for handling train bogiesIt is conceivable to arrange these Electric Flat Trolley with remote control at automatic translation at inertial control. The self-acting cars increasingly being used in a wide range of manufacturing departments.It is possible to conceive and produce explosion proof battery powered transfer cars for hazardous areas zones, IECEX and ATEX (like oil and gas industry, off-shore platforms, painting rooms, coal-mining industry mines), for petroleum, gas and mining industries.
7. Factory and Transportation
Welcome to Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement.
Our product includes Industrial Trailers, Transfer Cars, electric railway transfer trolley, Scissor Lift Tables, Turntables and many other specialty items.
Every product is designed to meet the specific requirements of each client. Our special solution to the design of each product includes a detailed review of the client requirements, which is used to develop the Functional Specification of the product.
Working closely with you, we will incorporate our years of design experience into the final design of the product to assure complete customer satisfaction.
We have designed transfer cars for all kind of industries. Our versatility to manufacture this vehicles is proven by our experience and adaptations can be made according to our clients' needs and with clear commitment to meet them.
We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
