| Prod Model: |
HHYD-300G |
| Hydraulic RAM Output: |
6 Ton |
| Crimping Range: |
16 -300 mm2 |
| Voltage: |
18V 4.0ah Li-ion |
| Crimping Cycle: |
3-6s |
| Charging Time: |
2 Hours |
| Type: |
Crimping Pliers |
| Certification: |
SGS |
| Customized: |
Customized |
| Condition: |
New |
| Feature: |
Battery Type |
Product Description

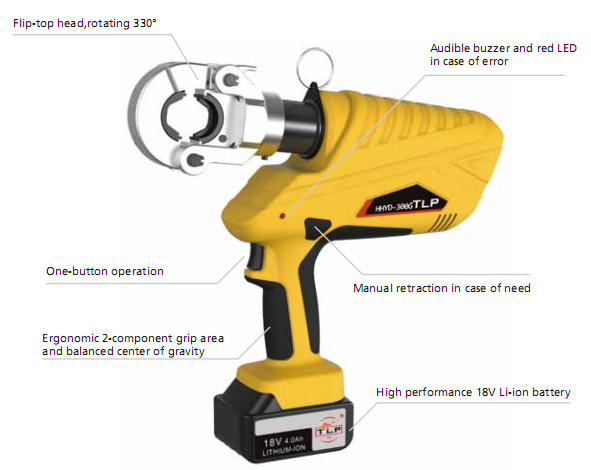

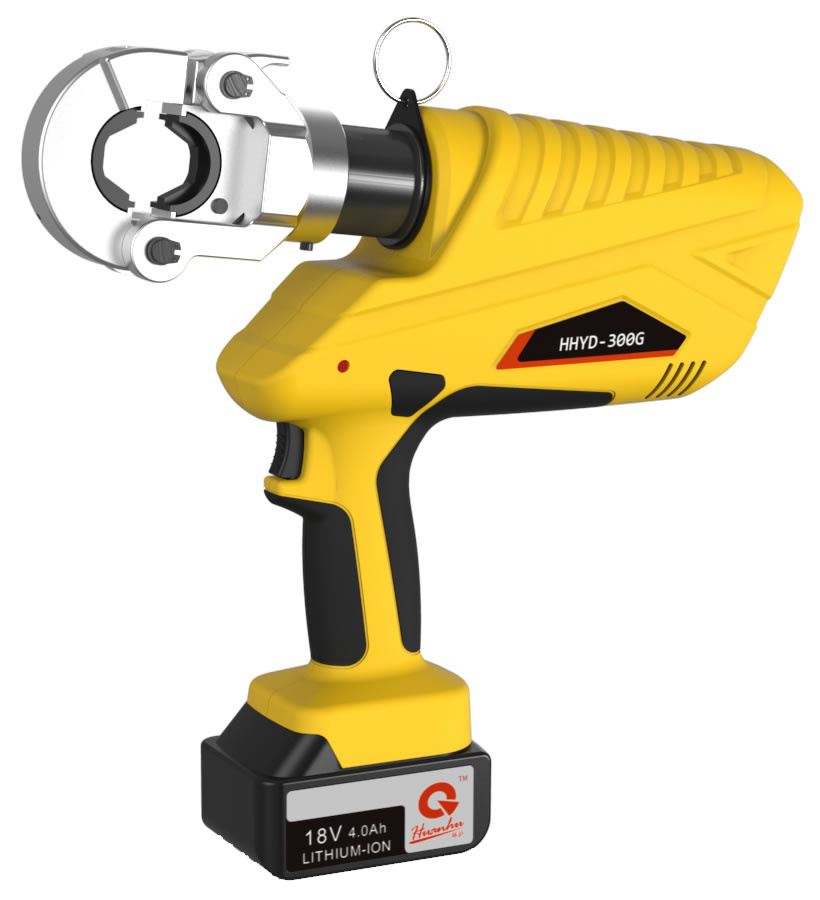

Battery powered hydraulic crimping tool
Compact design permits use in tight locations
Two-stage hydraulic systen features fast feed and power stroke upon reaching counter pressure,saving time
10000+ cycle service life
Ram retracts to original position automatically when operation is complete
Manual retracting in case of need
Audible buzzer and red LED light in case of error
Quick motor stop for higher user safety
Powerful 18V Li-ion battery with low battery warning
Ergonomic 2-component grip area and balanced center of gravity

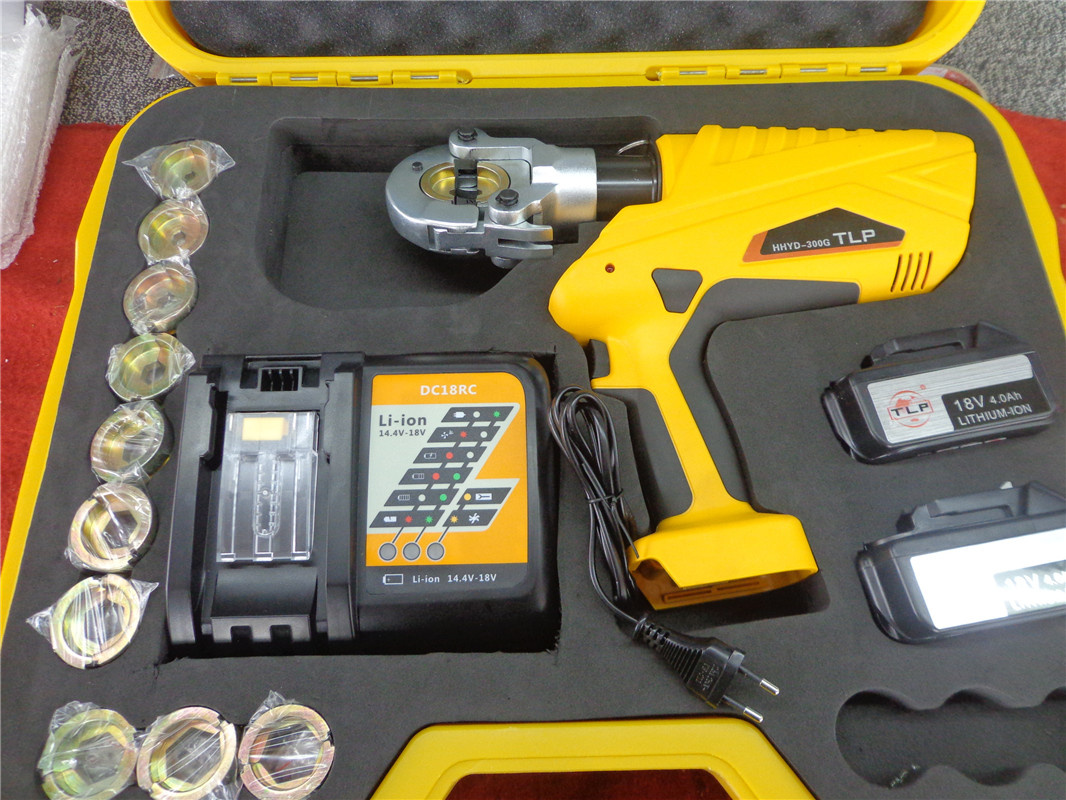

Sturdy plastic storage box
| Model | HHYD-300G |
| Hydraulic ram output | 6 Ton |
| Ram stroke | 17mm |
| Battery capacity | 380 crimping cycles |
| Crimping range | 16-300mm2 |
| Crimping times | 3s-6s(Depend on the size of cable) |
| Battery | 18V/4.0Ah Li-ion |
| Charging time | 2hours |
| Crimping dies | 16,25,35,50,70,95,120,150,185,240,300mm2 |
| Qty of battery | 2 pcs |
| Charger | 1 pcs |
| Seals for the cylinder | 1 set |
| Seals for the safety valve | 1 set |
