| Prod Model: |
HHYD-300G |
| Crimping Range: |
16 -300mm² |
| Type: |
Crimping Pliers |
| Certification: |
SGS |
| Customized: |
Non-Customized |
| Condition: |
New |
| Feature: |
Insulation |
Product Description

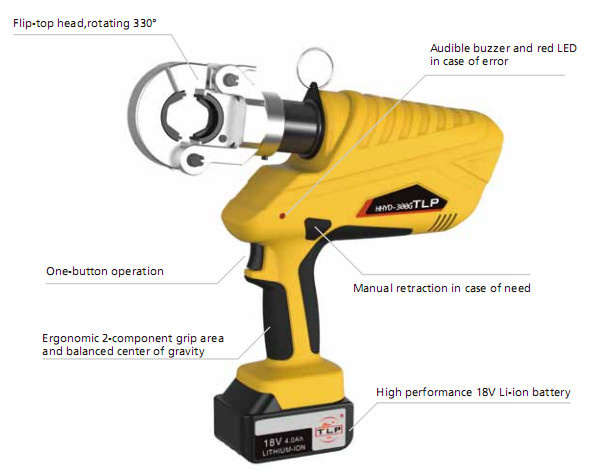

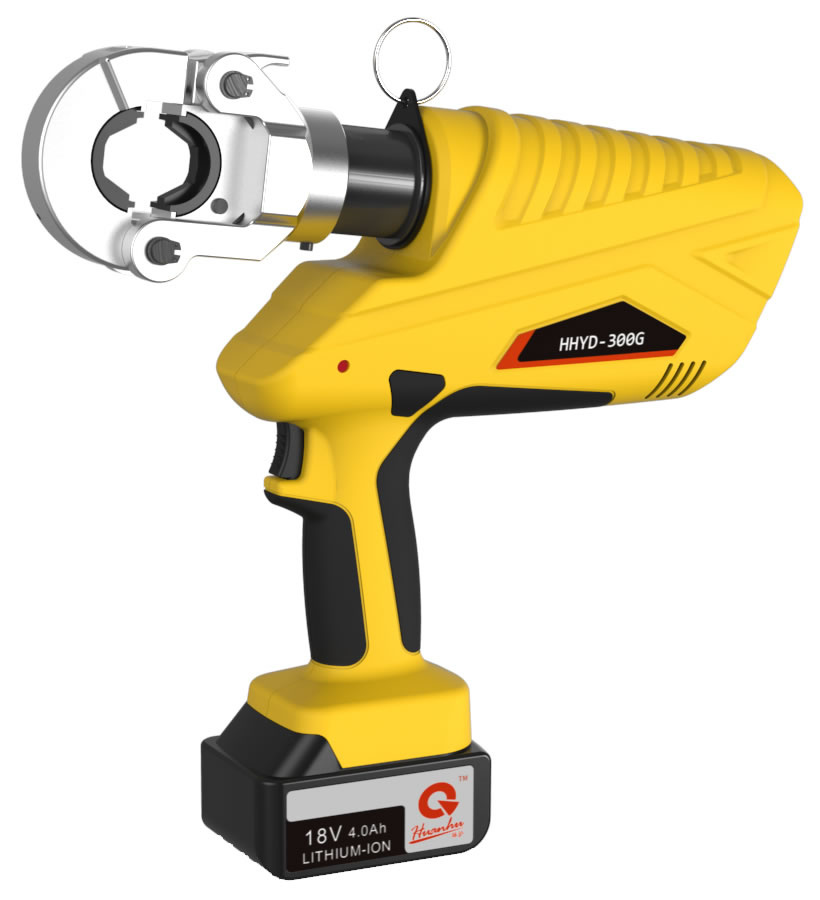

Battery powered hydraulic crimping tool
Compact design permits use in tight locations
Two-stage hydraulic systen features fast feed and power stroke upon reaching counter pressure,saving time
10000+ cycle service life
Ram retracts to original position automatically when operation is complete
Manual retracting in case of need
Audible buzzer and red LED light in case of error
Quick motor stop for higher user safety
Powerful 18V Li-ion battery with low battery warning
Ergonomic 2-component grip area and balanced center of gravity
Sturdy plastic storage box
| Model | HHYD-300G |
| Hydraulic ram output | 6 Ton |
| Ram stroke | 17mm |
| Battery capacity | 380 crimping cycles |
| Crimping range | 16-300mm2 |
| Crimping times | 3s-6s(Depend on the size of cable) |
| Battery | 18V/4.0Ah Li-ion |
| Charging time | 2hours |
| Crimping dies | 16,25,35,50,70,95,120,150,185,240,300mm2 |
| Qty of battery | 2 pcs |
| Charger | 1 pcs |
| Seals for the cylinder | 1 set |
| Seals for the safety valve | 1 set |
Established in 1997, Yuhuan Huanhu Machinery-Electric Tools Factory is an experienced manufacturer of hydraulic tools and machinery in Zhejiang, China. From the very beginning we focus on delivering high quality products as well as professional service to our customers.
With over 18 years development, we have set up an extensive product range that includes pipe benders, hydraulic cylinders, hydraulic crimping tools, hydraulic bearing pullers, hydraulic knockout punches, hydraulic busbar processors, hydraulic cable cutters, hydraulic pumps, etc. Benefiting from high and stable quality performance, the products have been sold worldwide and gained positive feedbacks from customers and users.
Now we're looking forward to creating even brighter future with domestic and overseas customers.
The Reasons to Work with TLP
Very broad product range
Over 18 years manufacturing experience
Guaranteed quality
Highly competitive price
Commitent to customer service
Professional sales and technical teams
Able to customize hydraulic tools for your special need
Advanced manufacturing facilities, strong
Technical forces and well-trained employees
Enable us to offer first class products to the
Markets.
Our entire production is carried out internally,
Without third party intervention, to enable
Optimum control of quality, cost and service
