| Prod Model: |
BZ-6B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crimping Range: |
Cu 240mm2 |
| Color: |
Blue |
| Crimping Force: |
60kn |
| Stroke: |
35mm |
| Crimping Cycle: |
3s-6s |
| Package: |
Plastic Box |
| Material: |
Stainless Steel |
| Usage: |
Cable Crimping |
| Standard: |
Standard |
| Structure: |
C Clamp |
| Brand: |
Zupper |

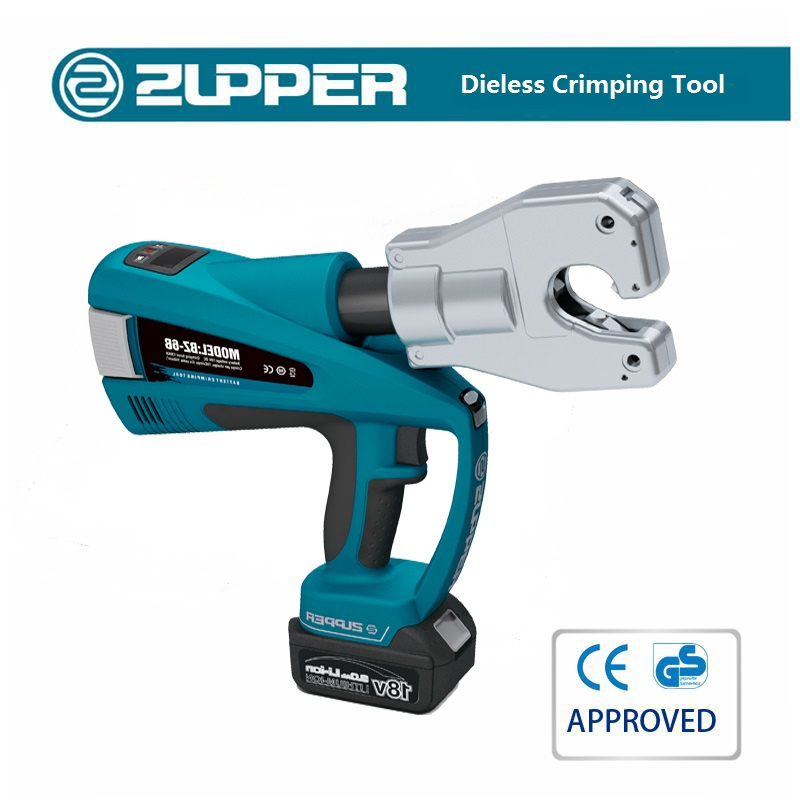

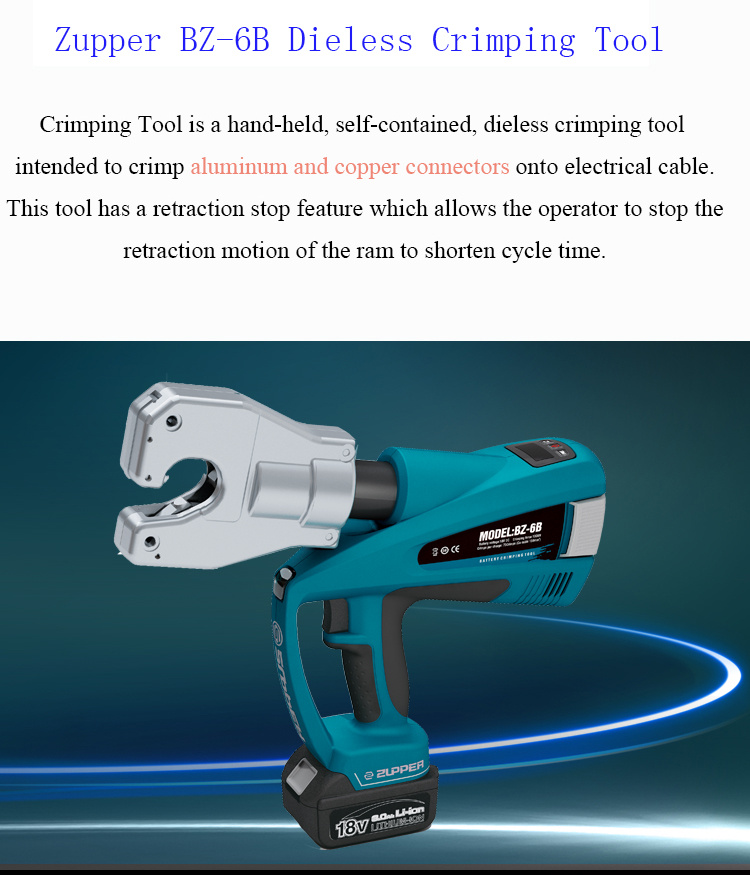

Product Description
1. No dies required, wide crimping
2. The connecting material centering automatically when crimping
3. All tools can be controlled by one key-press the trigger to start working, half loosing the trigger
Means stop forcing pressure, loosing fully means piston return to the original position.
4. LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by
The Display, also we can special making for customer to show the pressure if necessary.
5. Air Cooling Heat dissipation system to extend using.
6. Heads Rotates 350 degree in order to gain better access to tight corners or other difficult working areas.
7. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of
Non operation the tool is always ready to operate. In addition we see a lower power weight ratio with
50% more capacity and shorter charging cycles copare to NiMH batteries.
8. The unit is equipped with a double piston pump which is characterised by a rapid approach of the
Dies forwards the connector and a slow crimping motion.
| Crimping range: | Up to 240mm 2 |
| Crimping force: | 60KN |
| Stroke: | 35mm |
| Crimp/charger: | 250times(Cu 150mm 2 ) |
| Crimping cycle: | 3s-6s(depend on the sized of cable) |
| Voltage: | 18v |
| Capacity: | 3.0Ah |
| Charging time: | 2hours |
| Package: | plastic box |
| ACCESSORIES: |
| Battery: | 2pcs |
| Charger: | 1pc |
| sealing ring of cylinder: | 1set |
| sealing ring of safety valve: | 1set |
Taizhou Juli Tools Co., Ltd., a tool manufacturer established in 1983, has become the market leader for compression connectors, cutting tools, punching tools and etc. Under more than 20 years hard work, we have created the brand "TPT", "ZUPPER". For us it stands to reason that all our products comply with the highest quality requirements and represent the latest innovations.
We are ISO 9001: 2000 certified and gain CE certification. Modern Computer Aided Design and production facilities provide great potential for development and design performance. Continuous innovative development of our product range guarantees top efficiency. We strive daily for customer satisfaction. Experienced staff, modern and fast means of communication and proved logistics are our basis. We look very much forward to a further trustful and successful cooperation.
We produce most components by ourselves, it is started from cutting raw material, machining roughly in the first step. Casting, forging, punching, heat treatment, finish machining, painting, assembling and finally packing, we will spot check for each steps.

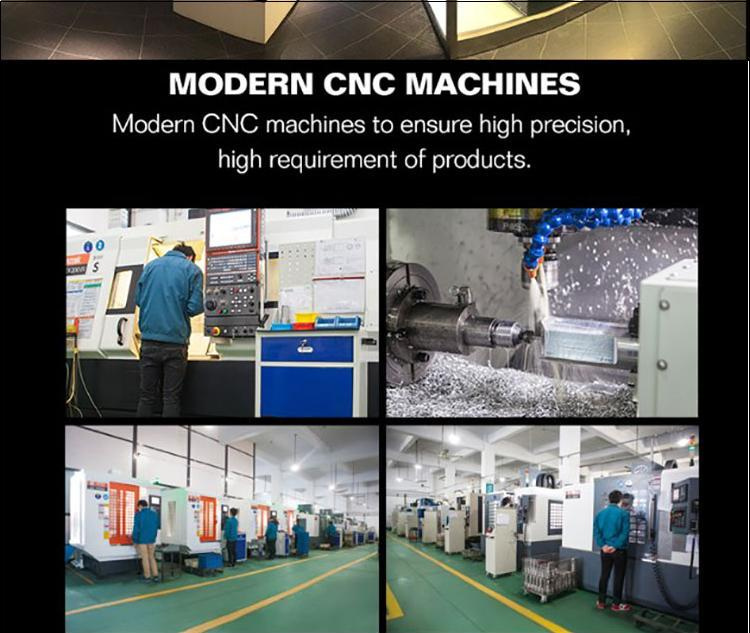

We take care to ensure optimized precision. The latest CNC machinesguarantee
Precision manufacturing for all the components of the tool. This ensures top quality,
Low cost and adequate availability. For us, just meeting the standard is not enough, in terms of safety. User friendlyapplication, all ZUPPER tools comply with highest specifications and excess ofthe standards required. We carry out ISO 9001 series, we get CE, GS certificates. We purchase the rawmaterial and spare parts with first-class quality and toguarantee that, we work long- term suppliers and inspect each batch to make sure all the material and components with high quality.
We meet your requirements backed by our 300 strong highly trained team.
Every year, we train our workers qualify our team to apply high skills to service you.
Now, we have two main types of tools, they are electrician tools and plumbing tools. We will attend different exhibitions every year, such as Canton Fair (twice per year), Kolon Fair in Germany, ISH in Frankfurt, Crocus EXPO IEC in Russia and etc, so we can communicate with you face to face by these exhibitions, we are looking forward to a further trustful and successful cooperation.
If you want to know more information about our products welcome to contact us at any time, and welcome to our company!
