Bearing Bushing Made of Babbitt Alloy, to Map Custom
| Price: |
US $ 25-5016 |
| Min Order: |
116 |
| Pay Type: |
L/C,T/T |
Product Description
What is a Babbitt Bearing?
Babbitt bearings are found on motors, fans, pumps, turbines generators, Crusher equipment, Ball mill equipment and other industrial equipment. The bearings are designed to support the weight of the shaft, while providing a non-damaging surface for the high speed rotating shaft. In a Babbitted bearing, the lining of the bearing is bonded with Babbitt (a low melting-point, soft alloy). In the event of a failure or contamination of the lubrication system, electric arcing, or just wear over time, the softer Babbitt alloy wears instead of the journal or shaft.
While nearly all Babbitt bearings are used in oil-lubricated systems, they have different design features depending on shaft speed, bearing load, shaft stability, bearing cooling, alignment problems and electrical insulating requirements, load and speed. Bearings can be fitted with vibration and temperature sensors and can even be water cooled as needed.
Babbitt bearings are a reliable part of equipment which runs for years and requires little maintenance and attention.Babbitt information !!!
Tin-based Babbitt (#2) is approximately 89% tin with the remainder being antimony and copper. The hardness of this alloy gives excellent load-carrying characteristics.
Lead-based Babbitt (#7) is 75% or more lead. Conventional lead-based Babbitt contains antimony and tin, which greatly increase the strength and hardness of lead. This alloy is fully adequate for lower loads and moderate temperatures.
company profile !!!

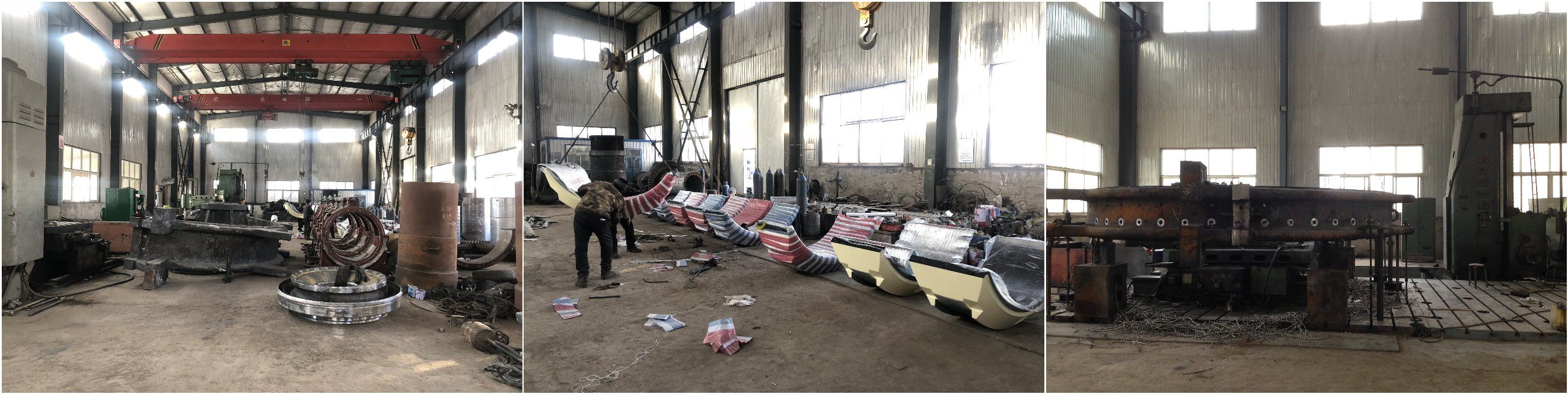

Chaoyang Runxing Heavy Machinery Bearing Factory was established in 2000. The factory is located in Dongsanjia Village, Chaoyang Development Zone and covers an area of 10,000 square meters. There are 30 workers in the factory, including 3 senior engineers, 5 mid-level engineers, middle-level professional and technical personnel 10 people.
Our main products are main bearings, Slide bearings, thrust bearings, bushings, gear transmission components, crusher parts supporting China's mechanical and electrical equipment bearings professional enterprises, after more than 10 years of development and growth, is China's larger private-owned manufacturing enterprises.

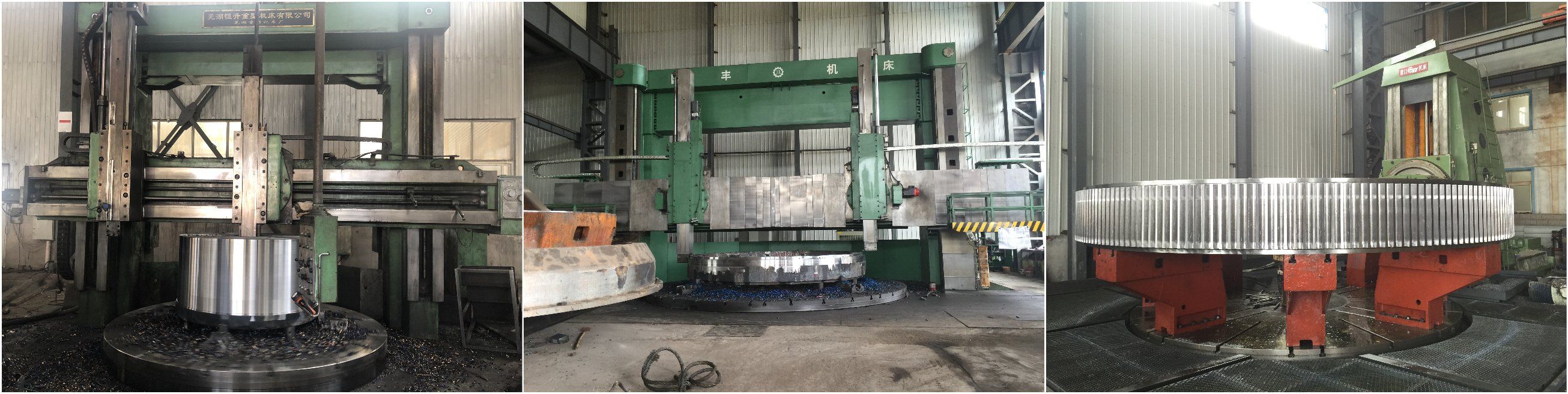

Products supporting the building materials, heavy machinery, electricity, metallurgy, mining and other machinery manufacturing enterprises, not only equipped with the equipment of China's electromechanical enterprises, but also supporting exports to Asia, Africa, the Americas and other places. Our factory has an independent alloy casting process and processing technology and reliable quality assurance system. By the user's trust, products in the same place in the industry, is a collection of Northeast production, processing and sales of private enterprises.
I plant adhering to the short cycle, high-end product quality, preferential prices and sincere service attitude and dedication to provide our clients with timely and thoughtful service.

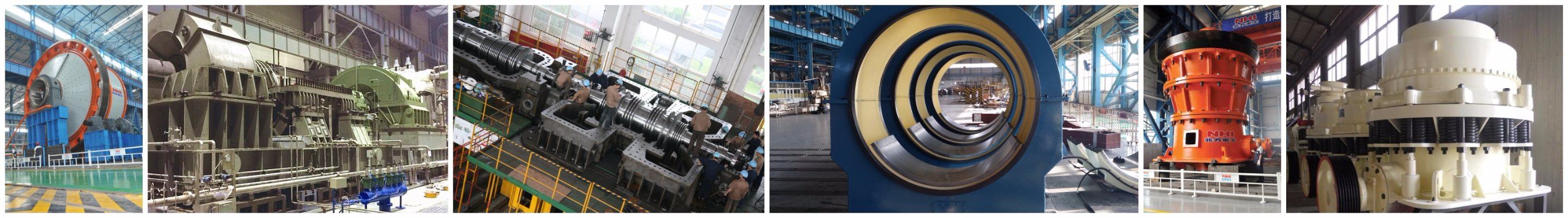

Partners and success stories
Chaoyang Run Xing heavy machinery Bush manufacturing plant was built in 2005. The factory area is located in the seven street, Quan Zi Nan village, Longquan street, Chaoyang development area. It covers an area of 10000 square meters, and the whole factory has 30 employees, including 3 senior workers, 5 intermediate people, and 10 professional technical talents.
Our main products are bearings, bearing liners and sliding bearings. They are professional enterprises supporting the bearing of China's electromechanical equipment. After more than twenty years' development and growth, our main products are large scale mill bearing bushes. The products are covered by building machinery, heavy machinery, power, metallurgy, mining and other machinery manufacturing enterprises, not only equipped with the equipment of China's electromechanical enterprises, but also exported to Asia, Africa and the Americas. Our factory has an independent alloy casting technology and processing technology and a reliable quality assurance system. With the trust of the users, the product occupies a place in the same industry. It is a private enterprise in the northeast of China, which integrates production, processing and sales in one.
Our factory is committed to providing timely and thoughtful service for the majority of users with short cycle, high-end product quality, preferential product price and sincere service attitude.
