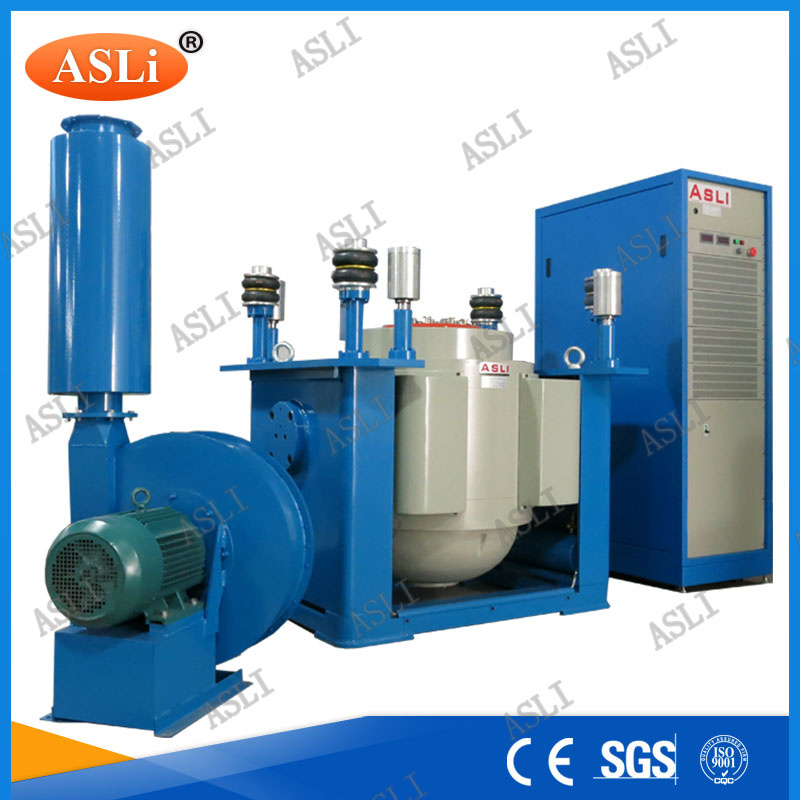

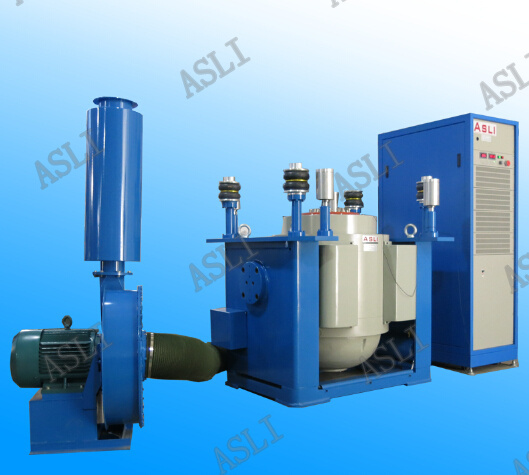

Best Electric Horizontal Vertical & Shock Vibration Test System
| Price: |
US $ 6894-25000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
ES-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Asli |
| Power: |
Electronic |
| Slideway: |
Imported |
| Package: |
Standard Wooden Case |
| Size: |
Our Standard Size or Customzied |
| Delivery: |
15-20 Days |
| Type: |
Testing Machine |
Product Description
27 years experience
OEM accepted
Reasonable price
Fast Delivery
Good-after sales
Application:
We are manufacturer of Horizontal + Vertical Vibration High Frequency Vibration Test Bench series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance', 'trunnion isolation' advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
High Frequency Vibration Test Bench Technical Parameters:| Model | Rated Sine
Force (N) | Rated Random
Force (N) | Frequency
Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement
(p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of
Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Horizontal + Vertical Vibration High Frequency Vibration Test Bench Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

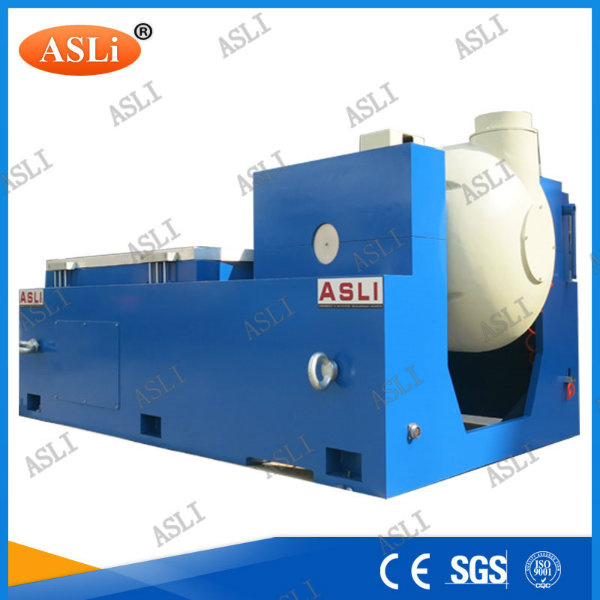

horizontal stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
technical parameters of horizontal expander:| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22
300×300×26
300×300×30 | 5-1000
5-1500
5-2000 | 6.6
7.8
9.0 |
| LT0404 | 400×400×22
400×400×26
400×400×30 | 5-l000
5-1400
5-2000 | 11.2
13.2
16.0 |
| LT0505 | 500×500×25
500×500×30
500×500×35 | 5-1000
5-1500
5-2000 | 19.3
23.1
27.0 |
| LT0606 | 600×600×25
600×600×30
600×600×40 | 5-1000
5-1200
5-2000 | 27.5
33.0
45 |
| LT0707 | 700×700×25
700×700×30
700×700×35 | 5-800
5-1000
5-1500 | 36.8
44.2
52 |
| LT0808 | 800×800×30
800×800×40
800× 800×45 | 5-1000
5-1500
5-2000 | 57.7
76.9
86.5 |
| LT 1010 | 1000× 1000×30
1000× 1000×40
1000× 1000×50 | 5-1000
5-1300
5-1500 | 89.1
118.8
147 |
| LT 1212 | 1200× 1200×30
1200× 1200×40
1200× 1200×50 | 5-800
5-1100
5-1400 | 126
168
210 |
