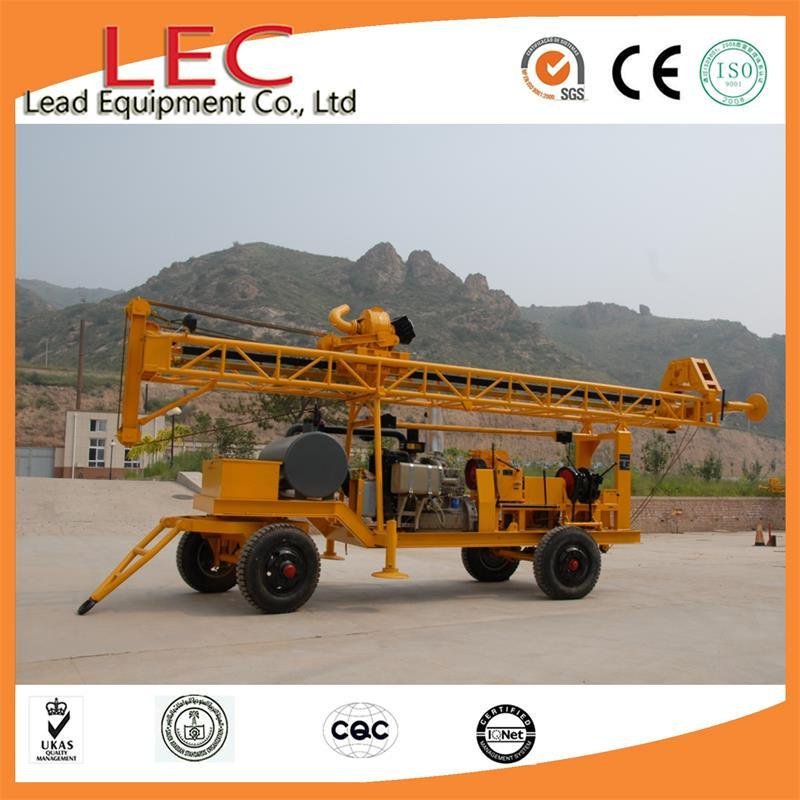

Best Selling Power Head Drill Well Drilling Machine
| Price: |
US $ 36000set |
| Trade Terms: |
EXW |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GSD-IIA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drill Depth: |
300m |
| Drilling Method: |
Normal&Reverse Circulation for Air&Mud Drilling |
| Overall Dimension: |
9100*2000*3000mm |
| Weight: |
5400kg |
| Application: |
Water Conservancy Project, Deep Well Drilling |
| Performance: |
Good Quality, High Efficiency |
| Color: |
Customized |
| Warranty Period: |
1 Year |
| After-Sales Service: |
Engineers Available to Service Machine |
Product Description
Best Selling Power Head Drill Well Drilling Machine
Feature
1. Drill head style with large torque and lifting force;
2. Multiple purposes and multiple functions drilling;
3. Large drill head inside diameter available for many robs;
4. It can drill with mud drilling and air drilling method;
5. Special designed rod structure makes it easy to connect and disconnect;
6. Easy operation and maintenance, high reliability and long service life;
7. Modular design appropriate rods and pumps provided for clients.
Application
1. Drilling wells for urban and rural life.
2. Drilling wells for agricultural irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling geothermal pump wells.
Technical data| Model | GSD-IIA |
| Drill hole diameter (mm) | 90-1200 |
| Hole depth (m) | 300 |
| Drill rod length (m) | 3-6 |
| Drill rod diameter (mm) | φ73,φ89,φ95,φ133 |
| Inside diameter of power head(mm) | Φ35,φ60,φ80,φ120 |
| Dimension(mm) | working:5900*2000*8460 |
| (L×W×H) | transporting:9100*2000*3000 |
| Weight (kg) | 5400 |
| Drilling method | Normal and Reverse circulation for both Mud&Air
drilling |
| Power head lifting speed (m/s) | 0.37, 0.16 |
| Power head lifting force(kN) | 18 |
| Main Hoist Lifting Force(T) | 3 |
| Feed thrust (kN) | 2 |
| Power head rotating speed (r/min) | A(Normal:14-23-52-84)( reverse:8-13-29-47) |
| B(Normal:32-52-116-168)( reverse:18-29-65-106) |
| Mud pumps | LBN20 Normal and Reverse circulation pump group |
| Flow (m3/h) | 80 |
| Power | Diesel engine |
| Rated power (kW) | 49 |
| Supporting form | Hydraulic Unit |
| Mask up-down | Hydraulic Unit |
| Chassis | Trailer-type with four wheels |
