Beverage Drying Anodizing Aluminium Alloy Air Knives
| Price: |
US $ 97-115/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SCB-600-AL |
| Design: |
Coanda Effect with Fluid Design |
| Kind: |
Aluminium Alloy Air Knife |
| Material: |
Stainless Steel & Aluminium Alloy |
| Type: |
Air Spray Equipment |
| Application: |
Hardware Spraying Equipment |
| Certification: |
TUV / CCC |
| Method Type: |
Automatic |
Product Description

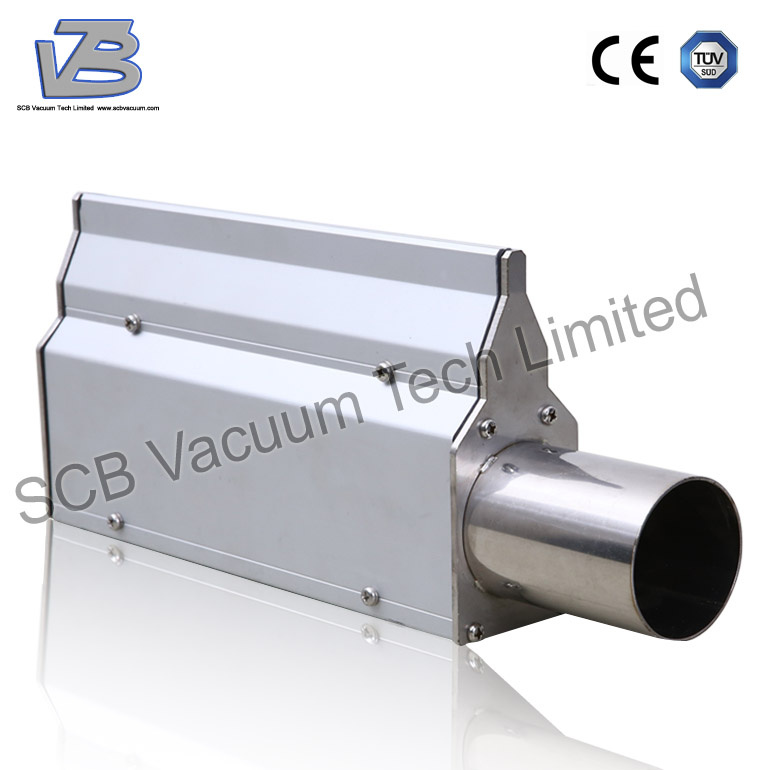

Beverage Drying Anodizing Aluminium Alloy Air Knives
SCB air knife is a 150-3000mm equipment made by aluminum alloy or stainless steel material, it is widely used in ultrasonic cleaning, glass cleaning, metal plate, all kinds of circuit boards conveyor belt, beer/ drinks/ canned etc. different industries water and dust cleaning and drying.
- Advantages:
1.Outlet is adjustable (0.3mm-3mm).
2.Aluminium Alloy material have Hard anodic oxidation treatment, SS304/316 material enjoy the acid and alkali resistant, both enjoy high efficient and save energy.
3.Designed according to the aerodynamics with small wind resistance and symmetrical speed.
4.The max borne pressure is 5kgf/cm2, and speed reaches 400m/s.
5.Hot air is available, temperature can bear 250ºC.
6.Air knife can be used for blowing water, water curtain, drying, reduce the loss of cold / hot air.
7.Using with our centrifugal blowers, the efficient will be much better.
8.Length can be customized, consider the transportation usually length will be controlled within 3000mm long.
At present, SCB has stainless steel air knife, aluminum alloy air knife, coanda effect air knife (water-drop type), spider air knife, super air knife, ring air knife, jet air nozzle and so on. Completely kinds of air knife can meet all different kinds of applications.
- Attention:
1.The air knife effective length is the body length, not including the inlet.
2.Please avoid collision for the air knife edge during using. The air shouldn't have much thick dust, or will obstruct or damage the air knife.
3.Air knife outlet was completely made as standard before leave factory (except the special request).
If need to change, please contact SCB team or consult the professional person. | Standard Size for AL and SS Material |
| Model | Inlet (Inch) | Outlet (mm) | Length (mm) |
| SCB-150-AL/SS | 1, 2, 3, 4 | 1 | 150 |
| SCB-300-AL/SS | 1, 2, 3, 4 | 1 | 300 |
| SCB-450-AL/SS | 1, 2, 3, 4 | 1 | 450 |
| SCB-500-AL/SS | 1, 2, 3, 4 | 1 | 500 |
| SCB-600-AL/SS | 1, 2, 3, 4 | 1 | 600 |
| SCB-800-AL/SS | 1, 2, 3, 4 | 1 | 800 |
| SCB-900-AL/SS | 1, 2, 3, 4 | 1 | 900 |
| SCB-1000-AL/SS | 1, 2, 3, 4 | 1 | 1000 |
| SCB-1500-AL/SS | 1, 2, 3, 4 | 1 | 1500 |
| SCB-2000-AL/SS | 1, 2, 3, 4 | 1 | 2000 |
etc.
- Applications:
1. Electronics: PCB, FPCB, LTD/TFT industry blowoff water and drying
2. Pipe Indstry: Steel tube in addition to water/dry, static electricity suppression
3. Semiconductor industry: PBGA, FBGA, SBGA, TBGA etc.
4. Automatic industry: engine parts etc. drying
5. Building Materials: Removing dust, water
6. Food industry: all kinds of food, fresh water drying
7. Mdeical Devices
8. Pharmaceutical industry: Removing and drying water or oil, doing transfer
9. Dust-free Plant: removing the dust before enter into the workshop
etc.
