Prod Model: |
GYG-1200 |
Automatic Grade: |
Semi-Automatic or Automatic |
Dimension: |
1400mm*470mm*850mm |
Weight: |
600kgs |
Currenct: |
29apm |
Grinding Head: |
8 |
Grinding Blades: |
24 |
Lead Time: |
20 Days |
Voltage: |
380V 3 Phase 50.60Hz |
Motor Type: |
AC Motor |
Condition: |
New |
Type: |
Concrete Grinding Machine |
Motor Power: |
20HP |
Materials: |
Concrete Ground |
Product Description

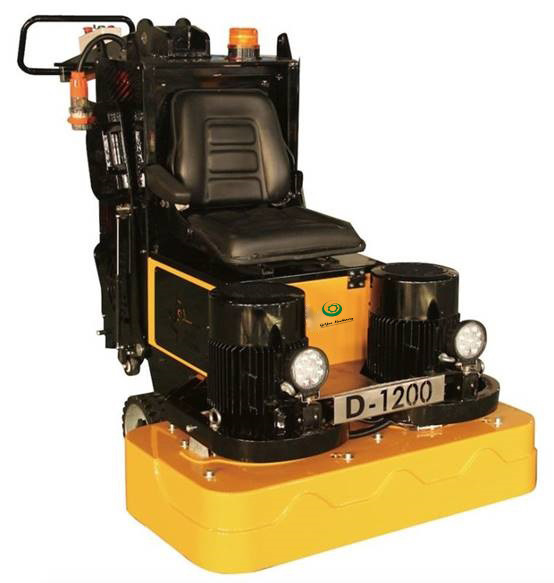

Big power 1200mm Grinding Width Ride-on floor grinding machine
Description:
Concrete floor grinders are ideal for floor surface preparation and renovations. Levels uneven concrete surfaces and
removes paint, traffic lines, fibreglass, expoxy and adhesives. ideal for smoothing out rough concrete finishes caused
by rain splatter and poor trowelling.
Our planetary concrete floor belt grinder are ideal for:
Removing adhesive residues, mastics, epoxies, urethane, paint and thick coatings
Smoothing or flattening concrete slabs-including curled expansion joints
Removing surface imperfections and contaminants
Our powerful diamond grinders and polishers use horizontally rotating disks to level, smooth and clean concrete surfaces.
The equipment is specifically designed for the rigors of commercial/contractor use, with powerful motors for increased
air flow, heavy duty filters, and components that are protected from dust and debris for longer life.
Our machines' HEPA filtered vacuums offer a virtually dust-free and comfortable work environment. Particulate and dust
can get everywhere, so we set up with floor wands and magnetic brooms, as well as negative air, to create an environment
free of contaminants. It's a safer, cleaner way to work and it maximizes our productivity.
Spotting a Planetary Grinder

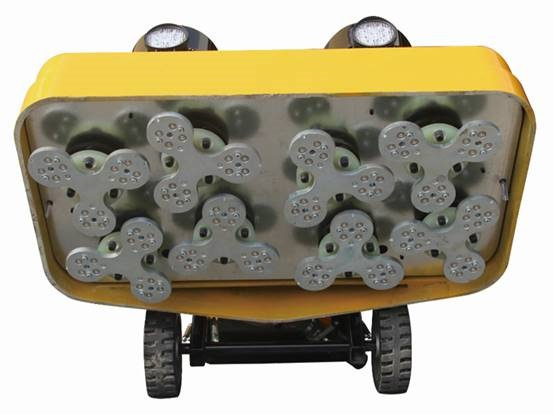

The base of a planetary grinder consists of a large main disc. Three smaller discs mount to the main disc, and these
smaller discs turn at a different speed than the main disc. The smaller discs all lie along the same plane and make contact
with the floor simultaneously, while the larger main disc lies on a different plane and does not make contact with the floor.
Planetary Grinder Applications
Planetary grinders are generally the more lightweight of the two types of concrete floor grinders, making them easier to manipulate. Their design allows them to move in a straight line across the floor with relative ease, which means greater flexibility and less struggle for operators. Thanks to their lightweight design, planetary grinders work best on less aggressive jobs, such as smoothing out a concrete floor or preparing a residential garage floor for an epoxy coating. They can also be
used for polishing but generally require a skilled operator for this type of work.
Model | GYG-1200 |
Operation | RIDE-ON |
Motor | 20HP |
Power source | 380V |
Current | 29amps |
Rotating speed (small plate) | 0-1800rpm |
Rotating speed (Big plate) | 0-300rpm |
Weight | 600KG |
NO. Of grinding pads | 24 |
Grinding heads | 8 |
