| Prod Model: |
P6 |
| Size: |
500mm*500mm |
| Factory: |
OEM, ODM |
| Cabinet Material: |
Die-Casting Cabinets |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
CCC |
| Pixel Pitch: |
6.25mm |
| Pixel Density: |
25600 |
| Scanning Mode: |
1/5 |
Product Description

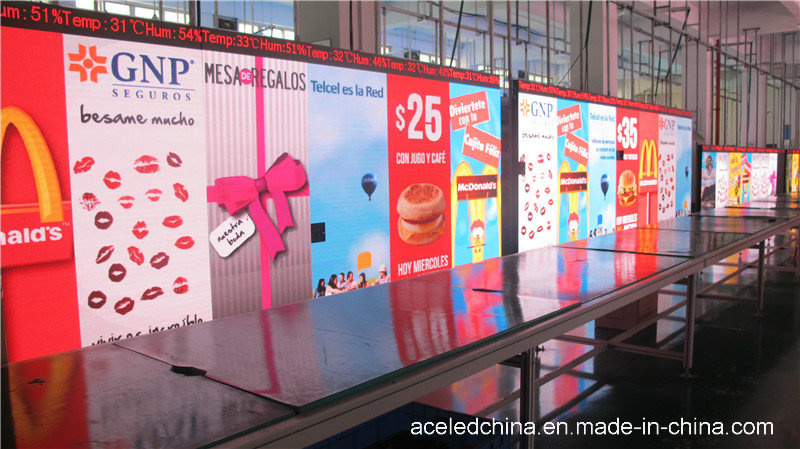

P6.25 Rental SMD Outdoor LED Display for Show and Events
1. P6.25 SMD Outdoor is perfect choice for outdoor high end projects.
2. Cabinet Size: 500mm*500mm*80mm, 8.5KG/cabinet.
3. Brightness: > 6000 nits.
4. Affordable Price
Contact Us Now to know more: mobile: +86 13823642790
| PH6.25 Outdoor SMD LED Screen Datasheet |
| Item | Specification |
| Pixel Pitch | 6.25 mm |
| LED per pixel | SMD3535 |
| Resolution | 62500 pixel |
| LED Number per/m² | 62500 |
| Single Module Dimension/Pixel(W x H) | 250mm x 250mm / (52dots * 52dots) |
| Single Cabinet Dimension/Pixel(W x H) | 500mm*500mm /(104dots * 104dots) |
| Cabinet Material | Rental, Die-casting |
| Single Cabinet Weight | 8.5kg |
| Optimal View Distancing | 4m-200m |
| Horizontal Viewing Angle | 140° (Standard LEDs Viewing Angle) |
| Vertical Viewing Angle | 140° (Standard LEDs Viewing Angle) |
| Brightness | ≥6000cd/m² |
| Grey Color | 14 Bit |
| Contrast | 2000:1 |
| Operating Temperature | -20ºC~+65ºC , 10%~90%RH |
| Temperature Checkup | When the working temperature is over 70 ºC, the power supply will cut off the current automatically. There are also excessive current& voltage protection |
| LEDs Lifetime | >1,000,000 Hours |
| Warranty | 2 years |
| Input Voltage | AC220V±15% |
| Input Power Frequency | 47~64Hz |
| Refresh Rate | 2000Hz |
| Frame Rate | > 60 frames/sec |
| Defect Rate | ≤0.0002 |
| Water proof | IP65 |
| Control Method | Synchronized with computer monitor |
| Way of Drive | 1/5 Scan constant driving |
| MTBF | > 100,000 hours |
| Color Temperature | 6500K±500 |
| Signal Interface | DVI |
| Source Compatibility | YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI |
| Control Distance | 120 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km |
Why Chengxinguang(CXG) LED Display
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
Chengxinguang Technology Co., Ltd (Brand: LED CXG) is located in Shenzhen, China, a major production base of global LED display screen industry. LED CXG is a professional LED display screen manufacturer. It provides professional and customized solutions on full color LED display screen, rental LED display, outdoor electronic LED signs, indoor LED displays, LED curtain display, moving message boards, variable message sign and video boards etc.
LED CXG is committed to our customers and partners by providing fast and genuine service, quality and value. Now we have established business relationship with customers in Asia, America and European countries etc, and we will continue to devote ourselves to providing customers with excellent performance products, efficient and effective services around the world.
LED CXG uses international high-end automated production equipment and has professional management, R&D, production, quality and service teams. Besides, we also have very strong and strategic relationship with the raw material providers. All of these factors have ensured the stability and quality in our LED products, and our competitive price.
Contact us today and learn why so many customers world-wide choose LED CXG as their partner for LED displays.
