| Price: | US $ 2.3-2.8/Piece |
|---|---|
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | AEHSCS-005 |
|---|---|
| Legnth: | 3~12m |
| Processing: | Quality Extruded |
| Standard China: | GB5237-2008 |
| Max Width: | 500mm X 500mm |

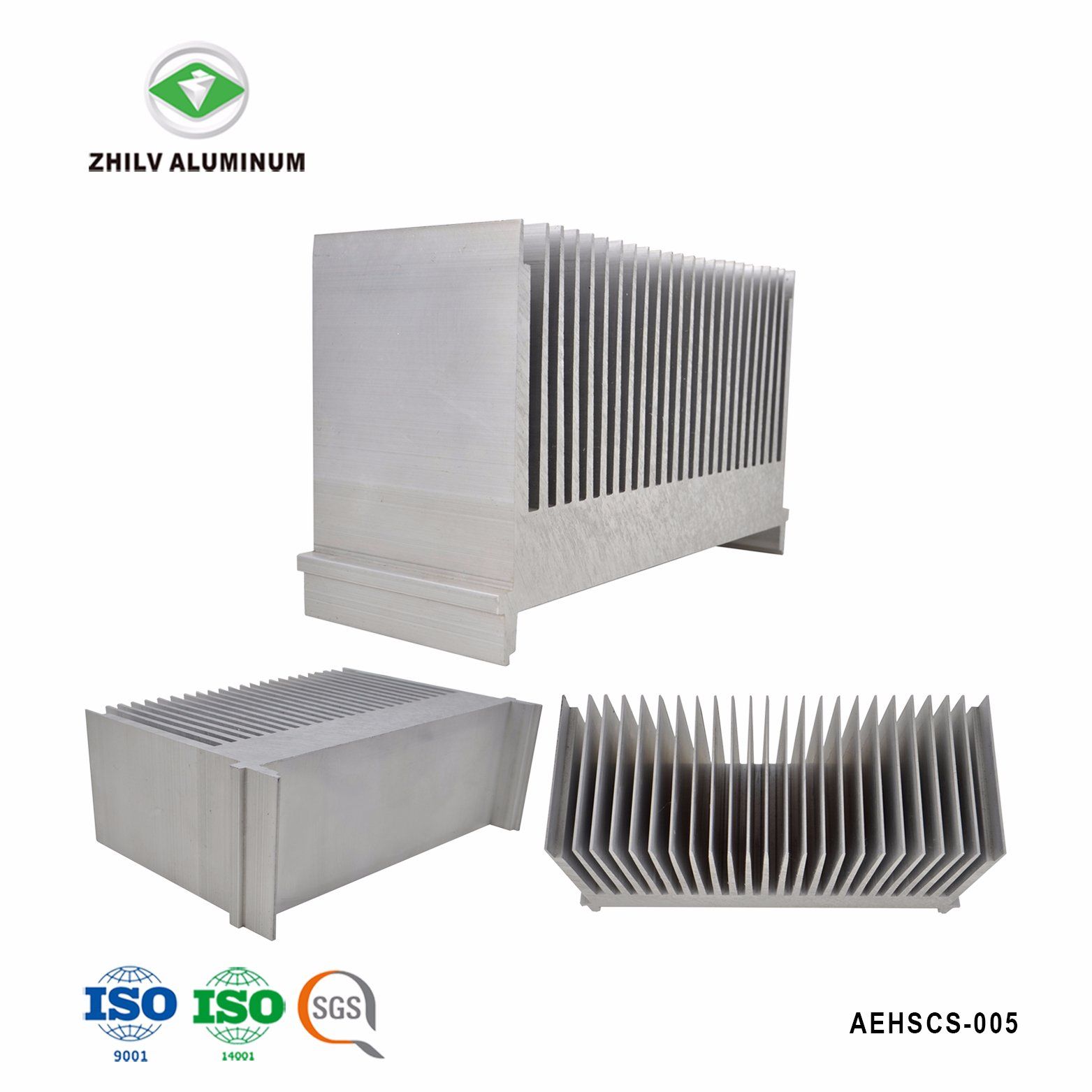

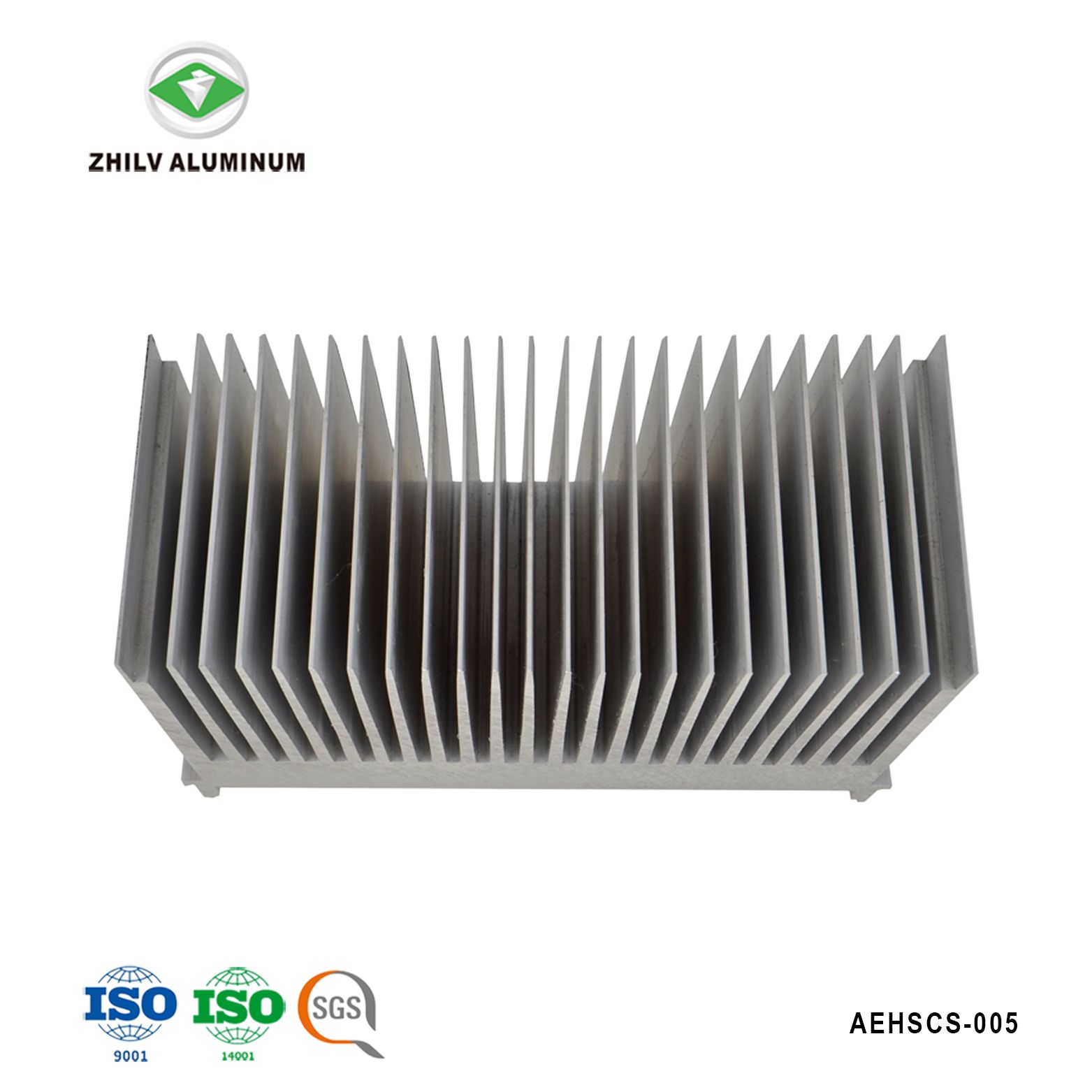

| Application: | Heat Sink |
| Grade: | 6000 Series |
| Temper: | T3-T8 |
| Window & Door Aluminium Profile: | 90 Series |
| Alloy: | Alloy |
| Alloying Ingredient: | 6063 |
| Certification: | SGS |
| Polished Aluminum Profile: | Mechanical Polishing |
| Shape: | Square,Rectangle,etc,or Customized |
| Surface Finishing: | Anodic Oxidation,Powder Spraying,etc or Customized |
| Material | 6000 series Aluminium |
| Temper | T4, T5, T6 |
| Size / Thickness | General profiles thickness from 0.8 to 5.0mm, length from 3m-6m or customized available; Anodize protection film thickness from 8~25 um, powder coating from 40 ~ 120 um. |
| Shape | square, round, rectangular, special shape customized |
| Application | In furniture, windows&doors, decorations ,industry, construction and so on - for Window and door frames - for LED lighting Frame - for Building curtain glass walls - for Motor Shell - for Hook of LED Stage lighting - for Industry assembly lines equipment. - for Heat sinks(such as: LED lighting, Car Audio Shell, High-power LED Street lighting, LED tunnel lighting and so on.) - other by custom design size and dimension |
| Surface treatment | powder coating, electrophoresis, wood grain , anodized Fluorocarbon Spraying, Sand blast, Polished, Brushed and so on |
| Colors | Ref: powder coating color sheet and customized color available |
| Deep process | CNC, drilling, milling, cuttin,punching, bending, assembling |
| MOQ | 1000 kgs for each item, usually 13-15 tons for a 20GP, 25-28 tons for a 40HQ. |
| Packing Details | (1)Inside : packed with plastic protective film to protect each piece |
| (2) Outside: Wrap to be bundles by waterproof craft paper | |
| Delivery time | (1)Die Developing and Sample testing: 12-18 days . |
| (2) Mass Production completed: 20-30days after sample is confirmed by Buyer. | |
| FOB Port | SHENZHEN / GUANGZHOU |
| payment terms | T/T 30% for deposit, balance before shipping. |
| settlement term | Charge by final actual weight or by drawing theoretical weight. |
| production capacity | 20000 tons annually. |
| Certificate and Standard | SGS, ISO available GB5237-2008 equal to EN12020-1.2 (2001 ) |
| Aluminium Alloy Chemical Composition | ||||
| Alloy | 6063 (%) | 6063A (%) | 6061 (%) | 6082 (%) |
| Si | 0.2~0.60 | 0.3~0.60 | 0.4~0.80 | 0.7~1.30 |
| Fe | 0.35 | 0.15~0.35 | 0.70 | 0.50 |
| Cu | 0.10 | 0.10 | 0.15~0.40 | 0.10 |
| Mn | 0.10 | 0.15 | 0.15 | 0.40~1.0 |
| Mg | 0.45~0.90 | 0.60~0.90 | 0.80~1.20 | 0.6~1.20 |
| Cr | 0.10 | 0.05 | 0.04~0.35 | 0.25 |
| Zn | 0.10 | 0.15 | 0.25 | 0.20 |
| Ti | 0.10 | 0.10 | 0.15 | 0.10 |
| Other (each) | 0.05 | 0.05 | 0.05 | 0.50 |
| Other (total) | 0.15 | 0.15 | 0.15 | 0.15 |
| Al | Remainder | Remainder | Remainder | Remainder |
| Type | Features |
| Mill finish | Raw materials aluminum ingot purity 100% performance to adopt various processing secondly |
| Finish of aluminum itself with a natural anodic layer formed in the air , weak corrosion resistance | |
| Anodizing | Oxidation film thickness more than 13mu, even color , without mechanical lines, corrosion-resistant , durable ,shinning and decorative. |
| Available in different colors like metal silver, champagne, dark bronze, black, and the same color with matt effect | |
| Electrophoresis | 23 years quality assurance, color elegantly and even color, surface without grain, glossy surface, corrosion-resistance, highly-wear resistance , high surface and brightness |
| Available in different colors like metal silver, champagne, black, and the same color with matt effect | |
| Powder coating | Film thickness more than 40 mu, surface smoothly , colorful products with various mechanical performance to adopt all kinds of architechtural style |
| Available in all kinds of color | |
| Wooden grain | New technology in finishing to form a texture look like real wood . 23 years quality assurance, corrosion-resistance, durable , shining and decorative. |
| Available in types of wood pattern. Hand touch or film transferring are both available. Customized accepted. | |
| Polishing | By buffing and chemical process to form mirror like finish, suitable for decorative application |
| Available in all kinds of color | |
| Brushed | By brushing and chemical process to form shining with line, suitable for decorative application |
| Sand Blast | By Sanding and chemical process to form sand surface ,suitable for decorative application |
