| Prod Model: |
304 and 316 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Condition: |
Sand Blasting / Zinc/ HDG |
| Safety: |
6 Times Tensile Strength Test |
| Package: |
White Tissue Within Wooden Crate |
| Original: |
Qingdao |
| Trade Mark: |
at OEM ODM |
| Certification: |
ISO CE SGS |
| Shipping Port: |
Qingdao |
| Production Capability: |
300, 000 PCS / Month |
| Material: |
Stainless Steel |
Product Description
Boat Hardware / 316/304 Stainless Steel European D Shackle
Product Description
Rigging Hardware / Marine Hardware / Boat Hardware / AISI 316/304 Stainless Steel European D Shackle
We are the marine hardware manufacturer and supplier.
We are glad to invite you to visit our factory.
About our products:
1) Certification: ISO9001- 2000
2) Material: Stainless steel 316/304
3) Surface finish: Electrolytic Polish
4) OEM designed
5) We could supply the material certification.
More products details, please download our catalogue (send email to us for obtaining the safety code of PDF)
AISI 316 Stainless Steel European D Shackle |
| Code | Size | A | B | C | D | WLL |
| mm | mm | mm | mm | mm | lbs |
| TFR-0901-0004 | 4 | 4 | 4 | 8 | 16 | 150 |
| TFR-0901-0005 | 5 | 5 | 5 | 10 | 20 | 240 |
| TFR-0901-0006 | 6 | 6 | 6 | 12 | 24 | 340 |
| TFR-0901-0008 | 8 | 8 | 8 | 16 | 32 | 600 |
| TFR-0901-0010 | 10 | 10 | 10 | 20 | 40 | 750 |
| TFR-0901-0012 | 12 | 12 | 12 | 24 | 48 | 1000 |
| TFR-0901-0014 | 14 | 14 | 14 | 28 | 56 | 1350 |
| TFR-0901-0016 | 16 | 16 | 16 | 32 | 64 | 2000 |
| TFR-0901-0018 | 18 | 18 | 18 | 36 | 72 | 2750 |
| TFR-0901-0020 | 20 | 20 | 20 | 40 | 80 | 3000 |
| TFR-0901-0022 | 22 | 22 | 22 | 44 | 88 | 3600 |
| TFR-0901-0025 | 25 | 25 | 25 | 50 | 100 | 4500 |
ABOUT US:
As your one-stop source, AT PRECAST,we design, manufacturer and distribute precast concrete accessories including the Lifting Systems and Anchoring systems Coil and Ferrule Inserts. for Concrete and Prefabricated area.
As a leader in developing concrete accessory products, our main goal is to produce products that are safer, faster and more cost efficient.
With more than totally 50 years working experience, our entire staff is dedicated to provide you with the best customer service and competitive prices. Our sales force are able to answer your questions quickly and offer you technical support .
Assurance,
100% quality manufacturing.
We guarantee that our products meet your supplied specifications
Extremely competitive pricing
Delivery to your port or front door
4 ---- 8 week lead times
We handle all paperwork
Partial container orders
Flexible payment options
Unique tooling options
Full range of packaging options from bulk to retail ready
Complete testing services available
FAQs
1. Where is your location?
We are located in Qingdao City of China and are closed to Airport. It takes 30minuts by car from Liuting Airport our company.
2. How long has the company been established?
AT INDUSTRY was established in 2009. There is 6 years exporting experiences.
3. How many employees do you have?
Administration / sales 4
Engineering / design as our partner 8
Production as our partners 120
Quality assurance / inspection 10
4. Which countries do you export to?
U.S.A, Germany, France, Italy, UK, Brazil, Middle east of Asia, Thailand,
5. What proportion of your goods are exported?
100% of our production are exported to all over the world.
6. How long does it take to receive samples?
a) Pattern:30-45days after order
b) Sample:30days after pattern finishing.
c) The lead time is the general production period and does not include the transportation time.
7. New product development process
Got tooling order and sample order with 50% deposit---Hold a meeting with the relation dept. to ensure the developing schedule---Design pattern, fixture and gauge and making them in our house---mold steel buying---Machining---Inspection---Send out the sample with initial inspection report.
8. How long is the manufacturing lead time?
Mass Production: 90days after sample approval by yours.
The lead time is the general production period including the transportation time.
We could make some special production arrangement effectively if customer has urgent need.
9. What basis can we buy goods?
We generally offer customers prices FOB& CIF (Carriage, Insurance & Freight). The CIF includes the freight cost to your nominated sea port.
We do provide clearance of goods which needs to be handled by a local freight forwarder.
All local costs and taxes are the responsibility of the buyer. We are happy to offer advisement on shipping if required.
10. What are the payment terms?
Payment terms are negotiable and will improve for long term customers.
During the initial stages, we request 50% of tooling fee in advance with the balance payable on acceptance of samples.
Production orders can be negotiable. We prefer 50% deposit and the balance by T/T before sails. But sometimes T/T 30 days after sails would also acceptable.
11. Which currency can we buy in?
We can deal in USD / Euro currency / GBP.
12. How long does it take to ship goods from China by sea?
It takes about 5 weeks to European ports plus 1 week customs clearance, so you can get the container within 6 to 7 weeks. It takes about 2 weeks to east coast and 3 weeks to west coast US ports. All sea goods are shipped from Qingdao Port.
13. How long does it take to ship goods from China by air?
It takes about 7 days to all major destinations.
14. Can we visit the factory to conduct an audit?
Yes, you are welcome to visit our partner factory by prior agreement.
15. How do we retain client confidentiality?
We are happy to sign Confidentiality Agreements with customers and will honor them.
16. Which languages do we do business in?
Although we do business with many countries around the world, we can only communicate effectively in Chinese English.
All information supplied should therefore be supplied in this form.
17. Is there a minimum volume of business required to conduct international purchasing?
There are no minimum volumes, but the prices of the goods, plus the fixed costs of importing makes it more economical to buy in high volumes. All potential customers will be assessed on an individual basis to determine if it appears a viable option for all parties to develop a relationship.
18. What type of parts you are specialized in?
Our business contains two areas,
one is for construction precast including lifting system, rigging hardware metal parts.
Another is customized metal business of quality sand castings, investment castings, lost foam castings, hot forgings, cold forgings, stampings, machined parts, injectionmolded plastics parts, etc.

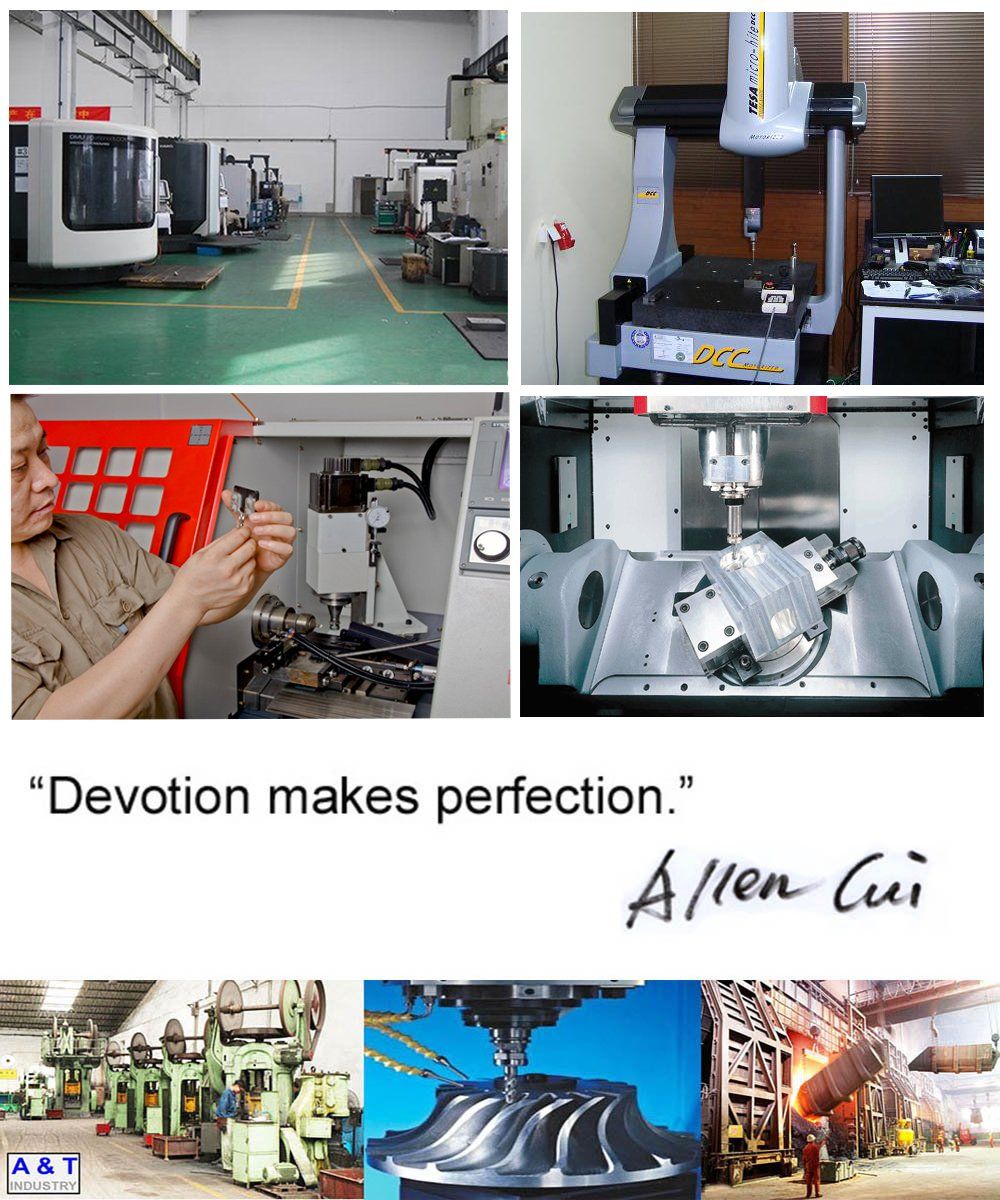

19. Which kind of equipments do you have?
Forging friction press 160Ton, 300Ton, 630Ton, 1200Ton
Casting furnace of 200kg, 500kg,1000kgs, 2000kgs
Press of 63ton, 120tons
CNC Machining center
CNC Vertical Lathe
CNC Lathe center
Boring machine
Drilling machine
A&T Industry is a contract manufacture and exporter of quality sand castings, Investment castings, lost foam castings, hot forgings, cold forgings, stampings, Machined parts, injectionmolded plastics parts, etc.
We are a dedicated team of customerfocused industry professionals with extensive experience in manufacturing, materials engineering, quality assurance, logistics management and inventory control.
We utilize our experience and sources advantage to provide our customers with cost effective and valuebased solutions to meet their engineering and design needs while exceeding their quality and procurement requirements.
A&T Industry is located in Qingdao, a major seaport, Olympic Host City and Industrial center of China.
Assurance,
• 100% quality manufacturing.
• We guarantee that our products meet your supplied specifications
• Extremely competitive pricing
• Delivery to your port or front door
• 48 week lead times
• We handle all paperwork
• Partial container orders
• Flexible payment options
• Unique tooling options
• Full range of packaging options from bulk to retail ready
• Complete testing services available
