Borehole Drilling Machine for Hard Rock (HW-230)

Borehole Drilling Machine for Hard Rock (HW-230)
Price: US $ 1000-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: HW-230
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Part Name: Water Well Drilling Rig
Model Number: Hw-230
Drilling Depth: 230m
Maximum Open Hole Caliber: 300mm
End Hole Caliber: 75mm
Drill Rod Caliber: 50mm
Drilling Angle: 90~75
Diesle Engine Power: 22 HP
Price: Factory Price
Warranty: 1 Year

Product Description

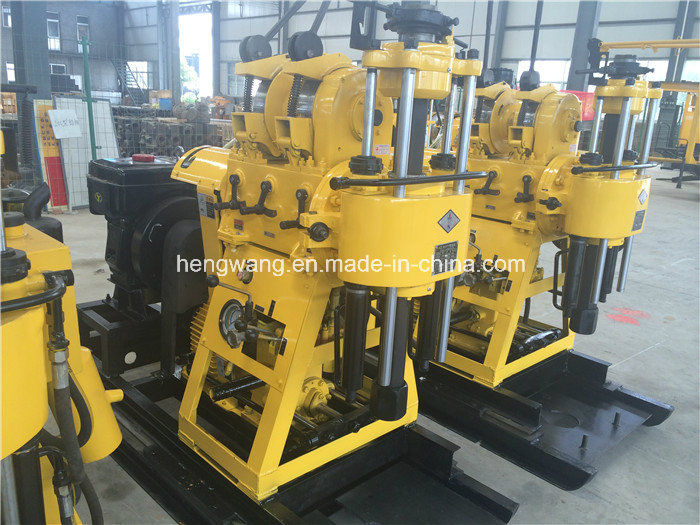

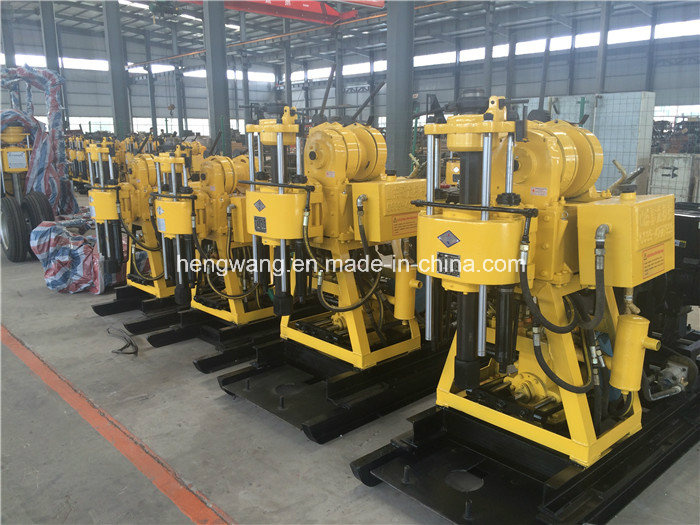

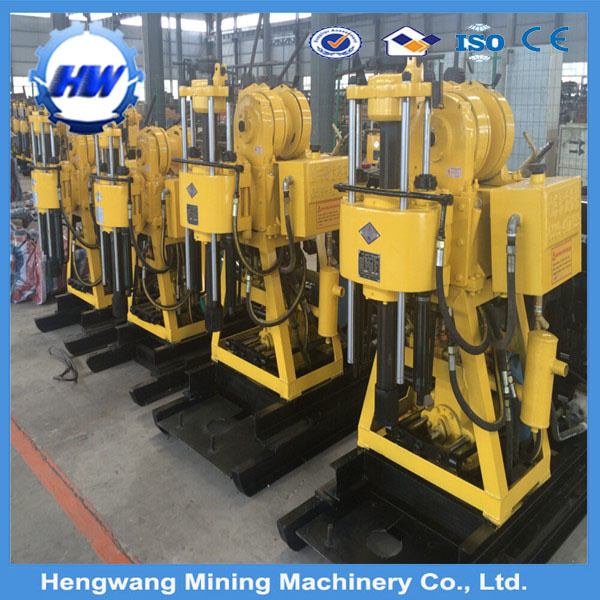

Borehole Drilling Machine for Hard Rock (HW-230)


Product introduction

1.HW-230 water well drilling rig Feature

A.53*59 drilling rod adopted,high rigidity and strong delivery torque.
 the machine is equipped with national patent technology---taper clutch,with charactristics of strong transmission troque,easy operation and free maintenance.

B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.

C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.

2.HW-230 Water Well Drilling Rig Applications

HW-230 drilling rig is mainly used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole drillling and driect grouting,civil wells and earth temperature entral air-conditioner,etc.

Main Technical Parameter


Drilling depth
30-230m
Max open hole caliber300mm
End hole caliber75mm
Drill rod caliber60mm
Drilling angle90°~75°
Drill weight (without power)975kg
Triangle conveyer beltB950 x 4   B1700 x 3
The main machine moving distance300mm
PowerDiesel engine 22HP                                         Electric motor 15kw
Spindle
spindle speed64, 128, 287, 557r/min
Spindle stroke450mm
Hoist
Max.lifting capacity2400kg
Single line lifting speed0.41, 0.82, 1.64m/s
Wirerope caliber13mm
Wirerope length35m
Reel diameter140mm
Hug floodgate caliber260mm
Hug folldgate belt width70mm
Mud pump
TypeHorizontal single-urn twin-action
DisplacementDiesel engine 170L/min     Electric motor 150L/min
Maximum pressure3Mpa
Work pressure1.5Mpa
Inlet pipe caliber40mm
Outlet pipe caliber30mm
Triangle conveyer beltB1728mm
Hydralic oil pump
TypeCBT-F-314
Triangle conveyer beltB1100 X 1
