Borewell Drilling Machine Horizontal Directional Drilling Machine

Name: Borewell Drilling Machine Horizontal Directional Drilling Machine
Brand: tool-buy.com
SKU: 725934282
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 3700-4200SET
Min Order:	1SET
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Tianjin Henghua Pipeline Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	HH130
Packing:	Follow Customer's Requested
MOQ:	1 Set
Loading Port:	Tianjin Port
Drill Angle:	90-75
Weight Without Power:	620
Usage:	Exploration of Railway,Road,Bridge
Our Main Market:	MID East,Southeast,Asia,India,Europe
Price:	Very Competitive Price
Inspection:	Factory in House or Third Party Inspection
Delivery:	Our Factory Has Stock

Product Description

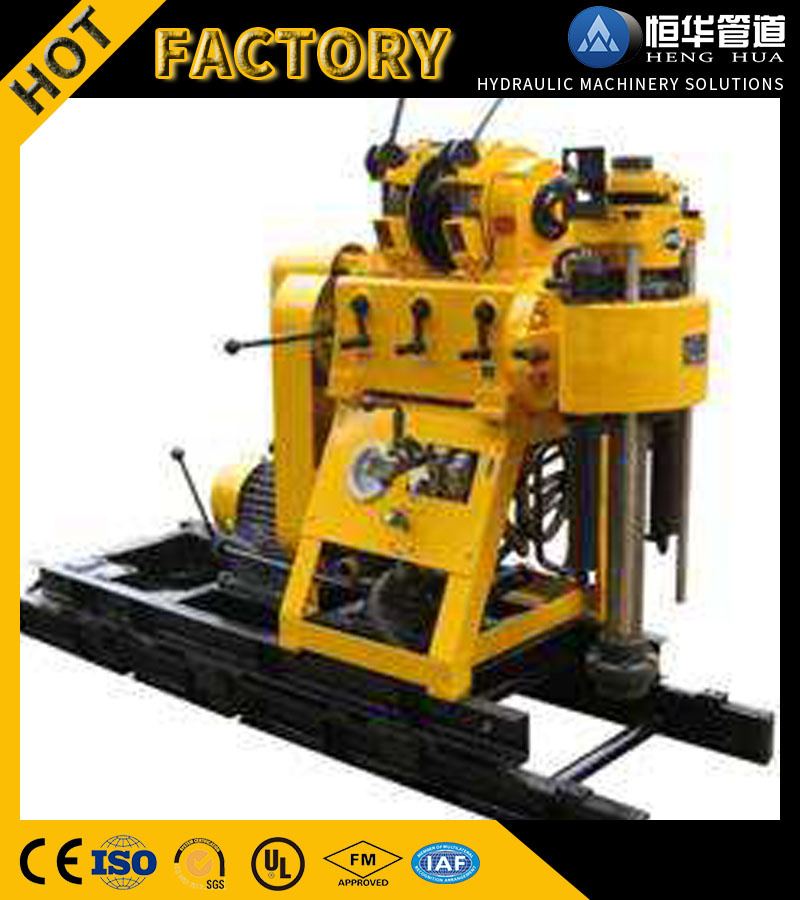

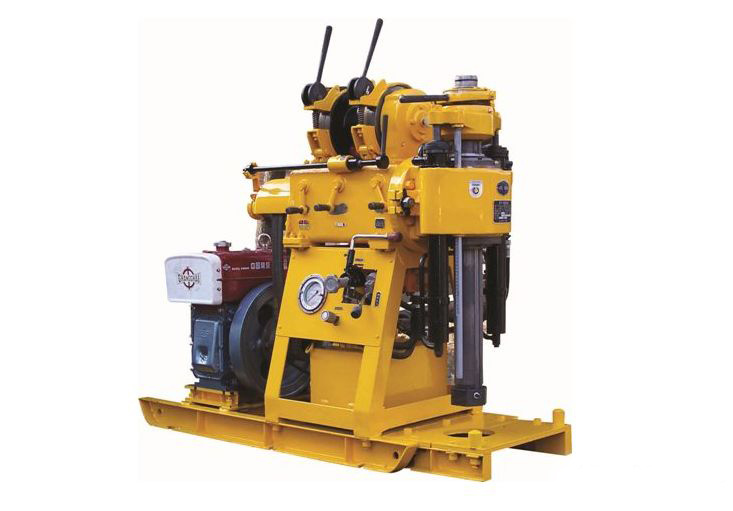

Borewell Drilling Machine Horizontal Directional Drilling Machine
Our Drilling rig photo

What is our Drilling Rig features?

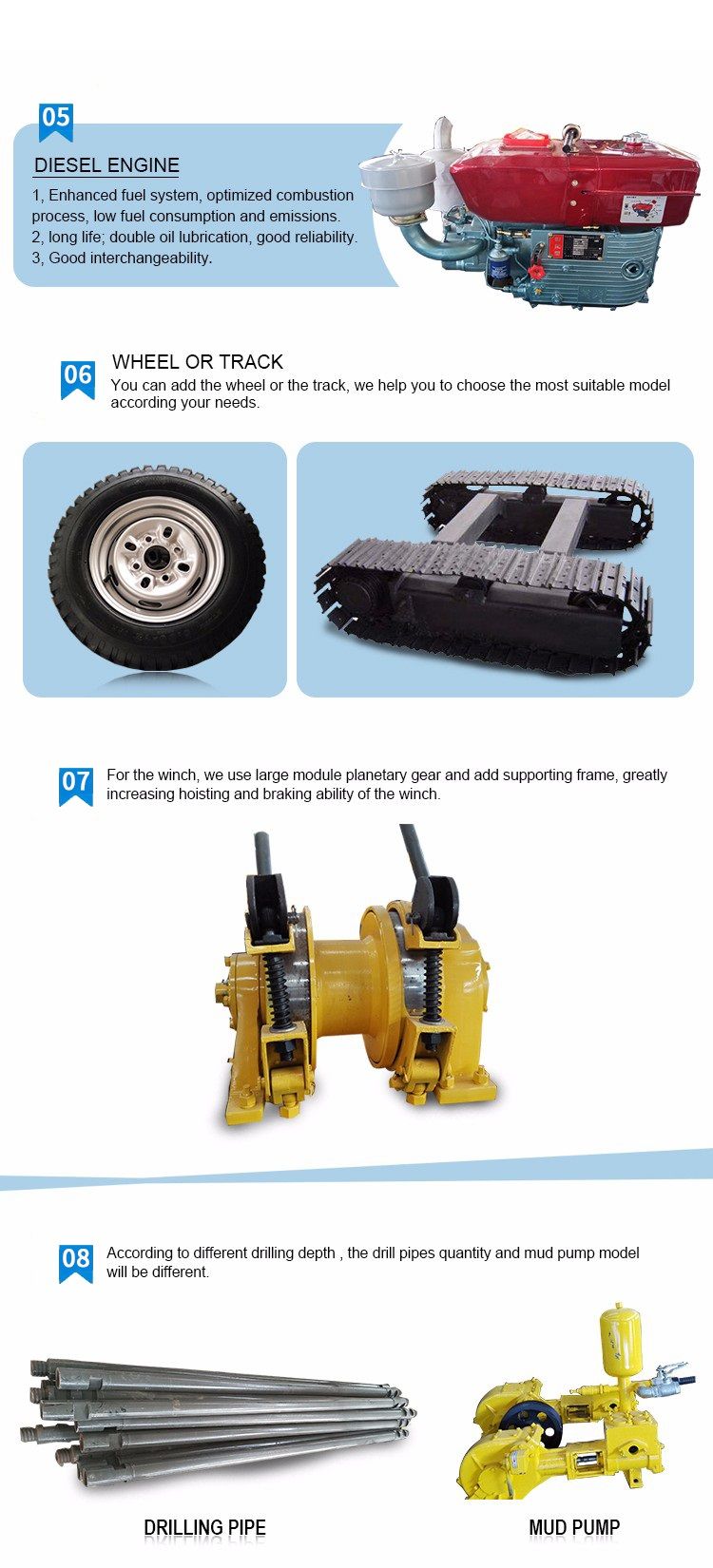

a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

General investigation, geophysical survey, road and tall building base prospecting, drilling projects like water well, blast hole and so on. According to different geological conditions, you can choose drilling bit kinds: diamond, alloy and steel particles to drill.

What is our Drilling Rig technical paremeter?

	Model	HH-130	HH-180	HH-200
Tech Parameter	Drilling Depth(m)	130	180	200
	Open hole dia.(mm)	220	220	220
	End hole dia.(mm)	75	75	75
	Drill rod dia.	42-60	42-60	42-60
	Drilling angle(°)	90-75	90-75	90-75
	Matching power(kw)	13.2	13.2	14.7
	Weight without power	620/750	620/750	880/970
	Dimension	2.4x0.8x1.3	2.4x0.8x1.3	2.7x0.9x1.5
Spindle	Speed(r/min)	142/285/570	130/300/480/ 730/830/1045	64/128/287/557
Spindle	Stroke(mm)	450	450	450
Winch	Max pull force(kg)	2100	2100	2500
	Pull speed(m/s)	0.35-2.23	0.35-2.23	0.12-0.95
	Rope dia.(mm)	Φ9.3	Φ9.3	Φ12.5
	Roll capacity(m)	27	27	35
Drill Mast	Rated load(ton)	18	18	18
Drill Mast	Height(m)	6.5	6.5	6.5
Mud pump	Flow(L/min)	95	95	145
	Max. pressure(Mpa)	1.2	1.2	2
	times/min	93	93	93
	Inlet hose dia.(mm)	51	51	51
	Outlet hose dia.(mm)	32	32	38

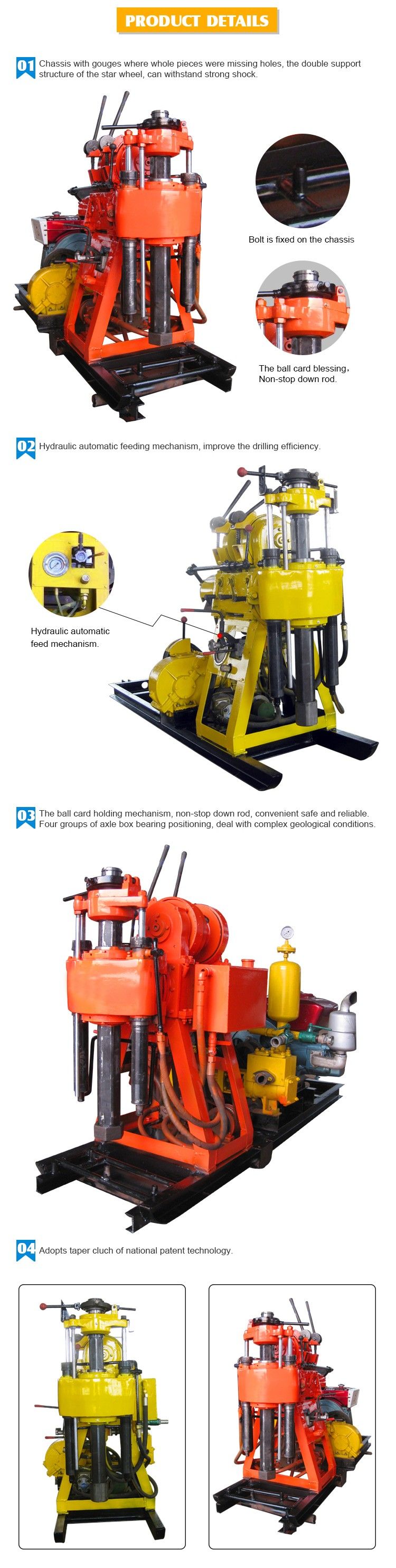

Product Details

FAQ

Q1: Are you a manufacturer?

A: Yes, we are a professional drilling rig and its parts manufacturer.

Q2: What does your company produce?

A: The main products of our company include rotary drilling rig, Kelly bar, drilling bucket, drilling auger, casing oscillator, desander and tricone bit, etc.

Q3: How about your delivery time?

A: Normally the delivery time is about 35 days. For some special case, we can make it within 2 weeks, it depends on different products.

Q4: What methods of payment do you accept?

A: We accept T/T, L/C, Western Union or as customer requested

Q5: What is the MOQ?

A: Small trial order is acceptable, like 1 set, 2 sets…

Q6: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price.

Tianjin Henghua Pipeline Technology Co., Ltd is the member of HeBei Bohai GROUP a professional manufacturer. As far, we have three branches for 3 main machines. We adhere to "quality oriented, credibility first" business philosophy, striving to provide users around the world perfect machines at the advantages of our strong brand, technology and services.

We have skillful production people and strong R&D technicians who have accumulated over 26 years experience in machinery, "Best quality, best service and most competitive price" is our principle.

Drilling rigs

Our brand is recognized worldwide for our high quality, reliability and our customer service. Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Henghua has a professional team of engineers with rich experience in the design, production and inspection.

Hydraulic Machines

We produce high quality Hose crimping machine, hose cutting machine, hose assembly, hose skiving machine, flexible axle crimping machine, and nut crimping machine and so on. They are widely used in navigation, military industry, engineering machinery, and mine exploitation, steel, shipping manufacture, oil field, drilling rigs, flexible axle produce, agricultural equipment etc. Our products are well accepted all over the country and in Southeast, Asia, Africa etc.

Concrete grinding machine

We had been engaged in developing and manufacturing floor polishing machines, floor washing machines, vacuum cleaners, floor scarifier, diamond tools and various accessories. We have our own manufacture bases in Tianjin and some other well cooperation partners. Some of our products have passed the CE, ISO9001 quality control system certificates.

We strongly believe that the friendship and trust given by our customers are the great treasure we have and the constant improvement & innovation in quality, cost and service will continue our group's growing.
