| Prod Model: |
Botou machine, roof and wall sheet roll forming |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Motor Power: |
7.5kw |
| Voltage: |
380V |
| Diameter Of Principal Axis: |
85mm |
| Thickness Of Material: |
0.3mm-0.8mm |
| Type: |
Steel Tile Roll Forming Machine |
| Connect Wall Panel: |
Thicnkesnn 35mm |
| Main Frame: |
350h Steel Welding |
| Hydraulic Power: |
7.5kw |
| PLC Control: |
Color Scree Touching |
Product Description

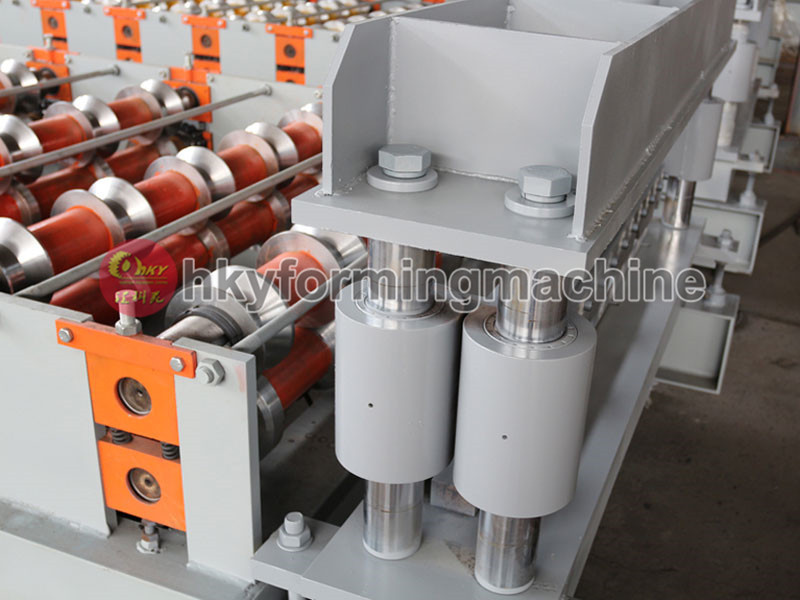

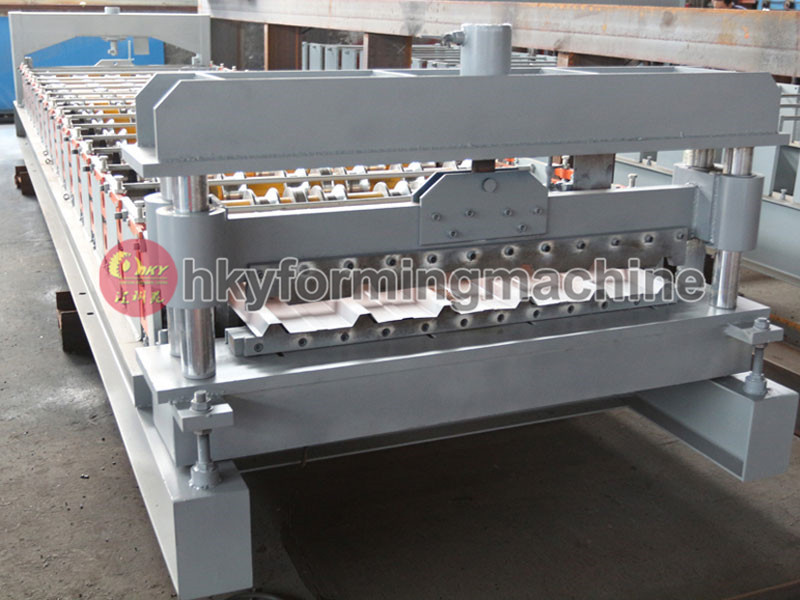

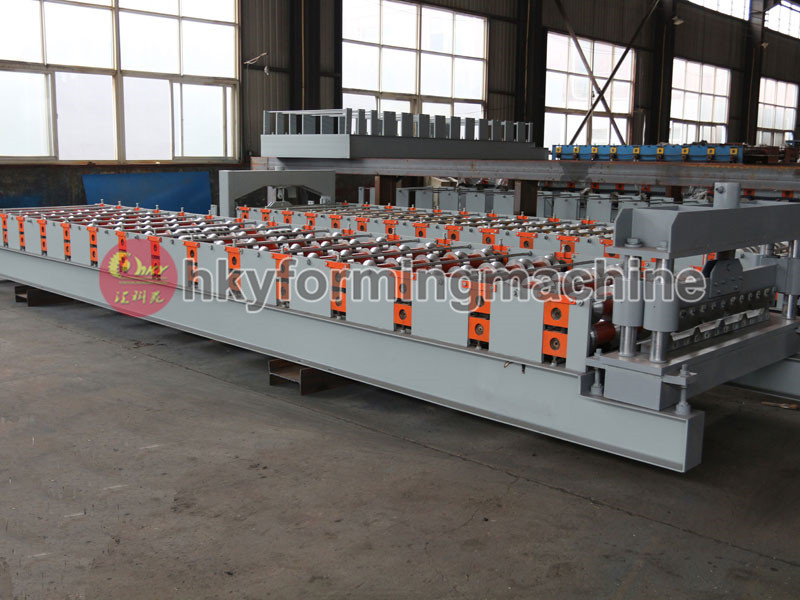

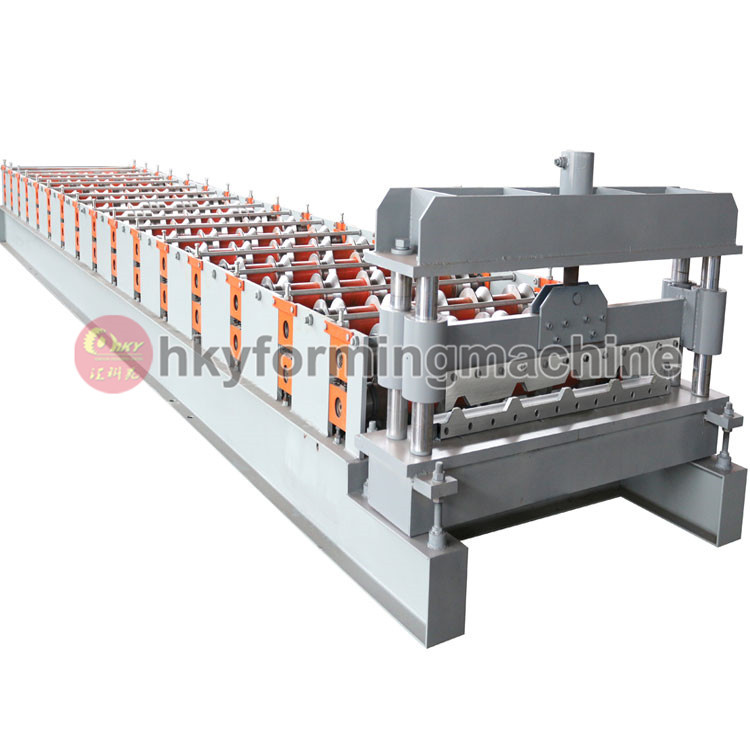

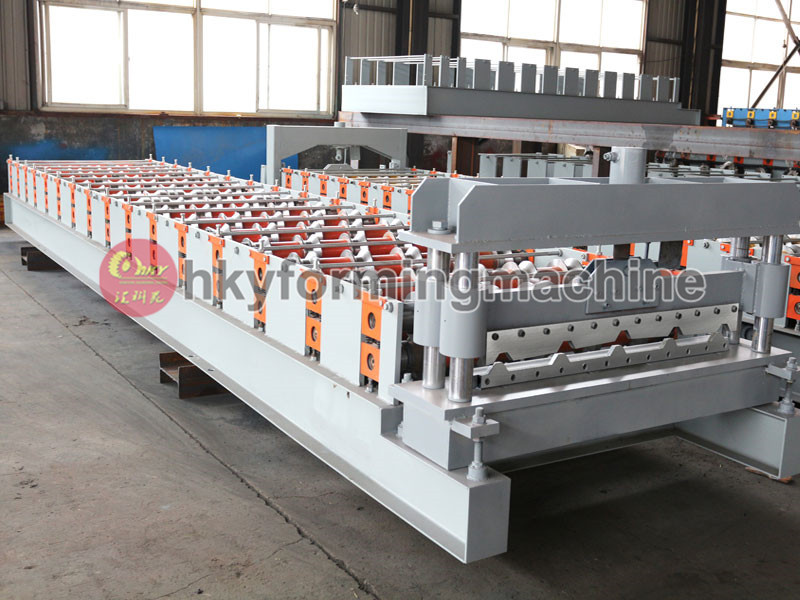

Dust shield roll forming machine
Techenical parameters:
1 Material spec: Colored steel sheet, galvanized steel sheet
2 Thickness of coil sheet: 0.4-0.8mm
3 Main motor power: 7.5kw
4 Forming speed: 10-12m/min
5 Hydraulic station power: 3kw
6 Quntity of stands: About 16 groups or according to the customers requirement
7 Hydraulic pressure: 10-12Mpa
8 Controling systerm: PLC
9 Total weight: About 9, 500kg
10 Voltage: 380v 3 phase 60Hz or at buyers requirement
Material of main equipment:
1 Roller material: High grade No. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
2 Active shaft material: High grade No. 45 carbon wrought steel at diameter 75mm
3 Cutter blade: Cr12 mould steel with quenched treatment
4 Eletric elements: Control systerm with PLC model S7-200, Siemens transducer with ABB control panel with TP 170, Siemens it can input 10 sets of spec at one time
5 Oil tank model of hydraulic systerm: CB-E310
Machine Components:
Forming Machine: 1 set
Hydralic pressure systerm: 1 set
Auto-cutting knife: 1 set
Computer control box: 1 set
Arched machine: 1 set
Seaming wrench: 1 set
Hand-made holder: 1 set
Working flow:
Decoiling the sheet--sheet guiding--roll forming-- measure length cutting the panel---panels to the supporter
Our Services
1. Customers` Design, Size, Color&Logo are accepted.
2. With15years professional manufacture experience
3. Prompt Delivery&Competitive Price
4. Main markets: Middle East, Europe, North America, Africa, Southeast Asia.
5. After-sales service:
1. We provide the technical support for whole life of our machines.
2. If buyers need the technician to go abroad, we will arrange the technician, but the buyers should take all the cost, including visa, roundtripticket etc.
6. Feature of our machine:
1. Our machine can use galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PL display, operationis easy, running is steadyand reliable, endurable, maintence-free.
3. We can make and design what kinds of roll forming machine according to the request of customers.

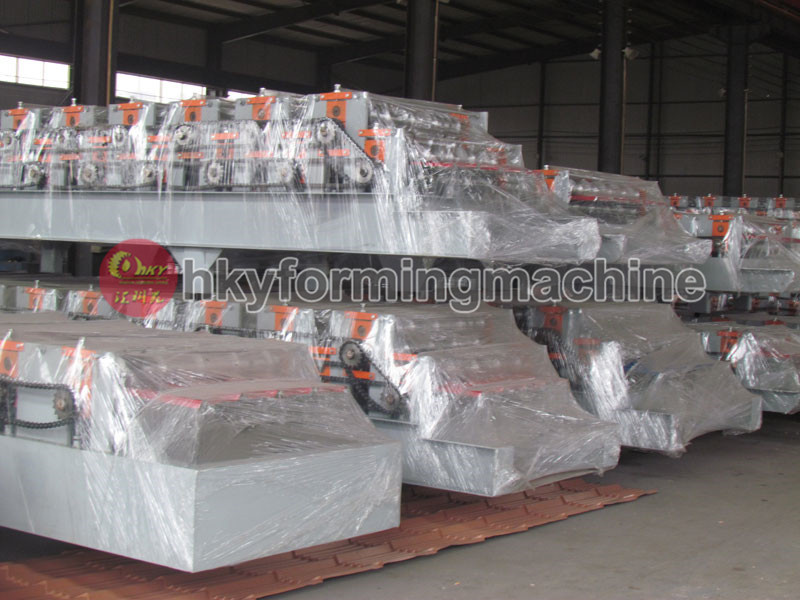

Packing and loading
Because of the long trip and your super trust, we will make sure roof cold forming machine can be
Appeared in front of you in fully good condition, you will fall in love with it with first glimpse.
Company introduction
Botou Huikeyuan Engineer Contorl Co., Ltd is the"Important individually-run enterprice" of Botou City. Since many years, we devoted ourselfs to develop the metal-plate cold forming machine, now we have unique management ability. We are real manufacturer of roll forming machine. We have been in this area
For 13 years, . Our products have light structure and reasonable design.
We won praise from same steel structure field because of the innovation constantly.
Company gate
Production site
Why choose HKY
1. We can make and design all kinds of roll forming machine according to customer's request.
Our machine has passed CE, ISO
2. This is a very perfect and durable equipment.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the
Special type machine according to the customers' requirement and we could provide technical guiding, production, installation,
Debugging and maintenance service to all customers.
Contact me:Lisa Yang (Sales Manager)
BOTOU HUIKEYUAN ENGINEERING CONTROL CO.,LTD
Phone:+86 15612755608
Add: Fuzhuang Development Zone Botou City, Hebei, China
we warmly weclome you to visit our factory!
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. UR products won acclaim from all customers in domestic and abroad.
