Product Description

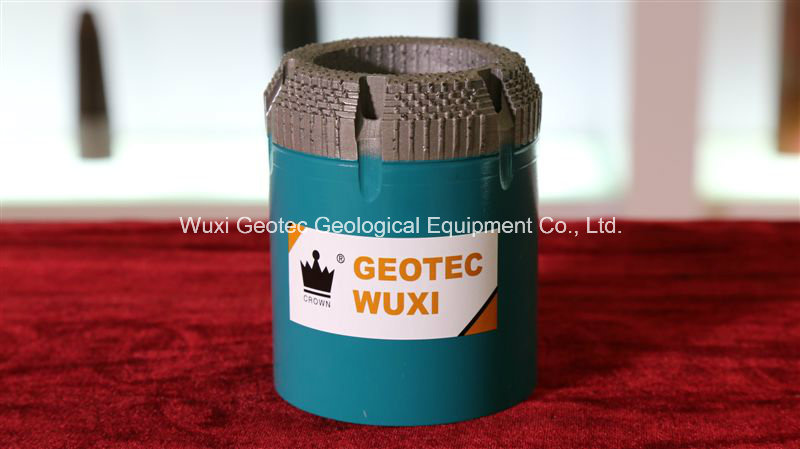

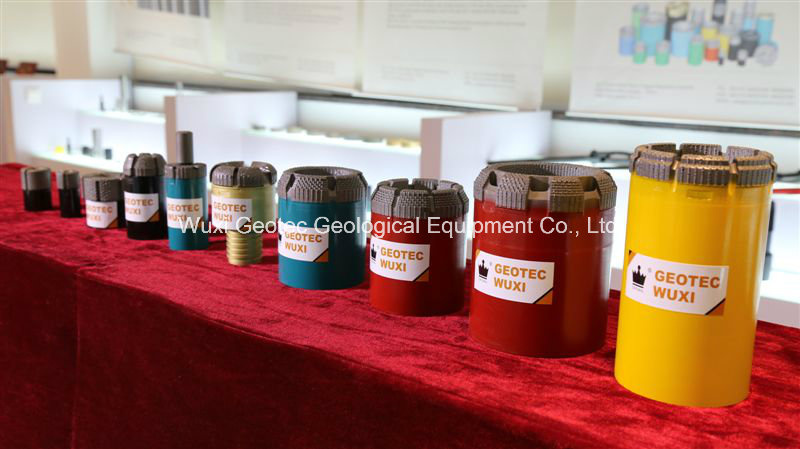

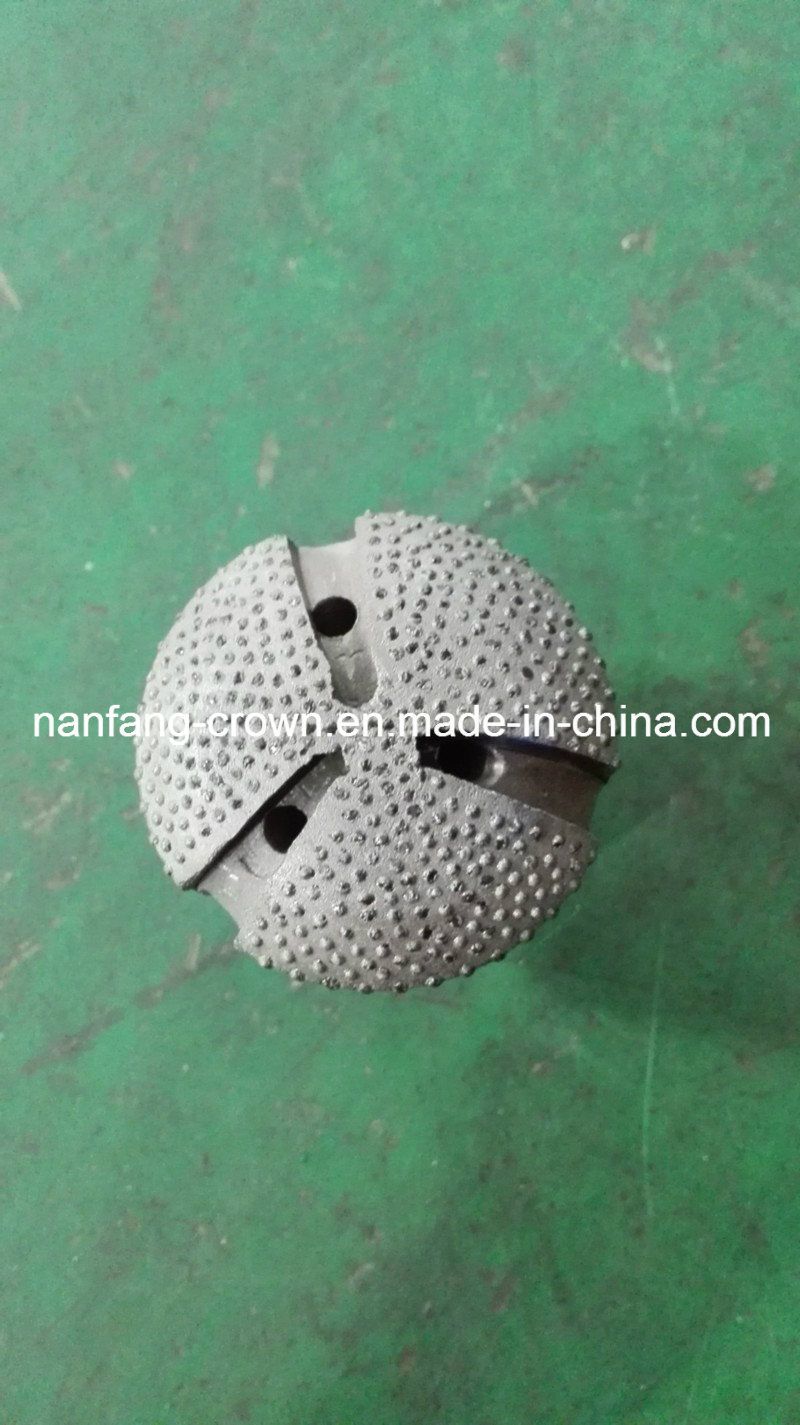

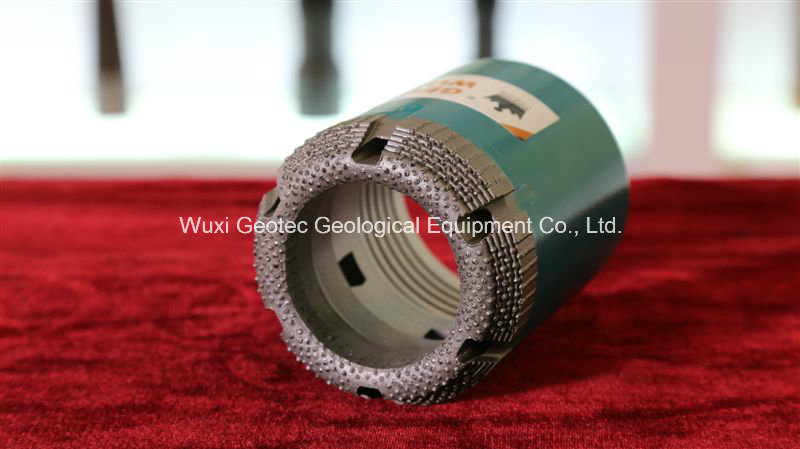

Surface-Set Diamond Bits are set with a singular layer of natural or synthetic diamond utilizing a hard matrix compound on the face of the bit. The diamond set design ensures sufficient overlap to prevent premature wear of the matrix.
Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits. They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.
Size Available:
Wireline Series: A,B,N,H,P(Front end & Back end Type)
T Series: T36,T46,T56,T66,T76,T86
WF Series: HWF,PWF,SWF,UWF,ZWF
WT Series: RWT,EWT,AWT,BWT,NWT,HWT(Single Tube/Double Tube)
WG Series: EWG,AWG,BWG,NWG,HWG(Single Tube/Double Tube)
WM Series: EWM,AWM,BWM,NWM
T2/T6 Series: T256,T266,T276,T286,T2101/T676,T686,T6101,T6116,
T6131,T6146,T6H
Others: NMLC,HMLC,LTK48,LTK60,TBW,TNW,ATW,BTW,NTW,AQTK
NXD3,NXC,T6H,SK6L146,TT46,TB56,TS116,CHD101
All Chinese Sizes.
Our company GEOTEC WUXI was established in the year 1989, which is now the leading manufacturer of diamond core drilling equipment and tools in China.
We manufacture Drill Rods, Casings, Core barrels, Diamond bits, Reaming shells, Drill rigs, PDC bits and other drilling tools & equipment for geological exploration, mining, geotechnical, dam grouting, water well and horizontal directional drilling.
The manufacturing facility is located in Wuxi City which is very close to Shanghai. From this location at the geographic center of East China, GEOTEC can rapidly expedite products all over China and export to overseas.
With the unaided design capabilities and advanced flow of production, as well as a whole set of high precision equipment, we output high quality products. In the year 2006, we passed the ISO 9001: 2000 quality system certification, and in the year 2011 passed ISO 9001: 2008 quality system certification.
We have been striving to develop new and innovative products to meet the changing needs of the drilling industry, and we always keep our delivery time very short to meet all our customer's requirement.
Today, GEOTEC WUXI distributes a wide range of drilling products to more than 60 countries all over the world.
Due to the rapid development of our business, our company purchased the land and the expansion of 40, 000 square meters of new plant has been completed and put into production in October 2013.
We cordially welcome every customer and friend come to our company for a visit.
