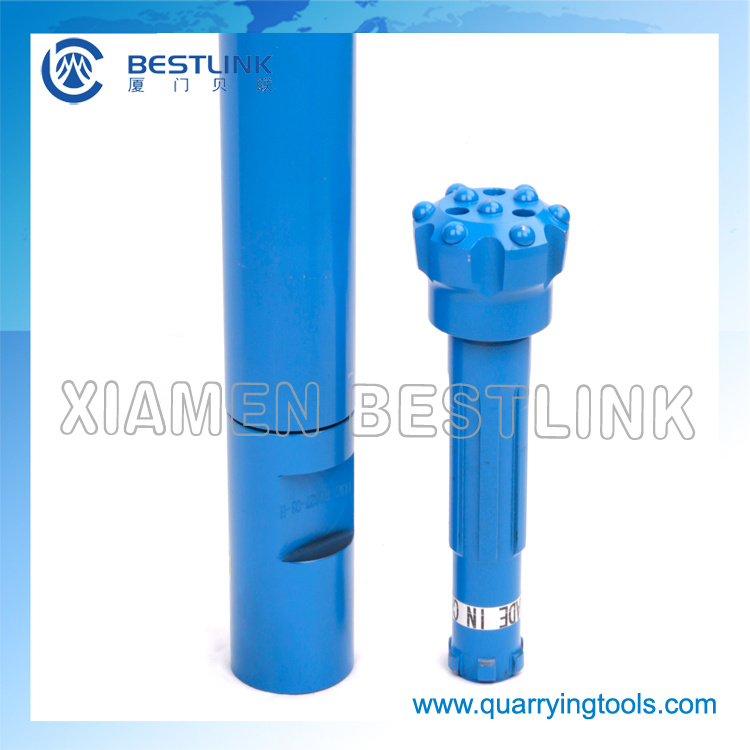

| Prod Model: |
BR3 |
| Color: |
Blue |
| Processing Type: |
Forging |
| Application: |
DTH Drilling. Coal Mining,Quarry |
| Weight: |
40kg |
Product Description
1, valveless air distribution. More reliable.
2, simple design of the piston, long life.
3, More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.
4, fewer internal parts, simple structure, longer life, less failure and easier to maintain becayse all the parts are heat treated.
5, It is easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.
Available series of DTH hammer:
1) high pressure
SD series hammer: SD 5, SD 6, SD 8 and SD 12 DTH Hammers.
QL series hammer: QL 50, QL 60, QL 80 DTH Hammers.
HD series hammers: DHD 3.5, DHD 340. DHD 350, DHD 360, DHD380 DTH Hammers.
Mission series hammers: M30, M40, M50, M60, M80 DTH Hammers.
Cop series hammers: Cop 32/34, Cop 42/44, Cop 54/64 DTH Hammers.
2) low air pressure: BR1, BR2, CIR 70, CIR 90, J60, J80, J100, J150, etc.
| Product Name: | CIR90 down the hole DTH drill hammer |
| Description: | CIR90 down the hole DTH drill hammer were used for blast hole drilling
and water well drilling project.
Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,
Marble quarry or well drilling and other construction projects. |
| Quality level: | 95% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brand |
| MOQ: | No requirement for testing and trial order |
| Series: | COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc |
| |
| Specification: | Weight (kg) | External Diameter (mm) | Connection thread | Hole rang (mm) | Impact rate | Recommended rotation speed |
| Low air pressure DTH hammer CIR type | 5 ~22 | 50~180 | CIR** | 55~200 | 820 rpm | |
| Middle air pressure BR & COP type | 10~30 | 70~110 | | 85~115 | | |
3 inch DTH hammer
COP34/QL30 etc | 24.5 | 81 | API 2 3/8" Reg | 90~110 | 28Hz (at 17 bar) | 28 r/min |
4 inch DTH hammer
COP44/DHD340 etc | 39.2 | 99 | API 2 3/8" Reg | 110~150 | 27Hz (at 17 bar) | 25~40 r/min |
5 inch DTH hammer
COP54/Mission50 etc | 71.5 | 125 | API 2 3/8" or API 3 1/2" Reg | 135~165 | 25Hz (at 17 bar) | 20~30 r/min |
6 inch DTH hammer
COP64/QL60 etc | 98 | 142 | API 3 1/2" Reg | 152~216 | 23Hz (at 17 bar) | 15~25 r/min |
8 inch DTH hammer
COP84/SD8 etc | 188 | 180 | API 4 1/2" Reg | 203~305 | 20Hz (at 17 bar) | 15~20 r/min |
