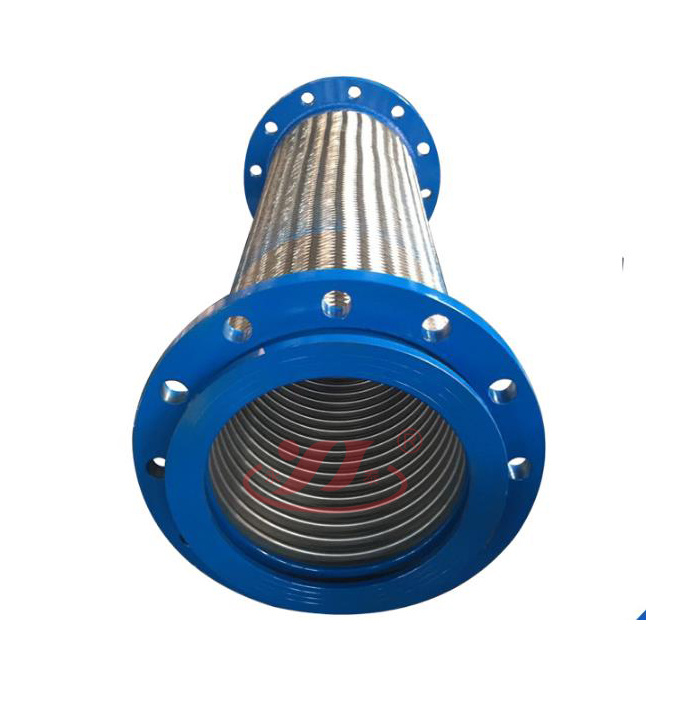

Braided Flexible Metal Hose with Flanges

Prod Model:	YTYG-22
Standard:	GB
Connection:	Flange
Material:	Stainless Steel + Carbon Steel

Product Description

Corrugated Metal Hoses are very flexible, they can absorb large movements and can be supplied with customised lengths to suit the installation. This gives great design freedom, enabling their installation in the most limited of spaces, where no other appropriate flexible solution could be used. They are frequently deployed in situations where it is not operationally or economically viable to use expansion joints for the absorption of movement. Hoses are fitted to permit movements created by thermal changes in the system or mechanical influences such as vibrations from pumps or compressors installed with flexible mounts.

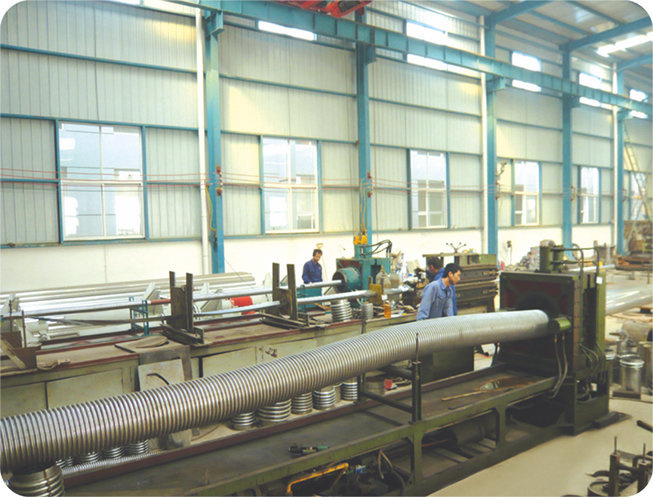

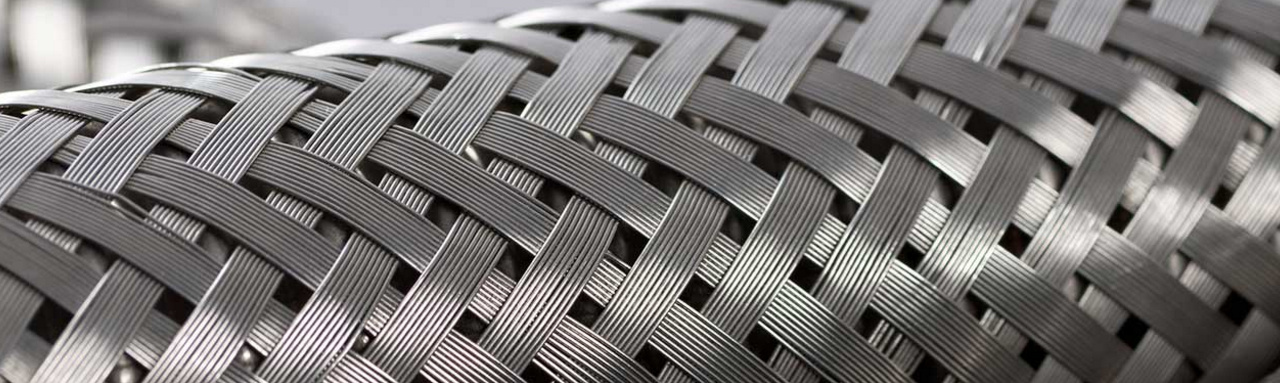

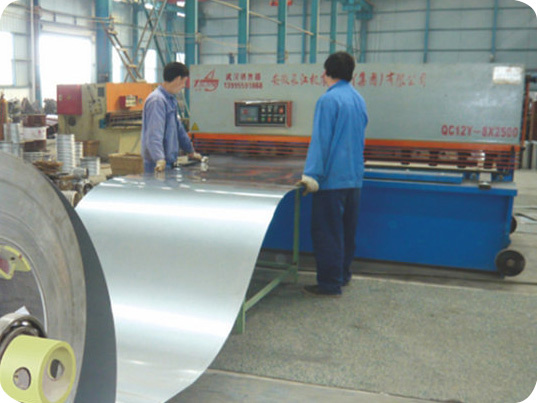

Corrugated Metal Hoses are manufactured as a convoluted tube and are usually fitted with a wire over braid. The convoluted core is produced from stainless steel or nickel alloy sheet with annular or spiral convolutions. For some applications the core can be produced as a multi-ply arrangement. The braid acts to support the core against pressure and also provides a restraint to prevent the expansion of the length of the core under positive internal pressure. For use in higher pressures environments multiple layers of braid is used to increase the pressure resistance of the hose assembly.


NO.	DN	ID	OD	Wall thickness	Weight (Kg/m)
1	12	11.6	18	0.2	0.17
2	15	14.4	21.5	0.3	0.28
3	18	17.4	25.5	0.3	0.34
4	20	19.4	27	0.3	0.38
5	25	24.4	32.5	0.3	0.46
6	32	31.4	40	0.3	0.6
7	40	39.4	50	0.3	0.75
8	50	49.4	63	0.3	0.9
9	65	64.4	81	0.3	1.6
10	80	79.2	98	0.4	2
11	100	99.2	120	0.4	2.6
12	125	124	150	0.5	3.9
13	150	149	180	0.5	4.3
14	200	198.8	240	0.6	6.8
15	250	248.4	300	0.8	11
16	300	298	355	1	17.5
17	350	348	410	1	20
18	400	397.6	460	1.2	25
19	450	447.6	489	1.2	29
20	500	497.6	545	1.2	33.5
21	600	597.6	650	1.2	40.5
