| Prod Model: |
NRB101 |
| Item: |
Ball Valve |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Water Industrial Usage |
Product Description

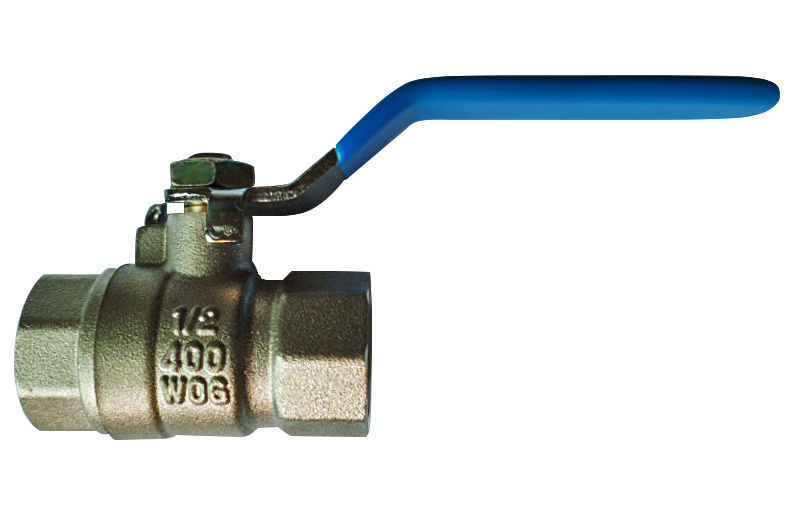

2 pcs full bore brass Ball Valve ,conform to BSEN13828-2003
Including 2PC/3PC gas ball valve and water meter ball valve.
Brass ball with chrome plating ball and steel handle or iron handle

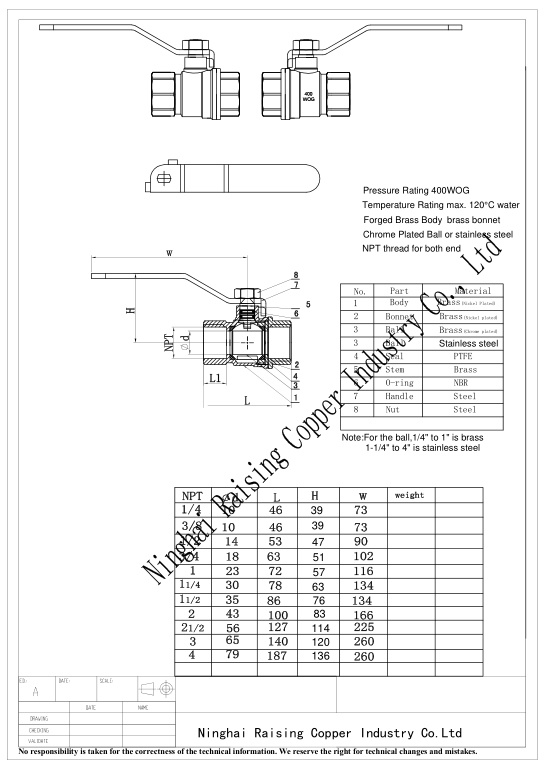

Technical data as below:
Description:
Material |
Brass Body, Brass Bonnet, brass ball, steel handle
Brass can be CZ132,CZ122,CW602,CW617N,C36000, DZR, etc |
Surface |
Natural brass or Nickel plated |
Size |
1/4"To 4" |
Testing Pressure |
100% tested with 0.6MPa - 0.8MPa by air. |
| Suitable medium | Water, no-causticity liquid, and gas |
| Working temperature | -20 to 120° C |
Thread | Compression end and BSP & NPT Female x female or MalexM,FxM for selecting |
Samples Time |
1) 2 days - For our existing samples for reference
2) 30 days - If new size, need make the new mould |
OEM Acceptable |
Yes |
Production Capacity |
100,000 pcs each month |
Packing Details |
Poly bag, inner box, out carton and pallet. |
Payment Term |
T/T ,L/C,WESTERN UNION |
Delivery Time |
30 days to 40 days after confirming all details |
Minimum Order Quantity |
500-2000 Pieces |
Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle or iron handle.Thread: BSP ,NPT
.
Customized Designs are Accepted,We can produce various ball valve according to your request.
Our factory specialized in manufacturing kinds of bronze/brass valves,brass insert for fittings&coupling,we can produce according to your design. Since we are authentic manufacturer ,we will be able to maximize your profit and guarantee good quality,we have ISO9001:2008 certificate.
Ninghai Raising Copper Industry Co., Ltd. Was founded in 2002. Located in Ningbo, zhejiang.
Our factory specialized in manufacturing kinds of ball valves, angle valves, gate valves, check valves, bibcocks, drinking taps, faucets, strainer, fittings&coupling, water meter accessories and so on. We are professional supplier for lockable ball valves, including magnetic & mechanical, straight & angle type. Our company has a 8000 square meter workshop and more than120 employees. In 2007 the sale value was over 10 million dollars. Nowadays we own 46 sets CNC machines, 16 sets of forged machines, and one casting foundry.
Till today we have sold our products to Europe, south America, Asia, etc, we developed new products ferrule & saddle which are popular in Middle East, Asia and so on. We are proud that we have a professional technologist team. We could supply various valves in material of brass & bronze, such as dzr, cw614, cw617, c83600, c84400, LG2, no lead brass, which are suitable for Europe and the USA market. We have obtained ISO9001, CE certificate. We have ability to design and OEM according to clients' reqirement.
We promise that we can give you the lowest price with same quality while the best quality with same price.
