| Prod Model: |
10701030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
30mm |
| Finishing: |
Silver |
| Brand Name: |
Ostartools or OEM |
| Package: |
OPP Bag/Customized |
| Application: |
Ceramic Tiles,Hard Plastics,Fibro Cement,and Fibre |
| Art Number: |
10701030 |
| Arbor: |
Round |
Product Description
Product Description
Diamond drills are used on glass, stained glass, ceramics, ceramic tile, porcelain, porcelain tile, limestone, marble, granite, slate, stone and fiberglass. Drills used on wood or metal have a sharp metal tip or teeth, that cut into the material. These types of drills do not work on glass, marble, etc. as the tips do not "bite" into the extremely hard material, and cause heat buildup that burn up the bit and cause "heat fractures" in the material. Carbide tipped Spear Point drills are sometimes used on the "softer" types of hard materials - like untempered glass, sandstone and marble and some of the less hard ceramic and porcelain tiles. While they sometimes work, they tend to chip the hard surface very badly, leaving a rough hole and often cause breakage due to fractures from the chipping and heat. Diamond drill bits are designed differently - they have diamond tips that "grind" into the extremely hard materials.
Core drills only drill out a portion of the resulting hole, so they tend to drill much faster than blunt nose drills. Core drills can be used to drill large holes and can be used on most non-ferious hard materials such as glass, stained glass, ceramic, porcelain and fiberglass, ceramic or porcelain tile, limestone, slate, marble, granite and other stone materials. Bonded diamond drill bits have the diamonds bonded to the the edges of the drill bit tip, generally using an electroplate bonding process. These drill bits are generally slow-speed bits and are fairly inexpensive. During use, the diamonds eventually wear off of the bit due to the hardness and abrasiveness of the material being drilled. Bonded diamond drill bits must not be used on metal, concrete, or masonry and require proper speed and adequate water lubrication.
The life of any type of diamond drill bit depends upon the hardness, abrasiveness and thickness of the material being drilled and the specific drilling techniques used (drill speed, pressure and lubrication), however, the diamonds of a drill bit don't actually wear out as much as they wear off due to heat and friction caused by the extreme hardness and abrasiveness of the material drilled. Drilling in glass, ceramic, marble, etc. is a slow process compared to softer materials such as wood or even metal. A fairly deep hole can be drilled in wood in just a few seconds, while it can take 20 or 30 seconds or longer to drill a hole in standard 1/8" thick glass. In some very hard stones and tiles, it may take 2 to 3 minutes to drill only 1/4" deep. Using diamond bits to drill in hard materials is not difficult, however, it takes time. A person should consider that they aren't 'drilling' a hole, as much as 'grinding' a hole.

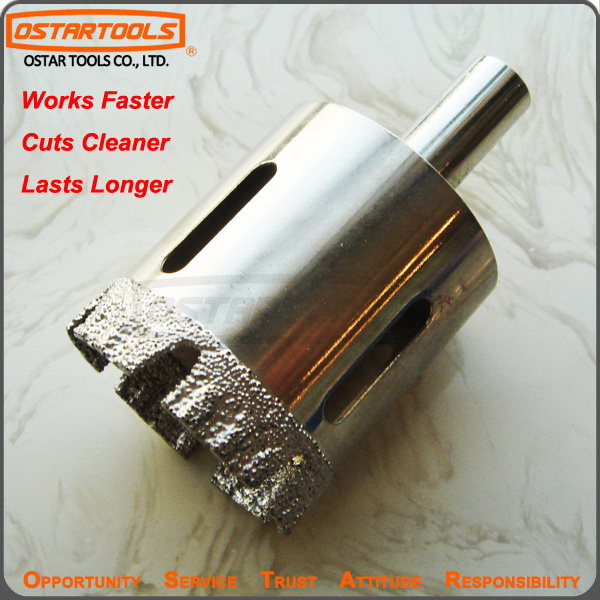

These hole saw drill bits are tipped with diamond grit and are capable of drilling holes through ceramic tiles,hard plastics,fibro cement,and fibreglass.
Very similar to diamond drill bits,they are designed to be dipped in water after
20 seconds of use.There is usually an optional guide that can supply a steady of stream of water and also centre the bits,as they don't have a centring drill bit.
If this guide isn't purchased,the hole saw must be started on a 45 degree angle to the surface,and once it bites must be moved to 90.
They usually have a maximum depth of cut of about 30mm.
Some will also have an arbor attachment available.
To ensure efficient cutting,it's advisable after every cut to remove
any material that may be still in the drill bit with a thin
piece of metal.
Specs:
| 10701030 | 30 | 1-3/16" | 10701095 | 95 | 3-3/4" |
| 10701032 | 32 | 1-1/4" | 10701098 | 98 | 3-7/8" |
| 10701033 | 33 | 1-5/16" | 10701102 | 102 | 4" |
| 10701035 | 35 | 1-3/8" | 10701105 | 105 | 4-1/8" |
| 10701037 | 37 | 1-7/16" | 10701108 | 108 | 4-1/4" |
| 10701038 | 38 | 1-1/2" | 10701111 | 111 | 4-3/8" |
| 10701040 | 40 | 1-9/16" | 10701114 | 114 | 4-1/2" |
| 10701041 | 41 | 1-5/8" | 10701121 | 121 | 4-3/4" |
| 10701043 | 43 | 1-11/16" | 10701127 | 127 | 5" |
| 10701044 | 44 | 1-3/4" | 10701133 | 133 | 5-1/4" |
