Bridge Expansion Joint, Modular Expansion Joint
| Price: |
US $ 50-100/Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
D160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
Welding |
| Customized: |
Customized |
| Certification: |
ISO9001 |
| Type: |
Modular |
| Material: |
S355jr,St52 |
| Surface Treatment: |
Galvanizing, Painting |
| Warranty: |
5 Years |
| Application: |
Bridge |
Product Description

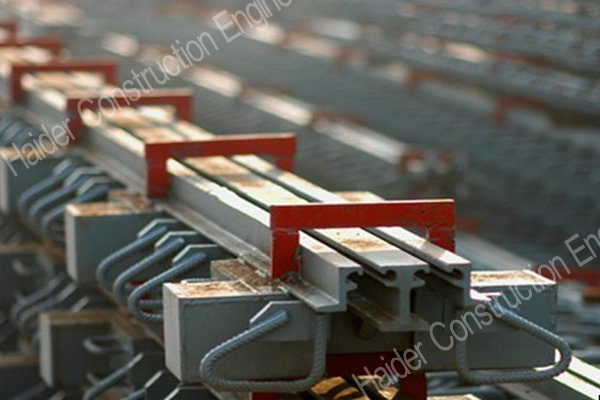

Bridge Expansion Joint, Modular Expansion JointHaider expansion joints includes single rail type and modular type.
Our expansion joint system allows bridge deck movements while maintaining a smooth watertight riding surface.
Engineered to last longer than the bridge deck, joints longevity comes from robust steel support system. They combine the strength to resist traffic impacts with the flexibility to accommodate various deck movements. Supported movement range is from 80 to 640 mm.
Our expansion joint system is technically and economically optimized for this movement range and is best choice for great majority of bridges.
With its simple structure in which rubber is put in between rails of steel, it can accommodate expansion and contraction due to temperature loads or impact loads of a bridge by virtue of expansion and contraction of the rubber.
With its support box bearing, the conventional assembled rail was improved to a monolithic rail, so this product has durability and stability improved over cumulative fatigue and has excellent waterproofing properties.
| Standard | JT/T4-2004 | BS5400 Section 9.2 |
| Rubber | Natural Rubber | Neoprene
CR | Natural
Rubber | Neoprene
CR |
| Hardness(IRHD) | 60±5 | 60±5 | 50±5/60±5/70±5 |
Tensile Strength (M Pa)≥
| 18 | 17 | 17 | 15.5 |
Ultimate Elongation (%)≥
| 450 | 400 | 450/400/350 | 400/350/300 |
| Compression Set | 70 o C×22h | 70 o C×22h | 100 o C×22h |
| <30 | <15 | <30 | <35 |
| Heat Resistance | Test Condition | 70 o C×168h | 100 o C×70h | 70 o C×168h | 100 o C×48h |
| Change in Hardness | -5,+10 | 0,+10 | <10 | <15 |
| (IRHD) |
| Rate of Tensile Strength Reduction(%) | <15 | <15 |
| Rate of Ultimate | <20 | <40 | <20 | <40 |
| Elongation Reduction |
| (%) |
| Ozone Resistance | 25~50pphm,20% strain | 25~50pphm,20% strain |
| 40 o C×96h | 30 o C×96h |
| No Cracks | No Cracks |
Haider, founded in early 2000, is specialized in manufacturing bridge bearing, bridge expansion joint, building expansion joint, and construction bearing. Our company has a registered capital of 8, 800, 000 US dollars, It covers an area of 50, 000 square meters, with a construction area of 20, 000 square meters, there are 200 staff now in our company.
Haider is a modern enterprise which has a leading technology in China, and the advanced production equipment, perfect testing equipment.
It has passed the ISO9001: 2008 International quality system certification and ISO14001: 2004 environmental management system certification.
Haider can design and manufacture many kinds of products which meet the needs of different projects. Currently, the series of products have gained the new practical patent in China, and high-tech products of Jiangsu Province.
We have a strong technical force and a professional installation team, perfect after-sales service in our company. Over many years, our products have been widely used in highway, railway bridges, public buildings, etc. We have also successfully take participate in many national key projects and many landmark project. Such as: Pudong International Airport, Beijing Capital International Airport and Hangzhou International Airport, Chengdu International Airport, Xi'an International Airport; Shanghai Maglev, Shanghai light rail, light rail Beijing, Nanjing Metro; Shanghai Hongqiao hub, and Guiyang six broad river bridge, Hunan Zhuzhou Xiangjiang River Bridge, Wuhan Tianxingzhou Yangtze River Bridge, Zhejiang Zhujiajian Bridge.
Now we have many customers coming across the country and Southeast Asia, the Middle East, Africa, Australia, South America and many other countries and regions, Our products also have been highly praised by our customers.
Haider is always actively promoting the application and development of new products in the worldwide. Our company has edited or supervised the design of a variety of national standard atlas and industry standards.
Haider welcomes the design institutes across the country, construction companies to choose our products. We are always willing to provide our clients with the highest quality products, best service.
