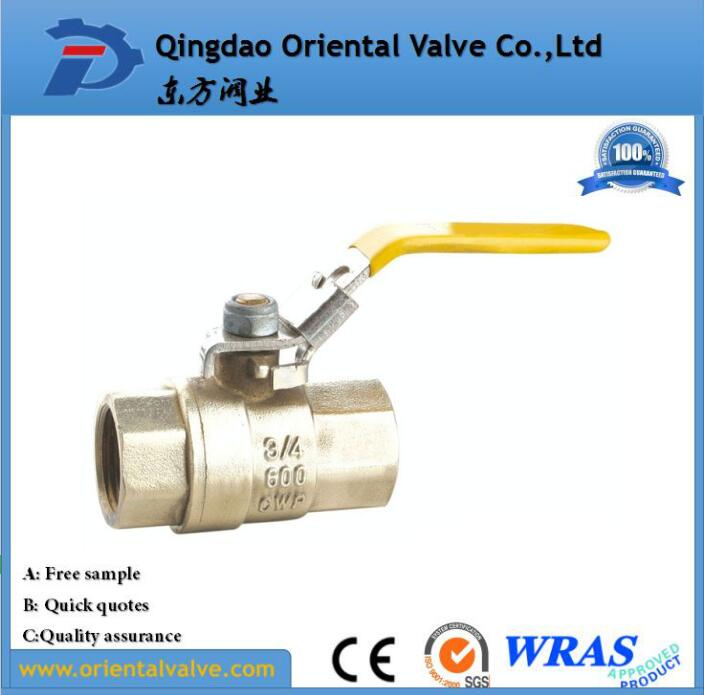

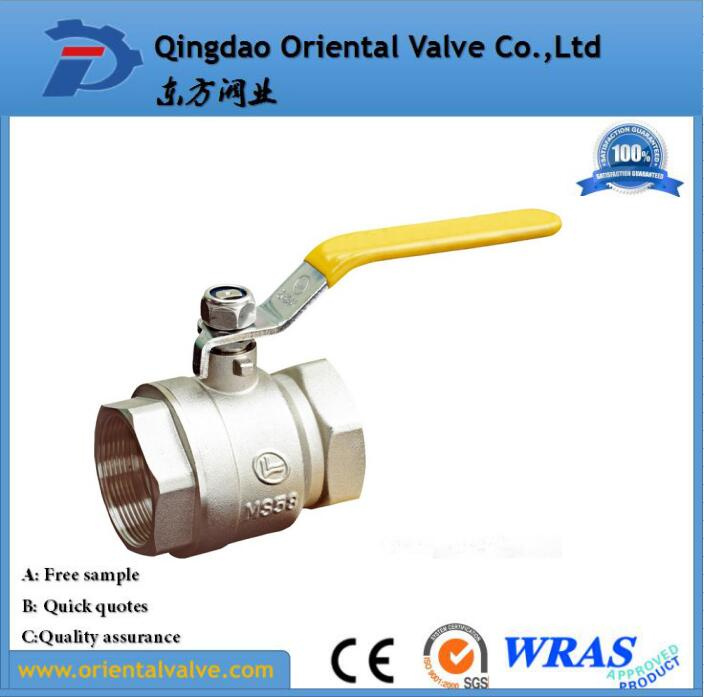

BSPT/NPT Thread Type Brass Ball Valve with Chrome Plated

Name: BSPT/NPT Thread Type Brass Ball Valve with Chrome Plated
Brand: tool-buy.com
SKU: 717377172
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	US $ 0.78-15.21/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Qingdao Oriental Valve Industry Co., Ltd.

Showroom Product Company Profile

Prod Model:	OV-heavy type-2016
Color:	Primary Colour, Nickle Plated, Chrome Plated
Pressure:	10kg,16kg, 25kg,40kg
Size:	1/2"-4"
Material:	Brass
Connection Form:	Thread
Channel:	Straight Through Type
Structure:	Flexible Ball Valve
Type:	Fixed Ball Valve
Application:	Water Industrial Usage

Product Description

Sweat Brass Ball Valve .
1.Model No. :
OV-BV23
2.Material:

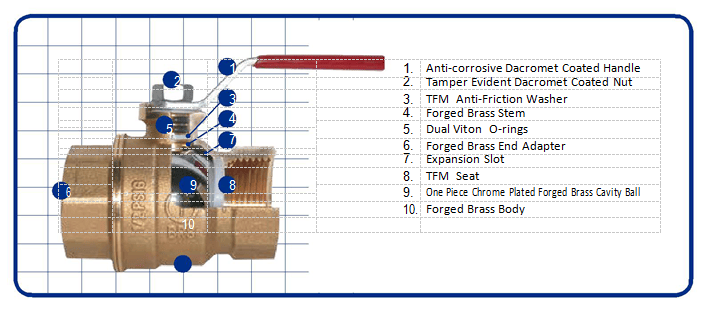

Part	Material
Body	Brass:	Hpb 57-3	Hpb 59-1	CW617N	CW614N	DZR	lead free brass
Bonnet	Brass as above
Ball	Brass with chrome plated			Iron with chrome plated
Stem	Brass with chrome plated or not			Iron with chrome plated or not
Sealing	PTFE(Teflon)				Plastic
Handle		Iron	Stainless steel		Zinc	With plastic coated
Nut		Iron	Zinc	Stainless steel		Brass
O-Ring	NBR

3.Technics:

Temperature: -20°C≤T≤150°C

Pressure: P≤3.0MPa=30bar=435psi

Medium: Water,Oil,Gas,etc.

Thread: F×F threaded as ISO228,BSP,NPT,UNION,ect.

Full port.

Surface treatment: brass yellow,nickel plated,chrome plated.

4.Size & Screw Thread:

1/4''

3/8''

1/2''

3/4''

1''

1-1/4''

1-1/2''

2''

2-1/2''

3''

4''

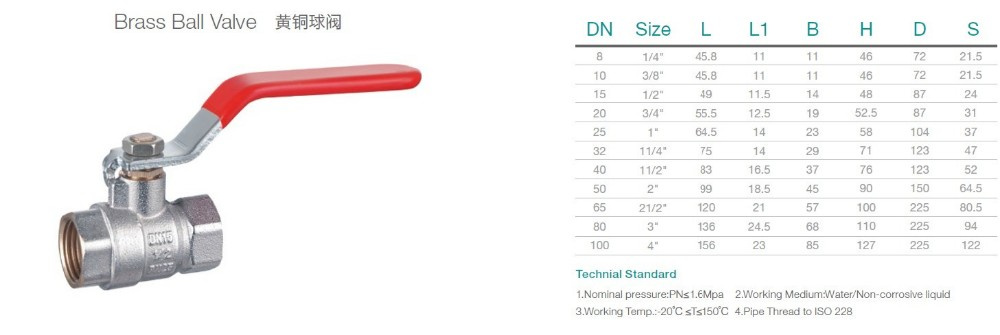

5.DRAWING:

6. How to seach the product?Use below key words can easy found the product.
rubber lining brass ball valve

brass ball valve sanitary ball valve din price ball valve

brass ball valve stainless steel ball valve aluminium body ball valve brass ball valve

ball valve body ball valve gearbox valve brass ball ball type ball valve
lug type ball valve motorized ball valve ball check valve 6 inch ball valve

7.Packaging & Delivery

Packaging Details:	Packaging Details: Single valve is packed with foam plastic bag. A shipment of valves are packed with plywood case. Delivery Detail: 25days

♦ Our regular packing is that the ball valve and parts are placed in the carton, finally are placed on the pallet
or in a big wooden case if the customers have this requirement of package of ball valve.

♦ Of course if the customers have specifical packing requirement, we can make adjustment according to your request.

♦ Standard Carton Size: 32cm×22cm×20cm

♦ Standard Wooden Case Size: 105cm×105cm×95cm

♦ Sually,48 small cartons are loaded into a big pallet.(We can make adjustment on the size according to the cargo quatity.)
