Building Accessories Stressed End Monostrand Anchor

Name: Building Accessories Stressed End Monostrand Anchor
Brand: tool-buy.com
SKU: 704632662
Availability: InStock
Rating: 4.9 (29 reviews)

Price:	US $ 1SET
Trade Terms:	FOB,CFR,CIF
Min Order:	100SET
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Henan Prestressing Equipment Co., Limited

Showroom Product Company Profile

Prod Model:	CNM-YJM15(13)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	20crmnti, 45# Steel, 40cr, Alloy Steel, etc.
Color:	Black, or Golden Corlor, Non-Galvanized Color
Diameter:	12.7mm, 15.24mm, 17.8mm, 21.8mm, 28.6mm
Certificate:	SGS, BV, ISO9001-2008
Complete Anchorage System:	Anchor Head, Wedge, Bearing Plate, Spring Ring
Wedge:	Two Parts or Three Parts
Anchor Head Hardness:	Hrb70 -100
Wedges Hardness:	HRC58-65
Performance:	Good
Price:	Low

Product Description

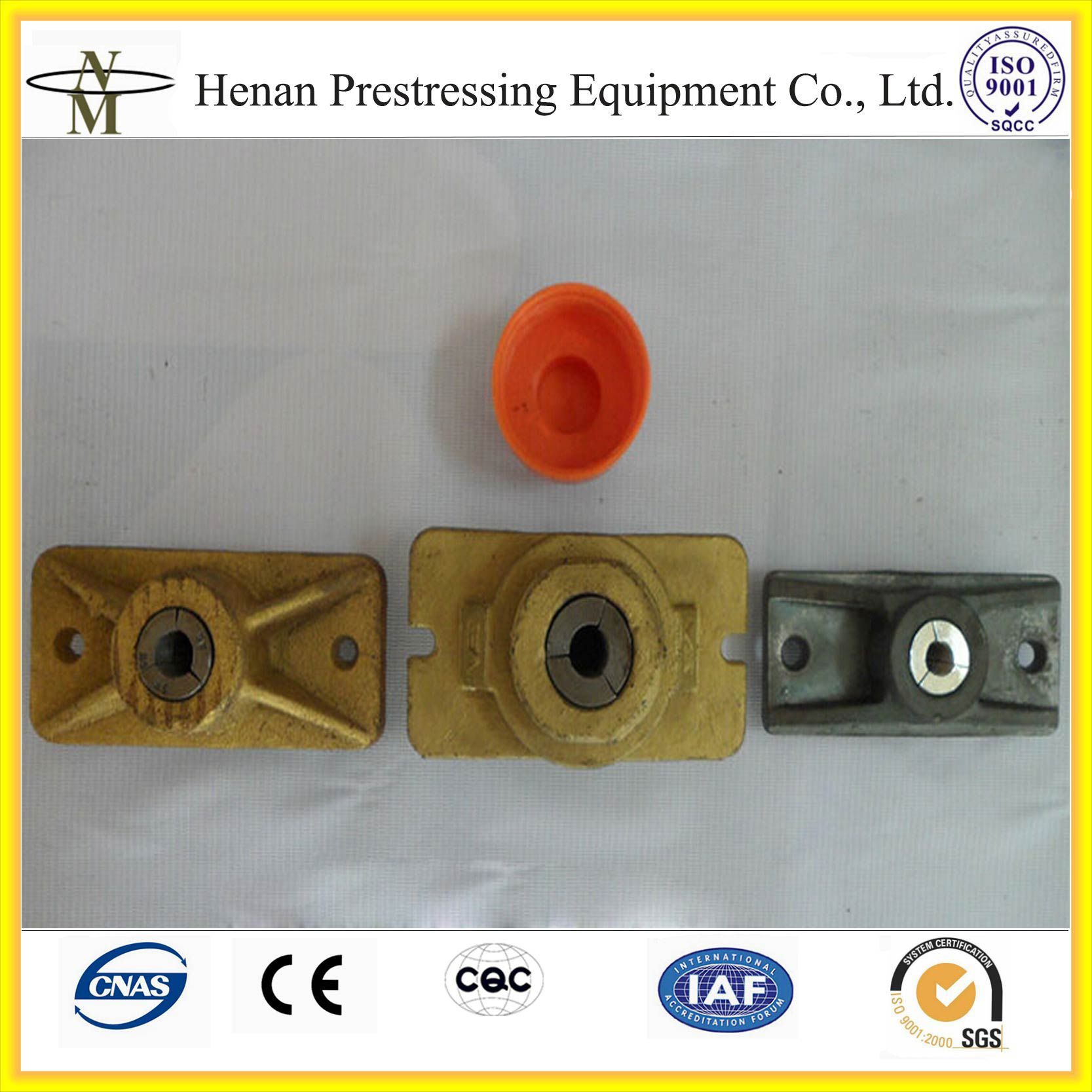

Building Accessories Stressed End Monostrand Anchor

1. Model Name: YJM5(5mm), YJM7(7mm), YJM9(9mm), YJM13(12.7mm), YJM15(15.24mm), YJM18(17.8mm), YJM22(21.6mm/21.8mm), YJM28(28.6mm), etc.

2. Diameter for Steel Wire and PC Strand: 5mm, 7mm, 8mm, 9.52mm, 12.7mm, 15.24mm, 17.8mm, 21.8mm, 28.6mm, etc.

3. Materials: 20CrMnTi, 45# steel, 40Cr, alloy steel, carbon steel.

4. Anchor Hardness: HRB70 -100(Remarks: Our Wedges Hardness: HRC58-65).

5. Applications: Coal mine, bridge construction, railway and highway construction, underground structures,buildings and channel construction, ect.

6. Features:

1). YJM5 applies to 5mm steel wire.
2). YJM7 applies to 7mm steel wire.
3). YJM9 applies to 9mm and 9.52mm steel wire.
4). YJM13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.
5). YJMM15 applies to 15.2/15.24mm, 15.7mm strand.
6). YJM18 applies to 17.8mm pc strand.
7). YJM18 applies to 17.8mm pc strand.
8). YJM22 applies to 21.6/21.8mm pc strand.
9). YJM 28 applies to 28.6mm strand, etc.

7. Our Advantages:

We are PT Manufacturer from China, our full products range for post tensioning and pre-strssing construction:

1. Materials: pc strand, YJM anchor system(monostrand anchor, multistrands anchor), mining anchor system, ducts(metal ducts, HDPE plastic ducts), PC Strand.

2. Equipment: Hydraulic Jack(QYC mono jack, YDC multi-strand tensioning jack), electric oil pump, YH30 embossing machine(onion jack), GYJ500 extrusion machine, ZG130 ducts making machine, grouting pump and mixer for post tensioning).

3. Bridge Equipment: Bridge Crane, Bridge Girder Launching Machine, Bridge Girder Transporting Vehicle, etc.

8. FAQ:
1): Q: Do you supply OEM Service or Customized-made Anchorage?
A :Yes, we do. Actually, we have cooperated with many famous PT Supplier in whole world.Just send us your drawings when need to be customized.

2) Q: Do you provide free samples?
A: Yes, sure, we provide free samles for your testing.

3) Q: How is the delivery lead time:
A: we have large production capacity, usually, 3 to 5 working days to finish goods.

4) What is your Minimum Order?
A: MOQ: 100 pieces.

5) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

6) Q: How to transport the goods:
A: by shipping, airflight, express.

9. YJM13-QYM Stress End Anchor System Technical Data:

		ΦD	B	A	L	ΦC	ΦG	ΦH	d	n
YJM13-QYM1	1	40	45	90	60	Φ35	60	30	6	3	QYC270
YJM13-QYM2	2	78	46	120	80	Φ40	110	30	6	3	YDC 650
YJM13-QYM3	3	78	46	120	80	Φ45	120	30	8	3	YDC 650
YJM13-QYM4	4	85	46	130	85	Φ50	130	40	10	4	YDC 1000
YJM13-QYM5	5	92	46	140	97	Φ50	140	50	12	4	YDC 1500
YJM13-QYM6/7	6/7	103	48	160	120	Φ60	160	50	12	4	YDC 1500
YJM13-QYM8	8	116	48	170	120	Φ60	170	50	12	4	YDC 2000
YJM13-QYM9	9	126	50	180	150	Φ70	180	50	12	4	YDC 2000
YJM13-QYM10	10	136	50	192	160	Φ80	180	50	14	4	YDC 2500
YJM13-QYM11/12	11/12	136	50	192	160	Φ80	190	50	14	5	YDC 2500
YJM13-QYM13	13	146	50	210	170	Φ80	210	50	14	5	YDC 3000
YJM13-QYM14	14	146	55	210	170	Φ80	210	50	14	5	YDC 3000
YJM13-QYM15	15	166	55	220	205	Φ90	220	60	14	5	YDC 3500
YJM13-QYM16	16	176	55	250	220	Φ90	250	60	14	5	YDC 3500
YJM13-QYM17	17	176	60	250	230	Φ90	250	60	16	5	YDC 3500
YJM13-QYM18	18	176	60	250	230	Φ90	250	60	16	5	YDC 4000
YJM13-QYM19	19	176	60	250	230	Φ90	250	60	16	5	YDC 4000
YJM13-QYM22	22	186	65	260	240	Φ200	260	60	16	6	YDC 5000
YJM13-QYM25	25	206	70	280	240	Φ200	280	60	18	6	YDC 5500

10. YJM15-QYM Stress End Anchor System Technical Data:

Anchor Model	The Number of PC Strand	Anchor Head/Plate	Corrugated Pipe I.D.	Anchor Barrel	Spiral Reinforcement		Tension Jack Model
Anchor Model	The Number of PC Strand	A x B x ΦD	ΦD	ΦE x F	ΦG x ΦH x L	Cycles
YJM15-1	1	80x80xΦ12	Φ50	Φ45x45	70x Φ6x30	4	QYC270
YJM15-2	2	135x70xΦ58	Φ50	Φ78x45	100x Φ8x40	4	YDC 1000
YJM15-3	3	135x70xΦ58	Φ50	Φ88x48	100x Φ8x40	4	YDC 1000
YJM15-4	4	136x80xΦ62	Φ55	Φ98x48	130x Φ10x40	4	YDC 1000
YJM15-5	5	146x80xΦ62	Φ55	Φ103x48	140x Φ10x50	4	YDC 1100
YJM15-6	6	162x100xΦ78	Φ70	Φ117x48	160x Φ12x50	4	YDC 1500
YJM15-7	7	162x100xΦ78	Φ70	Φ117x50	160x Φ12x50	4	YDC 1500
YJM15-8	8	176x120xΦ88	Φ80	Φ127x50	170x Φ14x50	5	YDC 2000
YJM15-9	9	183x120xΦ90	Φ80	Φ137x50	180x Φ14x50	5	YDC 2000
YJM15-10	10	210x120xΦ100	Φ90	Φ147x50	210x Φ14x60	5	YDC 2500
YJM15-11	11	210x140xΦ100	Φ90	Φ157x50	210x Φ14x60	5	YDC 2500
YJM15-12	12	210x140xΦ100	Φ90	Φ157x50	210x Φ14x60	5	YDC 2500
YJM15-13	13	210x140xΦ100	Φ90	Φ157x55	210x Φ14x60	5	YDC 3000
YJM15-14	14	234x160xΦ100	Φ90	Φ167x60	230x Φ16x60	5	YDC 3000
YJM15-15	15	234x160xΦ100	Φ90	Φ167x60	230x Φ16x60	5	YDC 3500
YJM15-16	16	244x180xΦ100	Φ90	Φ177x60	230x Φ16x60	5	YDC 3500
YJM15-17	17	250x180xΦ100	Φ90	Φ187x65	230x Φ16x60	5	YDC 3500
YJM15-18	18	265x200xΦ110	Φ100	Φ187x65	250x Φ16x60	5	YDC 4000
YJM15-19	19	265x200xΦ110	Φ100	Φ187x65	250x Φ16x60	6	YDC 4000
YJM15-20/21/22	20/21/22	310x240xΦ130	Φ120	Φ215x70	300x Φ18x60	6	YDC 4600
YJM15-23	23	310x240xΦ140	Φ130	Φ217x70	300x Φ22x60	6	YDC 5000
YJM15-25/26/27	25/26/27	350x290xΦ140	Φ130	Φ260x90	310x Φ22x60	7	YDC 6500
YJM15-30/31	30/31	370x290xΦ150	Φ140	Φ290x105	400x Φ22x60	8	YDC 6500
YJM15-34/37	34/37	465x340xΦ170	Φ160	Φ320x112	450x Φ22x60	8	YDC 8000
YJM15-43/44	43/44	500x450xΦ170	Φ160	Φ345x130	470x Φ22x60	8	YDC 10000
YJM15-54/55	54/55	500x510xΦ170	Φ160	Φ380x160	520x Φ24x61	8	YDC 12000

Welcome to your inquiry!
Mobile Phone No.: +8613673713569
Jason Wang

Company Profile:

Henan Prestressing Equipment Co., Ltd. is a professional company which is engaged in the production of prestressing anchorages, wedges, coupler and stressing equipment, PC strand, ducts for PT construction. We have more than 1050 worker, 35 engineers, 42 technicians with more than 26 workshops. Our factory have reached more than 3000 square meters and have set subsidiary factory of anchorage and equipment factory, PC strand factory, ducts factory. Now we have exported more than 35 countries.

Main Products:

We are a PT manufacturer that supply full complete set of Materials and Equipment for Post-tensioning And Pre-stressing Construction. Include PC strand, ducts, steel strip, YJM Multi-strand Anchor System: YJM13(0.5")/YJM15(0.6") 2 holes to 55 holes Anchor System, YJM Mono-strand Anchor System, BM Flat Anchor System, YDC Hydraulic Jack(Multi-strands Tensioning), YB Electric Oil Pump, YH30 Embossing Machine, GYJ500A Extrusion Machine, ZG Metal Ducts Making Machine, Grout Pump And Mixer, etc.

Our Projects:

As a biggest PT manufacture in China we have completed many famous projects at home and abroad. Such as Mongolia Bridge, Donghai Bridge, Vietnam Bridge Apartment, Zhengzhou Yellow River Road-Rail Bridge, Humen Bridge, Zhengzhou East Railway Station, Swivel Bridges Across River, China Railway No. 9 Group Jinzhou Bridge, The Chang Jiang River Bridge in Wuhu, Bridge in Sheng Zhou of Zhen Jiang, Shandong Dadiandi Yellow River Bridge Construction Invextment Co., Ltd. China Railway 20 Bureau Group of Hubei Enli Expressway No. 3 section, Shihe Bridge of the Beijing-shenyang Expressway, Hohhot Railway Bureau Bridge Beam Factory, China Railway 13 Bureau Group Wanxian Wuqiao Overpass Beidge Jiao-wen Expressway All Gronts, Beijing National Stadium, National Aquatic Center, etc.
