| Prod Model: |
SYCFS-20 |
| Purity: |
93~99% |
| Oxygen Output: |
20nm3/H |
| Service Life: |
More Than 10years |
| Application: |
Fish Farming/Medical/Industrial/Medical |
| Color: |
Blue, White or Customer Request |
| Outlet Pressure: |
4~6bar |
| Dew Point: |
-60~-45 Degree |
| After-Sale Service: |
Available |
| Power Rate: |
0.1kw |
| Name: |
Filling Oxygen Cylinder |
| Usage: |
Oxygen |
| Condition: |
New |
Product Description
building an oxygen station for filling oxygen cylinder

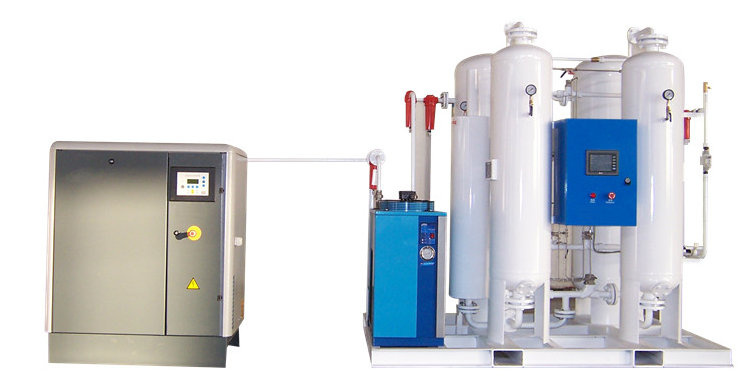

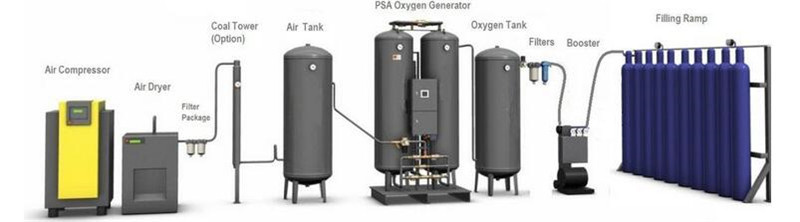

Oxygen gas plant filling oxygen cylinder system self-contained oxygen system can generate oxygen and fill the oxygen cylinders on site. As a completely standalone oxygen generation system, the Oxygen making & cylinder filling system is fully automated with compact and easy operation design, it can produce oxygen and fill the oxygen cylinders based on actual demand. The Oxygen making & cylinder filling system is one of the best solutions for the small gas businesses; it is affordable and offers a new profit center for your oxygen business.
How to build an oxygen station for filling oxygen cylinder:When you plan to build an oxygen gas station, pls prepare the answers of below questions in advance, and then contact me, I will give you experienced suggestion:1) How many cylinders do you want to fill per day(24hours), and how many cylinders can you sell per day2) O2 purity: _____%( We have three kinds, 93%, 95 and 99%)3) Voltages and Frequency : ______V/___HZ 1 and 3 phases4) Local temperature and elevation: 5) Your main customer's usage of gas: | Industry/fields | Application |
| Hospital | Medical oxygen for breath |
| Burning process (glass craft, ampoule making, thermal power) | Enhances burning efficiency |
| Ozone generation | Raw material to make O3 |
| Waste water disposal | Oxidization of waste content |
| Aquaculture | Oxygen enriched water improves life of fishes |
| Fermentation | Better atmosphere for fermentation |
| Diving, mountaineering, | For breathing |
| High-altitude flight, interplanetary flight, civil aviation | For breathing |
| Cutting, welding | Burns to produce heat |
| Engineering Blasting | To make liquid oxygen explosive |
| Metallurgy | Ironmaking, steelmaking |
| Oxygen enriching | Bar, meeting room, office, dorm, homes |
| Mining | Reacts with minerals to increase separation rate |
| Chemical engineering | To make vitriol, nitric acid, etc. |
| Paper and pulp | Pulp bleaching |
2.Allowances
Before building oxygen gas station for filling oxygen cylinder , you must get the license or permission from your local government, and you can get the detailed request from the related Web sites, and I will prepare the documents you need as possible as we can.
3. Designing
When all is done, pls contact me , our engineer will supply the layout drawings and machine room drawing of oxygen gas station for filling oxygen cylinder for you, you can follow to prepare your machine room. If you have a machine room already, pls give me its dimension, our machine will be designed accordingly.
There is no any special request for machine room, only need good ventilation with window, cement floor, and a little drain hole, light and power.
4.Operation and Operator
Only one operator is enough to operate the oxygen machine for filling oxygen cylinder, we can send our engineer to your station for guidance and training , and you also can dispatch your engineer to our factory for free training at any time. And all service by phone,mail,fax and internet will be free.
Only one worker can do all work for filling cylinders, Every 4~5 hours , he should change cylinders one time , and it will take about 20minutes to do. Even if he forgets to do on time, it doesn't matter, there is safe valves, the system will stop work atomatically.
5. Profit Percentage of filling oxygen cylinder
Taking below as an example, oxygen gas purity is 95%, except iron cutting, it can be used for any purpose. If you want to fill 60 cylinders (Cylinder:40Liter,150 bar) per day ( 24hours), it will take 720KW electricity at most , and it means that 12kw electricity for each cylinder at most. In China , the industrial electricity's unit price is $0.15, then the cost of per cylinder oxygen gas is $0.9, and the lowest selling price in China is $5.5/cylinder, and the rental of cylinders is another profit for you.

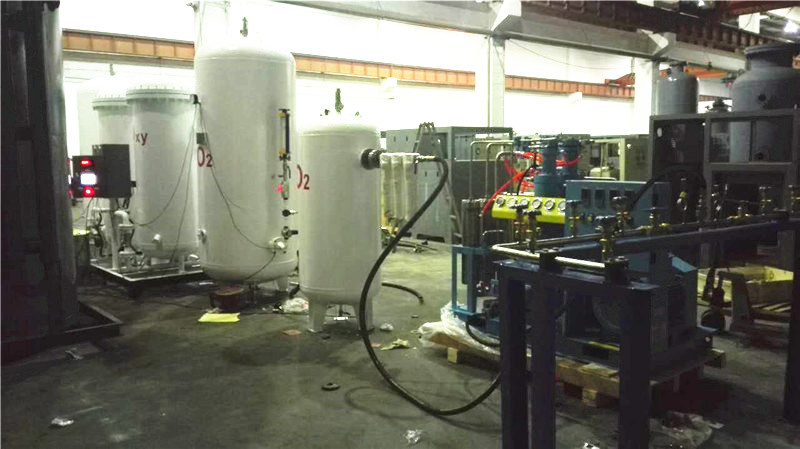

Oxygen station for filling oxygen cylinder in Ethiopia:
About Us:BEIJING SUNNY YOUNG TECHNOLOGY CO.,LTD have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, SUNNY YOUNG sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. SUNNY YOUNG is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us.
SUNNY YOUNG is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service.
COMPANY BUSINESS- PSA On-site N2 generators
- General purpose nitrogen generators
- High purity nitrogen generators
- Membrane N2 generators
- Nitrogen Purification Equipment
- PSA Oxygen generator
- Industrial oxygen generator
- Medical oxygen generators
- Membrane O2 generators
- Spare parts&Cosumables of N2/ O2 generators
- Equipment selection and matching, technician training, installation and commissioning.
Contact Us:
If you want to know more about building an oxygen station for filling oxygen cylinder . Pls feel free to contact with me.
