| Prod Model: |
KQ-HDR55 |
| Size: |
From 200mm to 1500mm |
| Inner Material: |

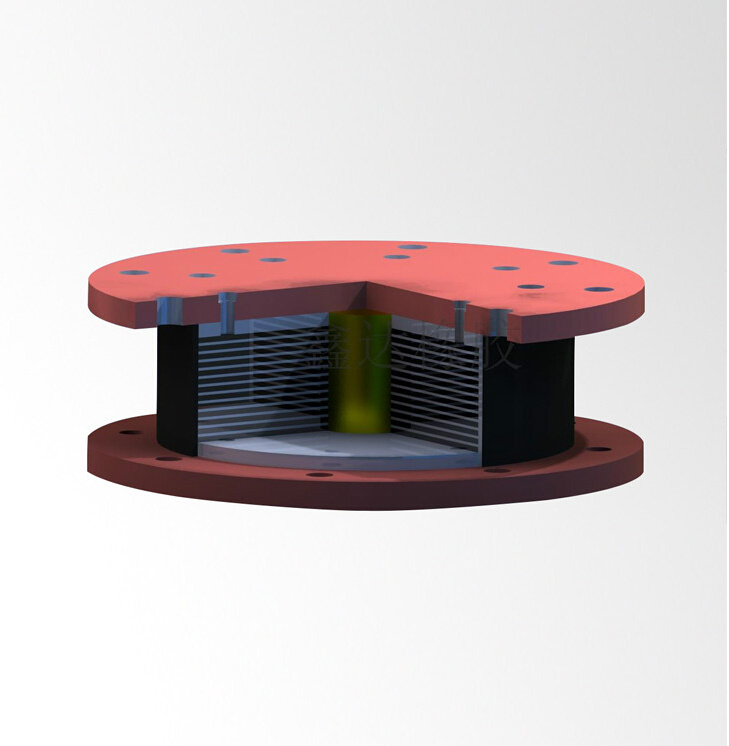

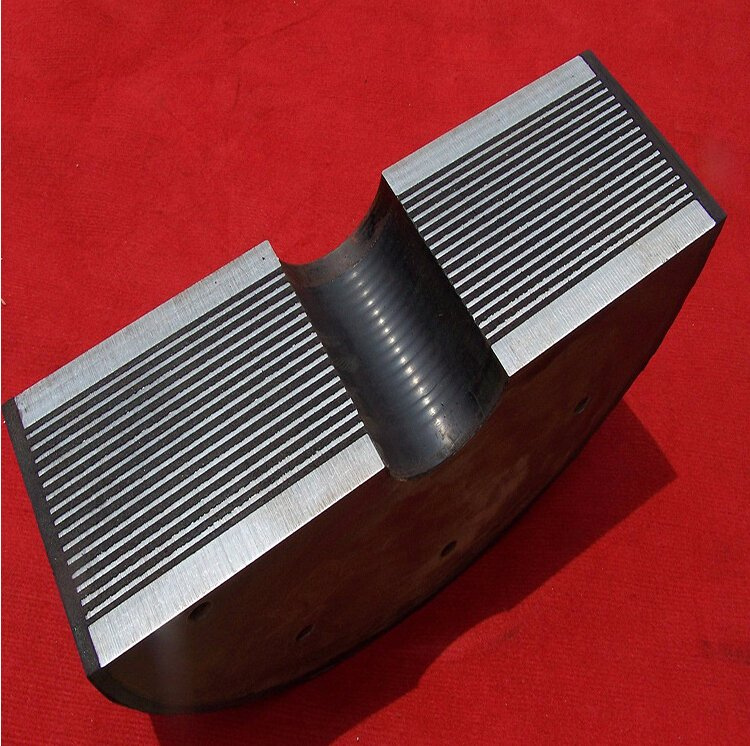

Rubber Layers and Intenal Metal Plates |
| Bearing Capacity: |
400-30000kn |
| Product Name: |
Hdr High Damping Rubber Bearing |
Product Description

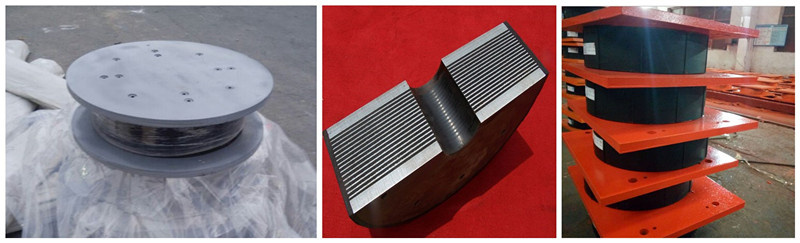

High damping rubber bearingsHigh damping rubber bearing, which is made of high resistance rubber bearing in accordance with the national standard GB20688 design are also called HDR support, it is added in natural rubber compounding agent, used to improve the damping properties of rubber (increasing hysteresis loss and reduce the storage modulus), laminated products and then use this with a damping effect of rubber the approximate and common rubber bearing structure of a steel plate and a rubber composition by thermal curing.
The product has good isolation performance and wide range of application. It is a new type of bridge and building construction products with higher cost performance. Because of its simple manufacturing technology and reliable mechanical properties, it has been widely applied and developed after the 5.12 China earthquake.
Product features:
1. Vertical bearing capacity, horizontal restoring force and damping (energy absorption) trinity;
2. The hysteretic characteristic of support (load deformation curve) is full and the energy consumption is remarkable;
3. Rubber formula improved, the equivalent damping ratio of more than 12%;
4. Low Maintenance management cost (without other damping device);
5. After earthquakes, the residual deformation is very small and needs no replacement;
6.High damping bearing surface covered with rubber protective layer, protect the internal rubber from ozone, ultraviolet light influence, have better aging resistance, 50 years equivalent damping ratio is less than 2%;
7.HDR high damping rubber has low temperature dependence and is widely used in different climatic regions;
8.HDR high damping rubber, like natural rubber, has superior creep properties.
Design principle:
Vertical bearing capacity: through the steel plate to provide stable and reliable vertical bearing capacity to ensure the daily use of buildings safe and reliable.
The level of stress, with high strength using natural rubber, and the steel plate bonding reliability, the horizontal direction in daily vibration, wind load and earthquake giant shock wave impact, will not guarantee the building because of the sudden internal damage caused by failure.
Isolation design theory: the damping formula performance special consumption transfer in the earthquake vibration energy level, when the earthquake strikes on buildings provide support vertical, horizontal direction will not transfer energy to all buildings in seismic wave action in reciprocating vibration energy is converted into heat consumed, greatly reduce the level of the earthquake force of the wave structure under bad effect. Thus reducing the earthquake damage to the building capacity. Application of high quality high damping rubber bearing

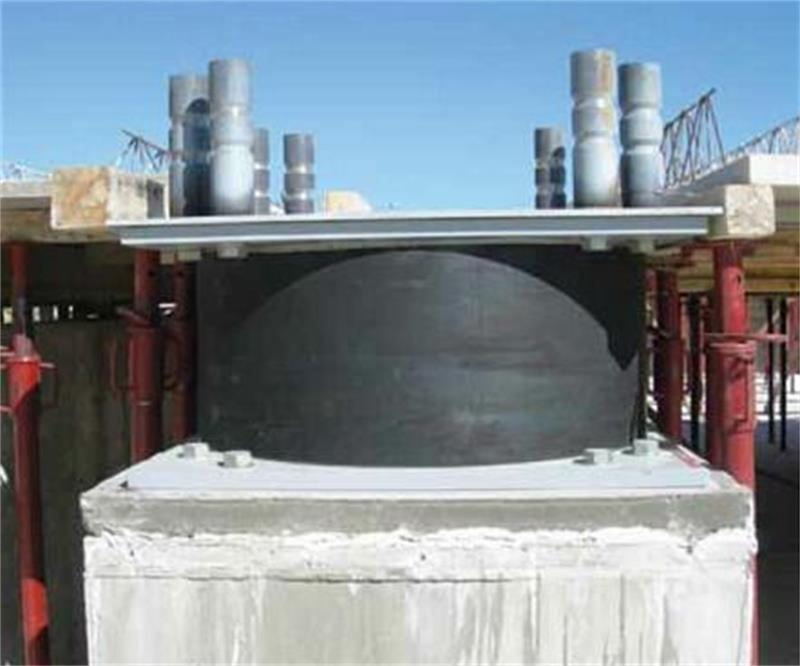

High damping rubber bearing(HDRB) are used in bridges and constuction structures.
It can achieve lateral and vertical damping effect, especially applicable to the basic vibration
reducing system.
For the regions which have special requirements on the environment, such as residential
apart buildings, office buildings and public parks etc, the bearings can also be widely used.

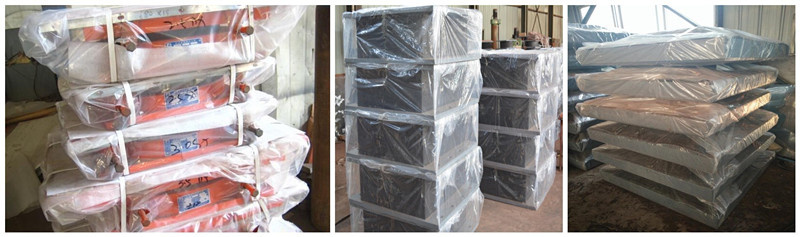

Package and DeliveryPacking Details : Packing, platic film, pallets
Delivery Details : 15-30 days after deposite
FAQsQuestion 1:How do base isolators work?
Answer: Base isolation is a technique developed to prevent or minimise damage to buildings during an earthquake. It has been used in New Zealand, as well as in India, Japan, Italy and the USA.
A fixed-base building (built directly on the ground) will move with an earthquake's motion and can sustain extensive damage as a result.
When a building is built away (isolated) from the ground, resting on flexible bearings or pads known as base isolators, it will only move a little or not at all during an earthquake.
Question 2: Can the customer make a sample order?
Answer: Yes.We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
