| Prod Model: |
standard |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Building Materials Cold Pressing Threadless Rebar |
| Application: |
Building Project |
| Size Of Coupler: |
16mm-40mm |
| Use: |
Connect Two Rebar |
| Product Standard: |
Jgj107-2010/Aci318 |
| Type: |
Cold Forging Coupler |
| Structure: |
Universal |
| Flexible Or Rigid: |
Rigid |
| Material: |
Carbon Steel |
| Standard: |
Standard |
| Connection: |
Cold Extrusion |
Product Description

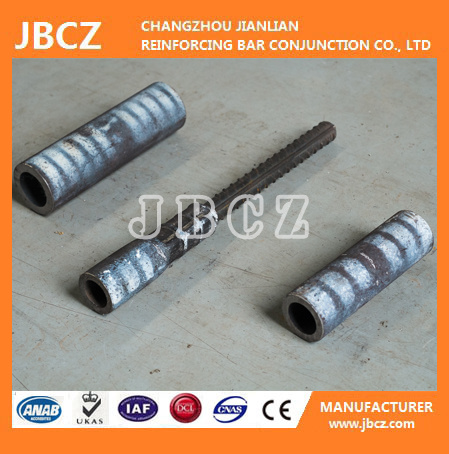

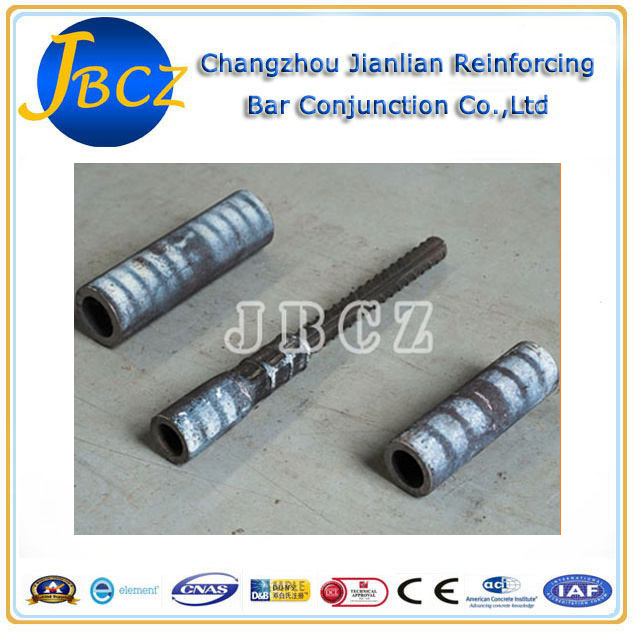

Building Materials Cold Pressing Threadless Rebar Coupling:
1.Description of Cold Extrusion Press System:
This system contains YJ650 machine, YJ800 machine and coupler. The products meets the requirement of JGJ108-96.
1. One full set of YJ650: can process rebar whose diameter is from 16mm to 32mm.
|
2. One full set of YJ800: can process rebar whose diameter is from 32mm to 40mm.
|
3. One full set of YJ650 and PRESSURE EQUIPMENT of YJ800 can process 16mm-40mm.
|
2.Working principle:
It can link the rebar with sidewise extrusion by the cold extrusion press machine, make the coupler plastic deformation then occlude tightly with the steel in order to link the rebar.
3. Advantages:
It belongs to Grade 2 connection
(1)The tensile strength of rebar splicing is very strong, it can meet requirement of standard at home and abroad such as: China Standard(JGJ107), America Standard(UBC1997), British Standard(BSB110), French Standard(NF25-20-1), German Standard(DIN1045), ISO/WD15835(draft);
(2)Handy operation, no need skilled operator;
(3)Small need of impetus, no affected by the electric power supply in the site;
(4)Environmental protection, no need operation with open flames, no affected by the weather;
Parameter of rebar couplers
Steel bar
diameter(MM) | Outer diameter
of coupler (MM) | Length of
coupler (MM) |
| 16 | 30 | 130 |
| 18 | 34 | 130 |
| 20 | 36 | 120 |
| 22 | 40 | 132 |
| 25 | 45 | 150 |
| 28 | 50 | 168 |
| 32 | 56 | 192 |
| 36 | 63 | 216 |
| 40 | 70 | 240 |
TEST: 100% BAR BREAK

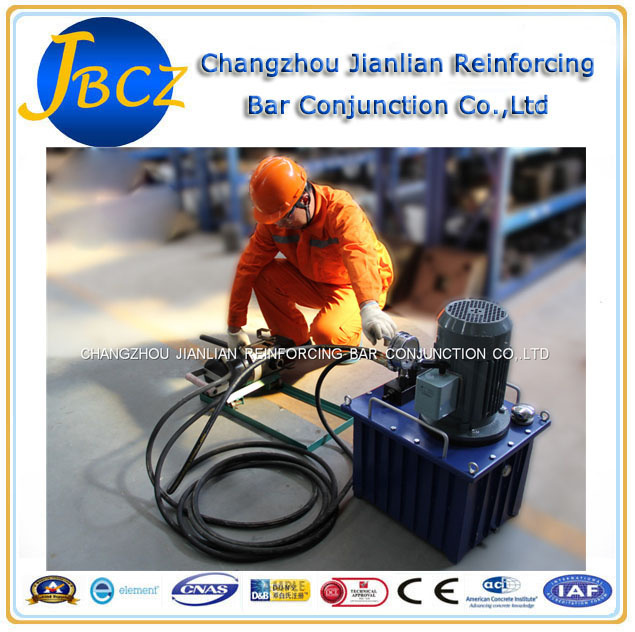

The Parameter For Cold Extrusion Press Machine:
| Name | Net weight | Wooden case inner net size | Wooden case outside size | Remark |
| YJ650 | 139kg | 650*520*760(packing one oil pump)30kg | 730*570*950(0.4) | Motor power:3.0KW |
| JY800 | 145kg | 900*650*760(packing two oil pumps)40kg | | Motor power:3.0KW |
Applications:
Bridge Project
|
Hangzhou Bay Crossing Sea Bridge,
Jiangyin Yangzi River Bridge, Jiangsu Runyang Bridge
|
Commercial Building Project
|
Burj Khalifa Tower, Oriental Pearl tower,
Saraya Tower, Jinmao Tower
|
Public Project
|
Beijing Capital Airport, Qinshan Nuclear Power Plant,
GaziBarotha Hydropower Station In Pakistan,
North Jeddah Water Pump Station, Dubai Metro,
Suzhou Gymnasium
|
Located in Heng Shan Qiao crossing of Shanghai-Nanjing Highway, Changzhou City, Jiangsu Province, China. JBCZ company was established in 1987, is a professional developer and manufacturer of rebar mechanical splice products, contains rebar processing machines and rebar couplers. We have four systems of machine:
1. Upset forging parallel thread machine and coupler
2. Rib peeling roll stamping machine and coupler
3. Cold extrusion press machine and coupler
4. Taper thread machine and coupler
The company has coupler streamline production workshop, mechanical precision production workshop, and equipped with engineering department in home and technical department which are responsible for the corresponding service for overseas. Company has an annual production capacity of 6 million 12-40mm reinforcing steel bar upset forging straight screw thread connection adapter sleeves, and more than 500 sets of machinery, which could well meet the requirements of major and key construction projects of home and overseas. The company has a perfect quantity, management and control system. We are strict to buy the raw materials, produce products and test the products. Our products and technology Have past GB/T19001-2000idt, ISO9001: 2000international quality management system and CE certification.
Our company supplies not only the products, but also good service. Our aim is to meet different clients' Requirments, and help clients to solve steel bar link problems in the project.
With more than 20 years development, we have ISO9001 certificate and CE certificate, Patent certificate for Upset forging parallel thread machine, the products were exported to five continents.
Our products have been used in following countries: United Arab Emirates, Ukraine, Poland, Sudan, Pakistan, Malaysia, Vietnam, Brazil, South Korea, Thailand, Iran, India, Mexico, New Zealand, Colombia, Ethiopia and Philippines etc.
We are looking forward to great cooperation with oversea customers based on mutual benefits. Please feel free to contact us for more details if you are interested in us.
