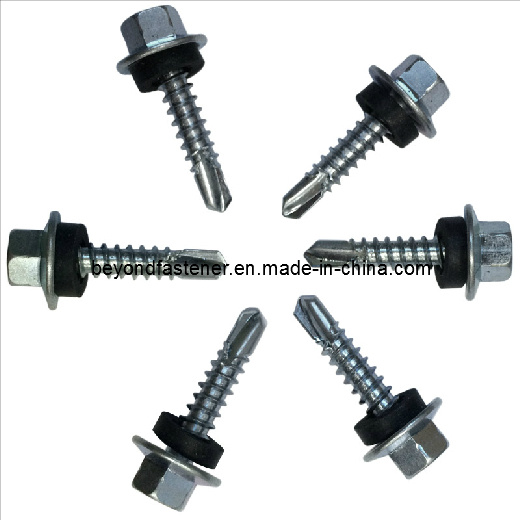

Building Screw Bolts Fastener Self Drilling Screw
Price: |
Negotiable/Piece |
Min Order: |
50000/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

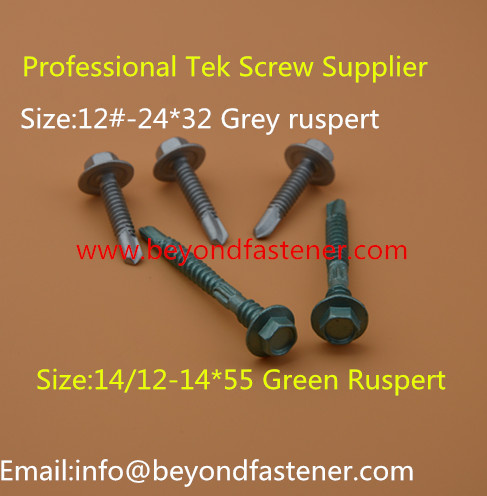

14/12#-14*55: |
14/12#-14*55 |
Type: |
Hexagon Head with Flange |
Head Style: |
Hexagonal |
Connection: |
Self Drilling |
Grade: |
A2-A4 |
Flange: |
12--14.5mm |
Finish: |
Green Ruspert |
Product Description
Beyond screw inception in 2004, has a complete range of processing equipment and production lines,
Beyond has 12 years of professional production experience and technology to provide the best service and quality
Quality products, the company has been the Beyond ideas and spirit.
Professional manufacturing: self drilling screw, self tapping screw, special screw, machine screw, all kinds of hardware manufacturing, Whether you are an industrial manufacturer, OEM or wholesale distributor, professional contractor supplier, or retail operation, we understand your needs and have the experience and capability of consistently meeting them.
Welcome to order or visit with samples or drawing.
Self drilling screws |
Standard: IFI,DIN,JIS,GB,Special Design |
Size Range: M1.4-M8(0#-14# &M8) |
Length Range: 6mm-300mm |
Material: Carbon steel and stainless steel A2 A4 and SS410 |
FLAT | PAN | HWH | HWF | BUGLE | WAFER | PAN WASHER | OVAL | TRUSS | ROUND |
DRIVE | | | | | | | | | |
PHILLIPS | SQUARE | POZI | SQUARE+PHIL | TORX | SLOTTED | PHIL+SLOTTED | OTHER | | |
POINT TYPE | | | | |
TEK#1 | TEK#2 | TEK#3 | TEK#4 | TEK#5 | TYPE 17 | | | | |
THREAD TYPE | | | |
TYPE-A | BSB TYPE | CSB TYPE | HI-LOW | MACHINE | DOUBLE | OTHER | | | |
10#-12 THD | 6#-20 THD | 8#-32 THD | | | | | | | |
12#-11 THD | 7#-19 THD | 10#-24 THD | | | |
14#-10 THD | 8#-18 THD | 12#-24 THD | | | |
| 10#-16 THD | 14#-20 THD | | | |
PLATING | | |
PLAIN | ZINC PLATED | COLOR ZINC PLATED | BLUE ZINC PLATED | BLACK PHOSPHATE | GRAY PHOSPHATE | BLACK ZINC PLATED | WHITE ZINC PLATED | | |
BLACK OXIDE | DECROTIZEO | RUSPERT | XYLAN | NICKEL | BRONZE | SPRAY PAINT | OTHER | | |
| |
SERRATION UNDER HEAD | W / O WASHER | W / BONDED WASHER | W / PVC WASHER | W / STEEL EPDM | W/RUBBER WASHER | W / HEAD MARK | W / WING | OTHER | |
BEYOND INDUSTRY GROUPS Ltd Specializing in manufacture and export high quality fasteners in carbon steel, stainless steel, mainly for oversea market. Products: SS 304 316 410 BI-METAL Screw, Self drilling screw, self tapping screw, drywall screw, chipboard screw, terminal screw, machine screw, rivets, high tensile bolts, special screw, DIY hardware and also can help for hardware tools. Our products widely adopted in Construction, Communication Engineering, Mechanical, Furniture, Home Appliances, Medical Appliances etc.
Standard: JIS, ANSI, DIN, BSW, GB, ISO
Material: Mild carbon steel, medium carbon steel, alloy steel, stainless steel SUS201 202 302 304 305 316 410 430 brass, aluminum etc.
Grade: 4.8 5.8 6.8 8.8 10.9 12.9 A2-70 A2-80 A4-70 A4-80
Slat spray test: 24hours-2000hours, depend on material and finish
DIA: M0.8-M42 Length: 2mm--- 3000mm
Our products are well sold in the Americas, Europe, Asia, Africa and Australia.

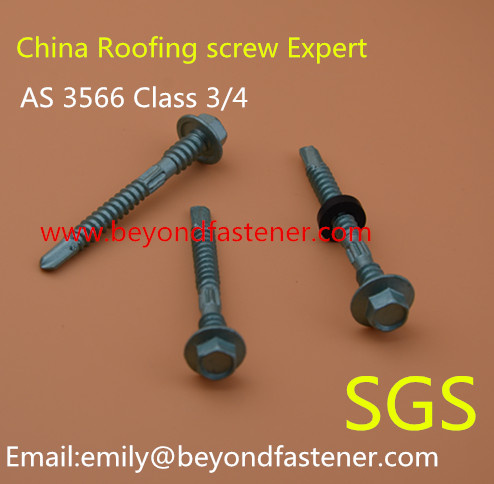

Beyond Industry Groups Ltd professional at self drilling screw which designed and manufacturered to be compliance with AS356 standard for plating. Also can provide from Class 2 to Class 4 by different level to meet with your any request here. And can be spiral point, it can save almost half of the drilling time when compare with the traditional self drilling screw.
And our EPDM washer is non-confuction, which can prevents electro-galranic corrosion compare to confuctive EDM in market, also can last the lifetime of the roof.
Welcome to call us for price or samples.
