Buried HDPE Pipe Water-Supply PE80 Polyethylene PE Pipe

Name: Buried HDPE Pipe Water-Supply PE80 Polyethylene PE Pipe
Brand: tool-buy.com
SKU: 821103945
Availability: InStock
Rating: 4.4 (28 reviews)

Price:	US $ 1.5/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Maanshan Goody Plastic Co., Ltd.

Showroom Product Company Profile

Prod Model:	G-PEW01
HS Code:	3917210000
Name:	PE Pipe
Use:	Water Supply Pipe
Standard:	GB/T13663-2000
Certificate:	SGS,Ce,ISO,TUV,BV,FDA
Service Time:	50 Years
Grade:	PE80 PE100
Connection:	Hot Melting
Material:	PE
Hardness:	Hard Tube
Type:	Thermoplastic Pipe
Hollow:	Hollow
Shape:	Round
Usage:	Water Supply Pipe
Color:	Black and Blue Stripe

Product Description

High quanlity HDPE Pipe for Water Supply: PE80/PE100

Features:
1.Material: High quality, virgin PE100/PE80
2. Diameter: 20mm to 1200mm
3. pressure: PN4,PN6,PN8, PN10, PN12.5, PN16 PN20( SDR33, SDR26, SDR21, SDR17,SDR13.6, SDR11,SDR9)
4. Connection: Socket fusion, butt fusion joint, electro fusion joint, flanged joint
5. Standard: ISO4427, GB/T13663-2000

Specification:

HDPE Pipe For Water Supply
Nominal outside diameter Dn(mm)	PE80 Pipe					PE100 Pipe
	Nominal wall thickness en(mm)
	PN4	PN6	PN8	PN10	PN12.5	PN6	PN8	PN10	PN12.5	PN16
	SDR33	SDR21	SDR17	SDR13.6	SDR11	SDR26	SDR21	SDR17	SDR13.6	SDR11
20	-	-	-	-	2.3	-	-	-	-	2.3
25	-	-	-	2.3	2.3	-	-	-	2.3	2.3
32	-	-	2.3	2.4	3.0	-	-	2.3	2.4	3.0
40	-	2.3	2.4	3.0	3.7	-	2.3	2.4	3.0	3.7
50	2.3	2.4	3.0	3.7	4.6	2.3	2.4	3.0	3.7	4.6
63	2.4	3.0	3.8	4.7	5.8	2.4	3.0	3.8	4.7	5.8
75	2.6	3.6	4.5	5.6	6.8	2.9	3.6	4.5	5.6	6.8
90	2.8	4.3	5.4	6.7	8.2	3.5	4.3	5.4	6.7	8.2
110	3.4	5.3	6.6	8.1	10.0	4.2	5.3	6.6	8.1	10.0
125	3.8	6.0	7.4	9.2	11.4	4.8	6.0	7.4	9.2	11.4
140	4.3	6.7	8.3	10.3	12.7	5.4	6.7	8.3	10.3	12.7
160	4.9	7.7	9.5	11.8	14.6	6.2	7.7	9.5	11.8	14.6
180	5.5	8.6	10.7	13.3	16.4	6.9	8.6	10.7	13.3	16.4
200	6.2	9.6	11.9	14.7	18.2	7.7	9.6	11.9	14.7	18.2
225	6.9	10.8	13.4	16.6	20.5	8.6	10.8	13.4	16.6	20.5
250	7.7	11.9	14.8	18.4	22.7	9.6	11.9	14.8	18.4	22.7
280	8.6	13.4	16.6	20.6	25.4	10.7	13.4	16.6	20.6	25.4
315	9.7	15.0	18.7	23.2	28.6	12.1	15.0	18.7	23.2	28.6
355	10.9	16.9	21.1	26.1	32.2	13.6	16.9	21.1	26.1	32.2
400	12.3	19.1	23.7	29.4	36.3	15.3	19.1	23.7	29.4	36.3
450	13.8	21.5	26.7	33.1	40.9	17.2	21.5	26.7	33.1	40.9
500	15.3	23.9	29.7	36.8	45.4	19.1	23.9	29.7	36.8	45.4
560	17.2	26.7	33.2	41.2	50.8	21.4	26.7	33.2	41.2	50.8
630	19.3	30.0	37.4	46.3	57.2	24.1	30.0	37.4	46.3	57.2
710	21.8	33.9	42.1	52.2	64.5	27.2	33.9	42.1	52.2	63.6
800	24.5	38.1	47.4	58.8	72.7	30.6	38.1	47.4	58.8	72.7
900	27.6	42.9	53.3	66.2	81.8	34.4	42.9	53.3	66.2	81.8
1000	30.6	47.7	59.3	73.5	-	38.2	47.7	59.3	73.5	-
1200	36.4	57.1	70.6	-	-	46.2	57.1	70.6	-	-

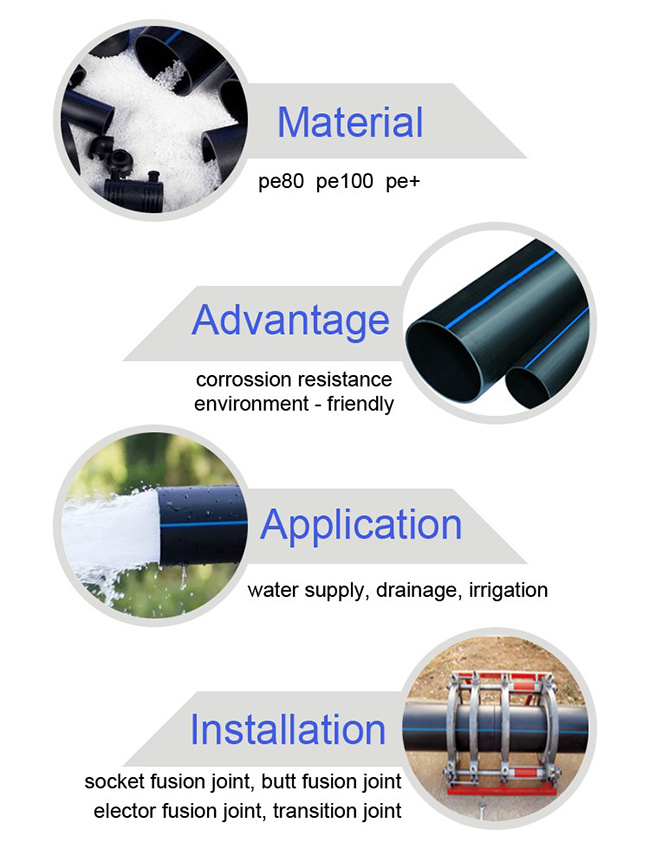

Application:
1.Urban tap water pipe network system
2.Replaceable cement tubes, iron pipe and steel tube
3.Industrial materials duct
4.Landscaping water supply network
5.Sewage discharge pipes
6.Ore, mud transfers
7. Agricultural irrigation pipe : ideal tool for agricultural irrigation.

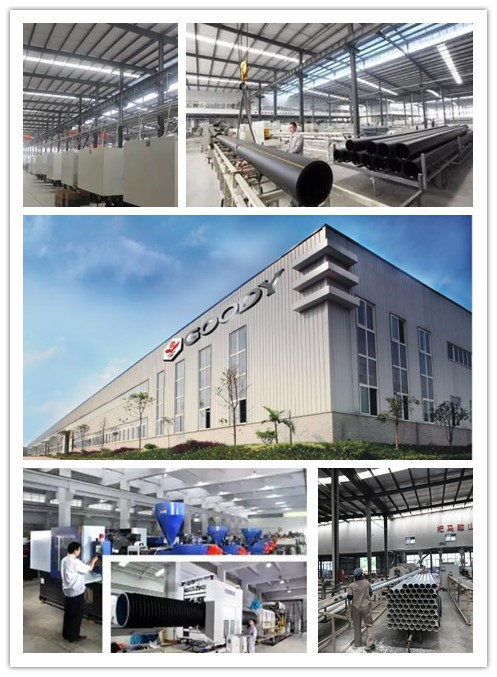

Goody Brand was founded in 1979, mainly produces PVC-U water supply and drainage pipe, PP-R hot and cold water pipe, PE-RT floor heating pipe, PE water supply and gas pipe, PVC-U, HDPE double wall corrugated pipe, G-MRP system, G-HWP system, PHSP system, PP-HM bellows, G-WRP pipe and other products, widely used in Building water supply and drainage, municipal water supply, gas, building heating, municipal sewage and other areas. He company has passed the ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety management system certification. OHSAS18001 occupational health and safety management system certification, pressure pipeline components manufacturing license certification, CCC mandatory product certification, Kangju product certification and national water-saving products Certification and other access system. Goody technology will accelerate the pace of innovation, and constantly strengthen the standardized management at the same time, actively explore the market, the development of environmentally friendly building materials in the field of development opportunities, the company building become China's largest, most powerful and most attractive modern enterprise.
