| Price: | US $ 0.5-1/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | Pipe fitting |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

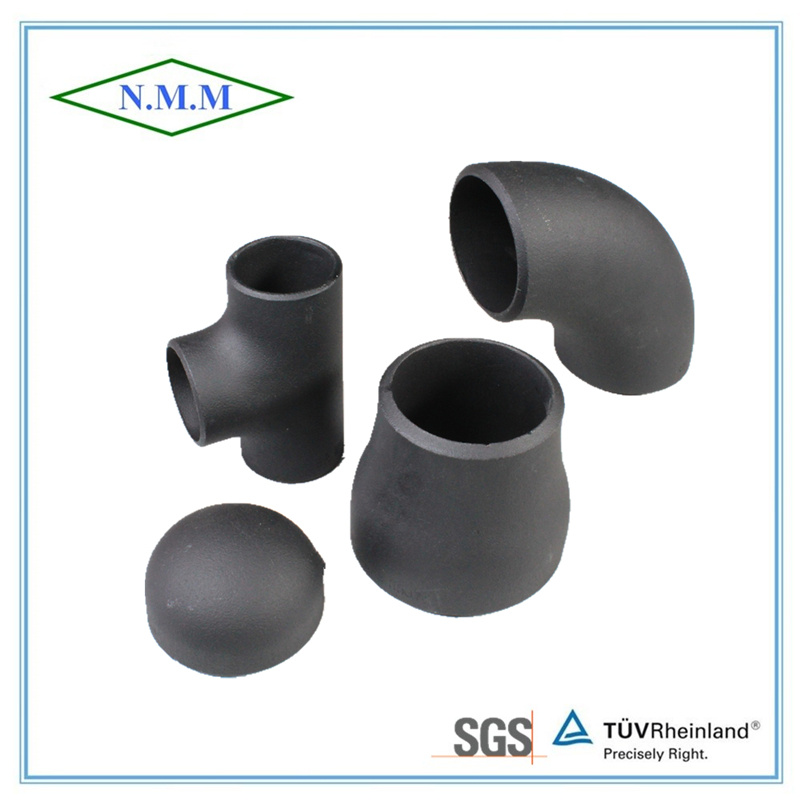

| Type: | Elbow, Tee, Cap, Reducer |
| Raw Material: | Stainless Steel, Carbon Steel |
| Produce Standard: | Asme Standard, ASTM Standard, DIN Standard, etc |
| Size: | 3/4"---24" |
| Thickness: | Sch5s, 10s, 20, 30, 80, 160, Std, Xs |
| Material: | Carbon Steel |
| Connection: | Welding |
All the cargoes under inspection before the shipment.
Conventional packing:
For the Valves, Expansion Joint, Water Meter, we can use veneer board case.
For the pipe, we use the Woven bag.
For the flange & Fittings, we use the veneer board case and veneer board pallet with plastic film.
In addition, we can change the shape of the packaging according to customer requirements.
mode of transportation:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
| Casting Iron Fittings Product detail | ||
| MATERIAL | Carbon Steel : | |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, | ||
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. | ||
| Stainless Steel: | ||
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | ||
| 00Cr17Ni14Mo2 304 304L 316 316L | ||
| Alloy Steel: | ||
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | ||
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | ||
| STANDARD | ASTM / JIS / DIN / BS / GB / GOST | |
| MODEL | 1.Tee(Straight and Reducing) 2.180 DEG Return | |
| 3.Elbow (45/90/180 Degree) 4.Cap | ||
| 5. Reducer(Concentric and Eccentric) | ||
| TYPE | Seam Or Seamless | |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize | |
| WALL THICKNESS | SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40, STD,XS,SCH60, | |
| SCH80, SCH100, SCH120, SCH140, SCH160, XXS, 2MM | ||
| SIZE | 1/2"-48"(Dn15-Dn1200) | |
| CONNECTION | Welding | |
| SHAPE | Equal, Reducing | |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc | |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Sanitary fittings, etc,. | 12. Grooved fittings | |
| Customers' drawings or designs are available. | ||
| PACKAGE | 1> 1/2" - 2" in cartons. | |
| 2>Above 2" in wooden cases. | ||
| Big size is workable by pallets. | ||
| DELIVERY DETAILS | According to the quantities and specifications of each order. | |
| Normal delivery time is from 30 to 45 days after receiving the deposit. | ||
| Material | Carbon steel ASTM A105, Stainless steel SS304/SS304L/SS316, Alloy |
| Standard | ASME, ANSI B16.11, MSS SP-79/83/95/97, JIS, B2316 |
| Pressure Rating | Threaded Fitting: 2000LB/3000LB/6000LB(Sch40, Sch80, Sch160) |
| Socket Welding: 3000LB/ 6000LB/9000LB(Sch80, Sch160, xxs ) | |
| Type | Forged Threaded Pipe Fittings(NPT/BSPT/BSPP), Socket Welded |
| Specification | Elbow, Cross, Street Elbow, Tee, Coupling, Half Coupling, Reducing Coupling |
| Outlet, Cap, Bushing, Union, Hex Nipple, Hex Plug, Square Plug, Round Plug | |
| Surface | Blasting oil, Black paint |
| Size | 1/8"---4" |
| Connection | Thread , Socket welded |
| Shape | Equal, Reducing |
| Applications | Petroleum,Electric Power, Chemical Industry, Light Industry, Metallurgy, |
| The shipping,Urban construction and Other Professions |
| Material | Black heart malleable iron | |
| British Standard | Threads :ISO 7/1 | |
| Dimension: BS EN 10242, BS 143&1256 | ||
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) | |
| Physical property | Tensile strength >=300MPa, Elongation >=6%, Hardness <=150HB | |
| Testing pressure | 2.5MPa, 100% test before shipment | |
| Working pressure | 1.6MPa | |
| Type | Banded without ribs, Beaded with ribs. | |
| Size | 1/8",3/8",1/2",3/4",1",11/4",11/2",2",21/2",3",4",5",6". | |
| Surface | Ø Galvanized | |
| Ø Normal black/Shining black | ||
| Series | Heavy, Standard, Medium, Light | |
| Model | Elbows, Tees, Crosses, Bends, Unions, Bushings, Lateral Y Branches, Sockets, Nipples, Hexagon/Round Caps, Plugs, Lock nuts, Flanges, Side Outlet Tees, Side Outlet Elbows, etc. | |
| Related products | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Carbon steel butt-welding fittings | 4. Pipes | |
| 5. High-pressure fittings | 6. Valves | |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings | |
| 9. Ductile iron pipe fittings | 10. Copper fittings | |
| 11. Grooved fittings | 12. Sanitary fittings, etc. | |
| Connection | Male, Female | |
| Shape | Equal, Reducing | |
| Applications | Suitable for Pipe lines connect of water, steam, air, gas, oil and so on. | |
| Buyer's drawings or designs are available. | ||
| Package | 1. Cartons without pallets. | |
| 2. Cartons with pallets. | ||
| 3. Double woven bags | ||
| Or as buyer's requirements. | ||
| Delivery detail | ||
| According to the quantities and specifications of each order. | ||
| Normal delivery time is from 30 to 45 days after receiving the deposit. | ||
| Material | iron GGG500-7, GGG450-10 or Ductile iron |
| Standard | ISO2531,EN545,BS4772 |
| Size | DN60mm-2000mm |
| Market | Europe, Middle east, Africa, America |
| Hardness | maximum≤250HB |
| Proof stress | minimum≥300MPA |
| Tensile Strength | minimum≥420MPA |
| Elongation | minimum≥5% |
| Packing | wooden cases with plastic layer , wooden pallets with plastic layer, steel crates . |
| Certificate | ISO 9001 2008 and BV Product Conformity |
| Thickness | Thickness of wall K9 for ductile iron pipes K12 without branch K14 with branch for ductile iron fittings |
| Flange drilled | PN10/ PN16/ PN25 according to BS4504 |
| Socket joint | T type ( push-on type) / K type ( MJ type) |
| Coating | Cement lining inside, zinc primer and bitumen painting outside; fusion bonded epoxy coating; bitumen painting inside and outside red anti-rust coating. |
1. Can I get free samples?
A: Yes, we can provide you the free sample, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, we can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
