Bytcnc Big Power Aluminum Bender Machine
| Price: |
US $ 8999-12999/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Working Principle: |
Auto Feeding, Slotting and Bending |
| Availabe Material: |
Aluminum, Stainless Steel, Galvanized Iron |
| Slot Angle: |
45°-135°(Just for Aluminum) |
| Bending Radius: |
≥10mm |
| Max Processed Width: |
≤128mm |
| Material Thickness: |
Aluminum 0.3-1.2mm, Stainless Steel≤1mm |
| Machine Power: |
≤1800W |
| Machine Size: |
≤1800W |
| Machine Weight: |
400kg |
| After-Sale Service: |
Engineer Speaking English Available |
Product Description

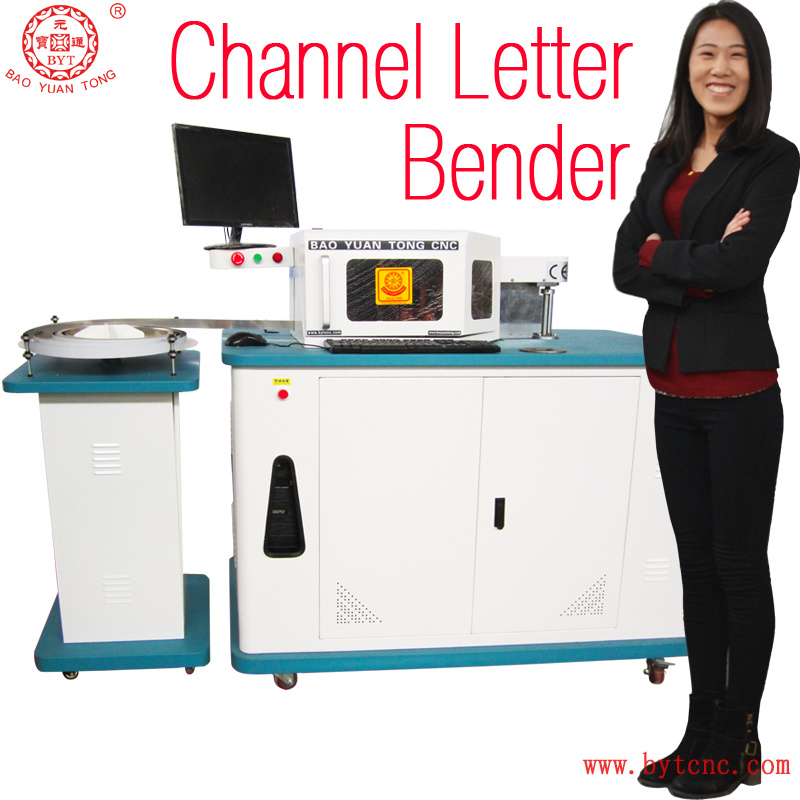

BYTCNC- Multifunction Aluminum Stainless Steel Channel Letter Bending Machine
Why the best choice?

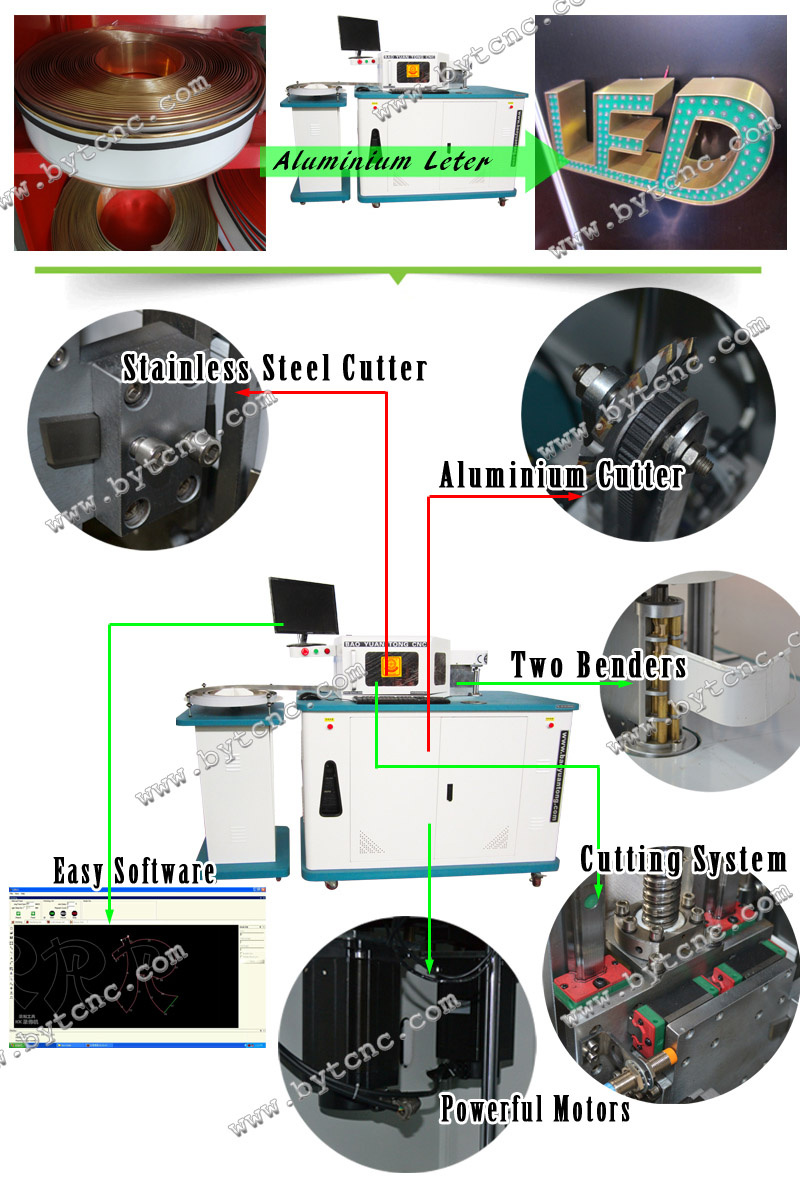

√ Stainless steel cutter√ Aluminum cutter√ with 2 benders√ Powerful Cutting system√ Easy software√ Stepper motor and servo motor optional√ Heavy structure, Working stable, Precisely Features1.Cut angle from 45 to 135 and it can control depth precision,by using the CNC axis. the processing of various types of
profile bending angle precision.2.Intelligent control of the software,intelligent inspection to avoid collision in character bending process.3.Telescopic bilaterally symmetrical bending mode of the unique, the greatest degree of bending process to avoid
interference,and greatly improve the bending strength4.Stainless steel gouging unique,single slotted mode profile milling groove,according to different characteristics of
arbitrary switching material, the operation is simple and convenient .5.Can read muti-vector file like the format such as AI,DXF matching with the engraving file perfectly.6.Use rotary type handwheel to adjust the feed depth,the operation is simple and convenient.7.Intelligent imported square guide rail and a high precision ball screw can adjust the depth of grooves.8.Special specification and equipment is availableAdvantage New type of three-in-one CNC Channel letter bending machine, there are two working systems and different bending axis,
one for stainless steel and iron, another for aluminum. When we need to slot and bend different materials, Dot need to
change the cutter. We just need to convert into another system. and it is convenient for us to change the bending axis,
just three to five minutes. Therefore, this new machine can save time , works with more efficiency . Technical parameter | Model | BWZ-A | BWZ-B | BWZ-C | BWZ-D | BWZ-E | BWZ-S |
| Operation principle | Automatic feeding,slotting and bending |
| Available material | Aluminum,stainless steel,galvanized iron | Aluminum | Aluminum | Stainless steel |
| Slot angle | 45°-110°(flat profile unlimited) | 45°-135°(just for aluminum) | 45°-110°(flat profile unlimited) | 45°-110°(flat profile unlimited) | - |
| Bending radius | ≥15mm | ≥15mm | ≥10mm | ≥12mm | ≥12mm | ≥15mm |
| Material width | ≤128mm | ≤128mm | ≤128mm | ≤135mm | ≤90mm or customized | ≤128mm |
| Material thickness | Aluminum:0.3-1.2mm, stainless steel and iron: 0.3-0.8mm | Aluminum 0.3-1.2mm, stainless steel≤1mm | 0.2-1.2mm | 0.2-1.2mm | ≤1mm |
| Power | ≤1800W | ≤1000W |
≤1800W | ≤500W | ≤500W | ≤1000W |
| Machine size | 1850mm*880mm*1300mm | 2350*950*1750mm | 1850mm*880mm*1300mm | 1500*800*1400mm | 1050*850*850mm | 1500*880*1300mm |
| Machine weight | 270kg | 300kg | 400kg | 280kg | 65kg | 300kg |
| Voltage | 220V | 220V | 220V | 220V | 220V | 220V |
| Working Air pressure | 0.6Mpa | 0.4-0.6Mpa | 0.6Mpa | - | - | 0.6Mpa |
Main Parts :

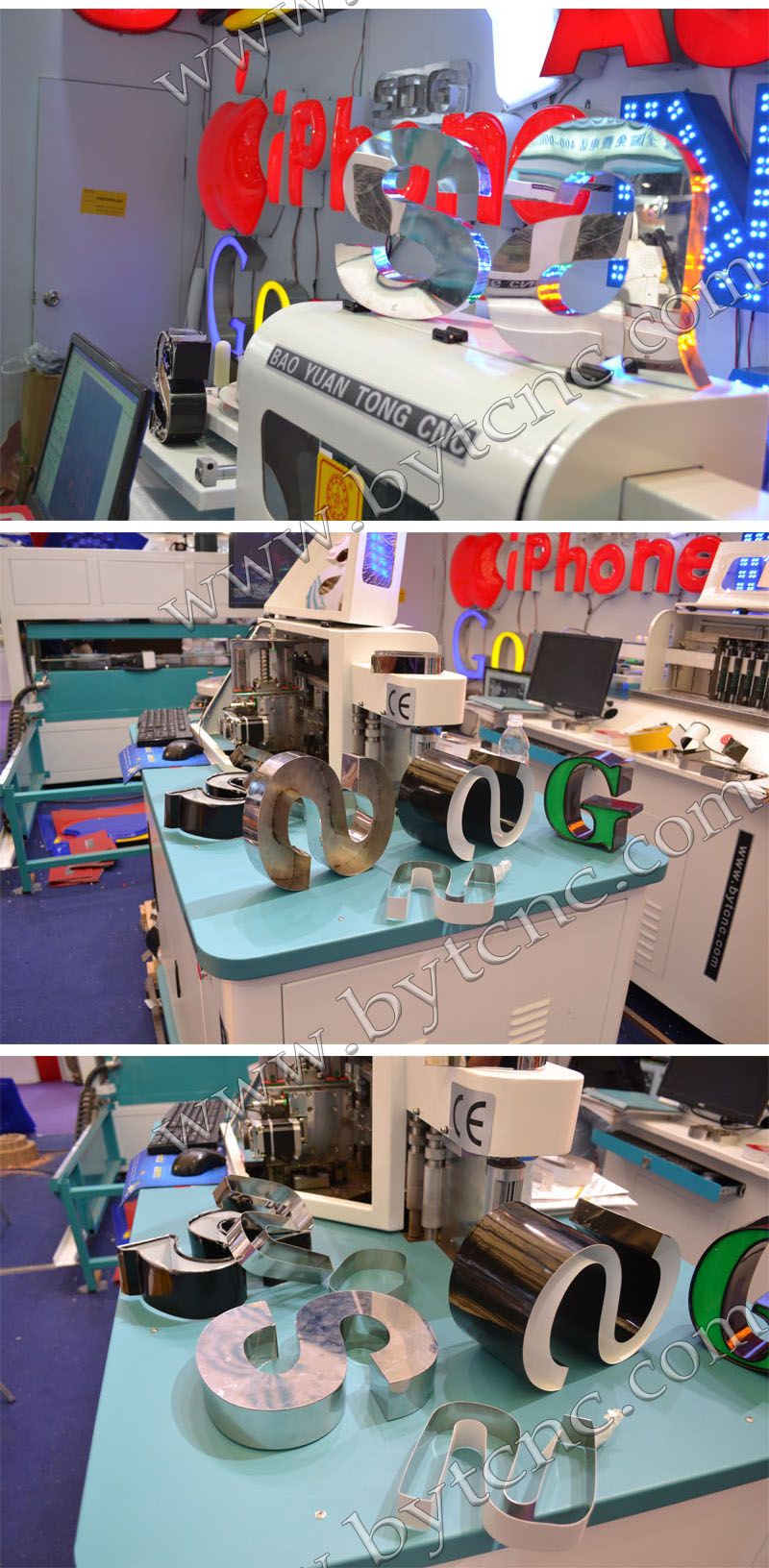

Application Industry Advertising industry,such as logos,signs,neon signs,billboards,light boxes production,outdoor advertising and other advertising productionSamples

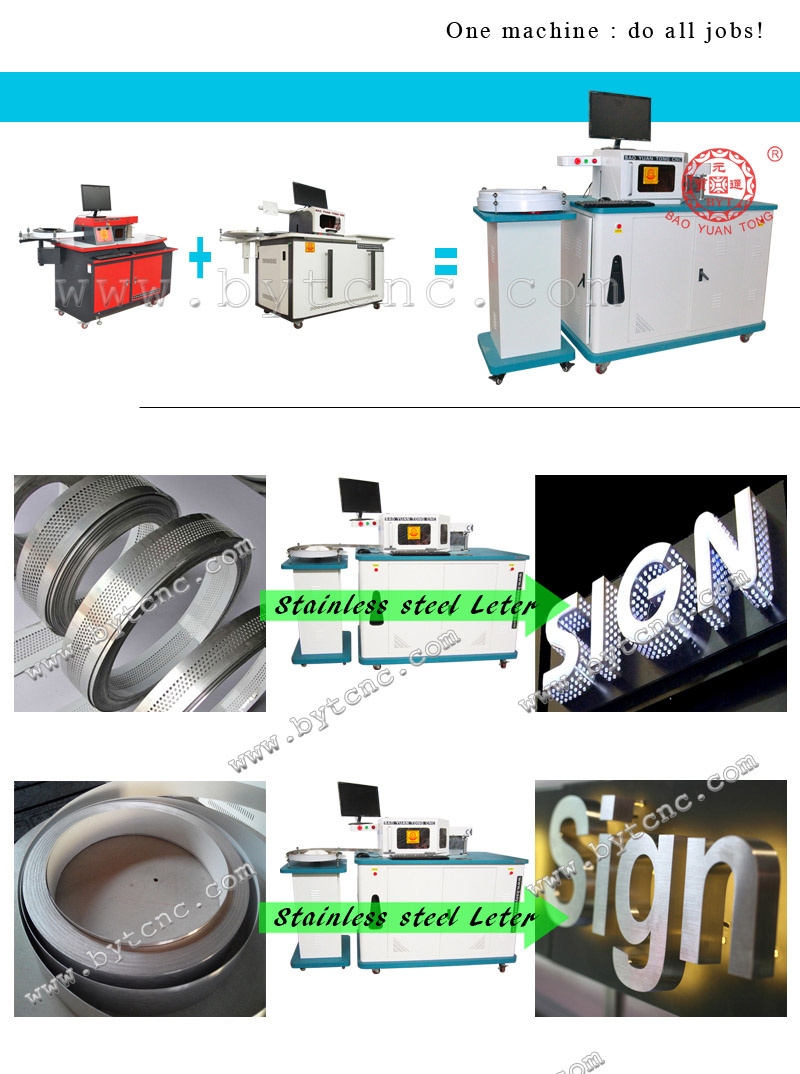

Our machines can do all jobs, stainless steel letters, aluminum letters.
After-Sales Service1.One year quality guaranty. The machine with main parts(excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.Engineers speaking English12 hours on line serviceeach day, free technical support. We
will solve your problemsimmediately by E-mail, fax, MSN, Skype, or telephone.
6. The English operation manual in electronic edition is included.
7. Machine has been adjusted before delivery.
8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center. FAQ: 1) This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours
service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name
or your detailed address. There will be best shipping freight and machine price send to you. Related Products:
