Charcteristics of the machine: The body of J23 series press is made of high-strength cast iron.the slipper uses V-type guide rail and turnkey rigid clutch.There is a crushing-type protector mounted on the slipper,which may protect the whole machine as it overloads.Operation of electrical equipment is controlled by button or footswitch.The electrical equipment may carry out single and continuous operation. The machine may be altered to pneumatic operation according to needs of clients.Body of the machine may be inclined to a certain angle to let the workpiece slide down by its deadweight at the back of the machine.the machine has the advantages of high versatility,reliable performance and easy operation. |
TECHNICAL PARAMETERType | 6.3 | 10 | 16 | 20 | 25 | 35 | 40 | 63 | 80 | 100 | Unit |
Slipper nominal Pressure | 63 | 100 | 160 | 200 | 250 | 350 | 400 | 630 | 800 | 1000 | KN |
Slipper stroke | 35 | 60 | 70 | 90 | 90 | 100 | 100 | 120 | 120 | 130 | mm |
Stroke times | 170 | 145 | 120 | 90 | 100 | 53 | 55 | 50 | 50 | 45 | s.m.p |
Max.closing height | 150 | 180 | 220 | 250 | 250 | 205 | 300 | 360 | 360 | 400 | mm |
Adjusting amount of closing height | 30 | 50 | 60 | 70 | 70 | 100 | 80 | 90 | 90 | 100 | mm |
Throat depth | 110 | 130 | 160 | 175 | 190 | 205 | 240 | 260 | 260 | 320 | mm |
Pole distance | 145 | 185 | 220 | 240 | 260 | 295 | 300 | 350 | 350 | 450 | mm |
Bench size | Left and right | 310 | 360 | 450 | 500 | 560 | 610 | 700 | 710 | 720 | 900 | mm |
Front and back | 200 | 240 | 300 | 330 | 360 | 380 | 460 | 480 | 500 | 600 | mm |
The work pedestal thickness | 35 | 50 | 60 | 70 | 70 | 70 | 80 | 90 | 90 | 110 | mm |
Slipper underside size | Left and right | 140 | 170 | 200 | 220 | 250 | 255 | 320 | 320 | 320 | 390 | mm |
Front and back | 120 | 150 | 180 | 200 | 210 | 210 | 270 | 280 | 280 | 340 | mm |
Size of die handle bore | Diameter | Φ30 | Φ30 | Φ40 | Φ40 | Φ40 | Φ40 | Φ50 | Φ50 | Φ50 | Φ50 | mm |
Depth | 55 | 55 | 60 | 60 | 60 | 60 | 70 | 80 | 80 | 80 | mm |
Motor power | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | KW |
Dimension | Front and back | 78 | 87 | 114 | 120 | 135 | 148 | 150 | 181 | 188 | 220 | cm |
Left and right | 55 | 64 | 90.5 | 88 | 95 | 105.2 | 118 | 140 | 148 | 150 | cm |
Height | 150 | 166 | 189 | 200 | 213 | 214.5 | 230 | 275 | 282 | 318 | cm |
Machine weight | 400 | 770 | 1070 | 1400 | 1600 | 2500 | 3500 | 5000 | 6000 | 9000 | kg |

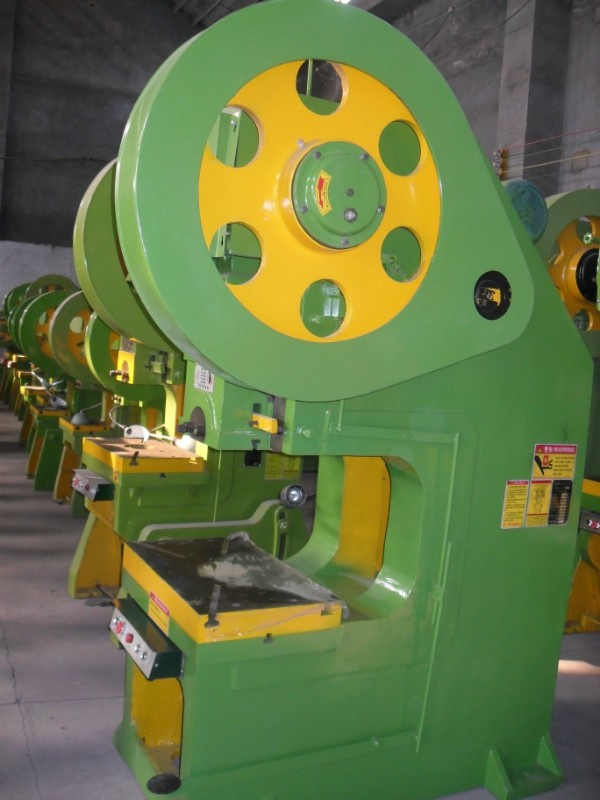

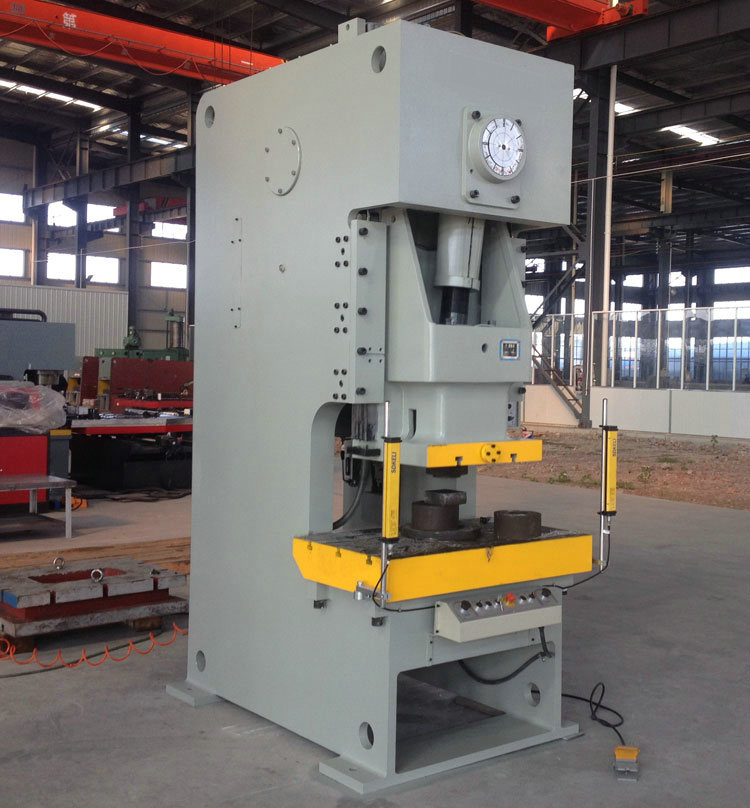

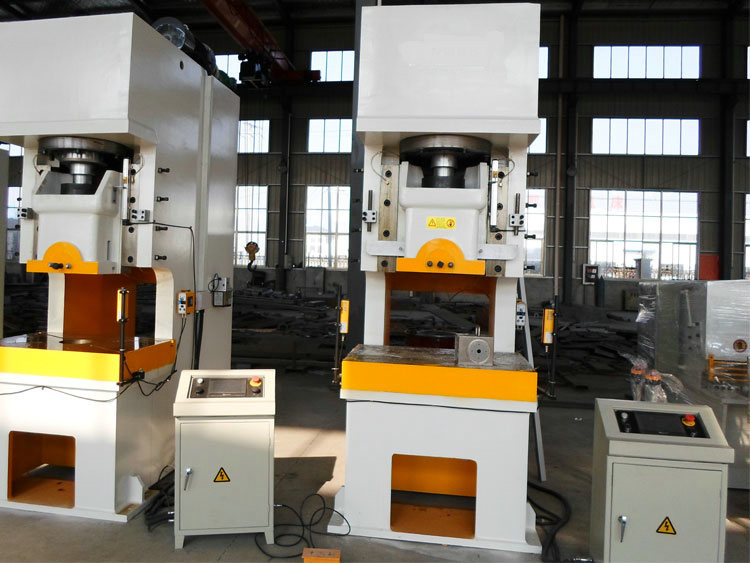

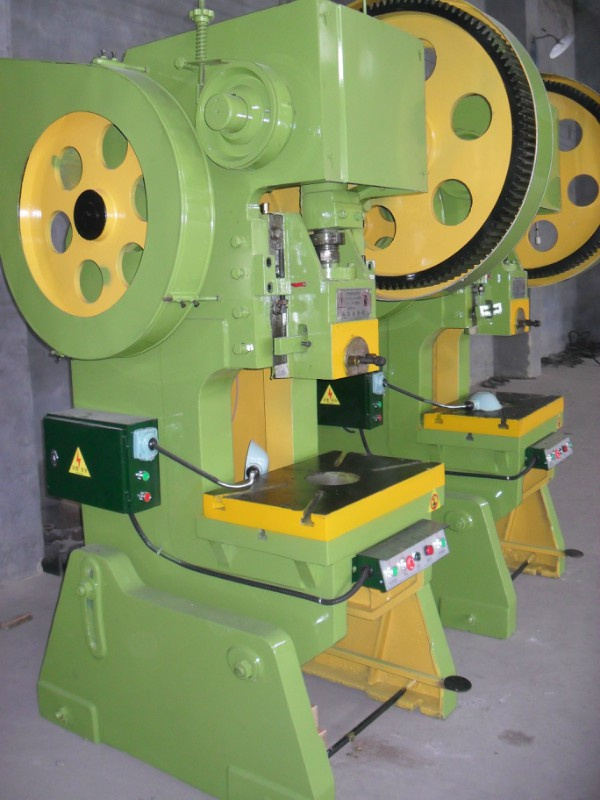

J23 Power Press, Mechanical Stamping Press, Mechanical Press
J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
