C-Frame Single Crank Power Press Machine/Power Press

Name: C-Frame Single Crank Power Press Machine/Power Press
Brand: tool-buy.com
SKU: 751301915
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	US $ 10000-20000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	JH21-160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	C Frame Fixed Table Power Press Machine
Power:	380V/50Hz/3phase
Delivery Time:	30 Days
Clutch:	Wet
CNC Or Not:	Normal
Warranty:	One Year
Power Soures:	Mechanical
Brand Name:	World
Nominal Capacity:	25ton to 400ton
Key Words:	C Frame Fixed Table Power Press Machine
Type:	Deep Throat Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

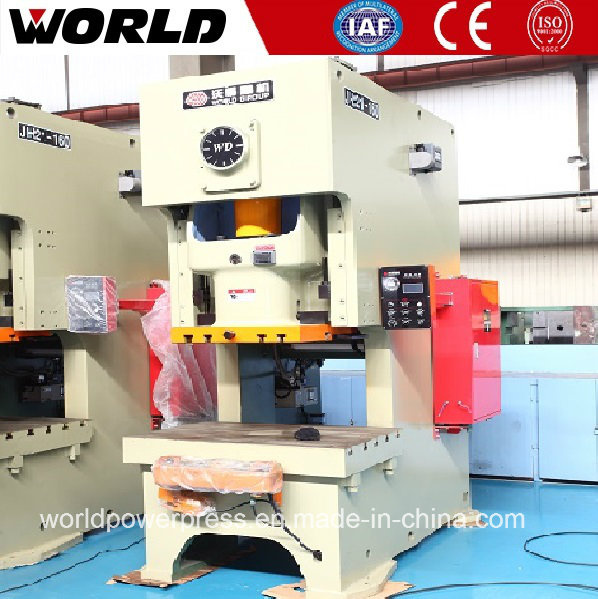

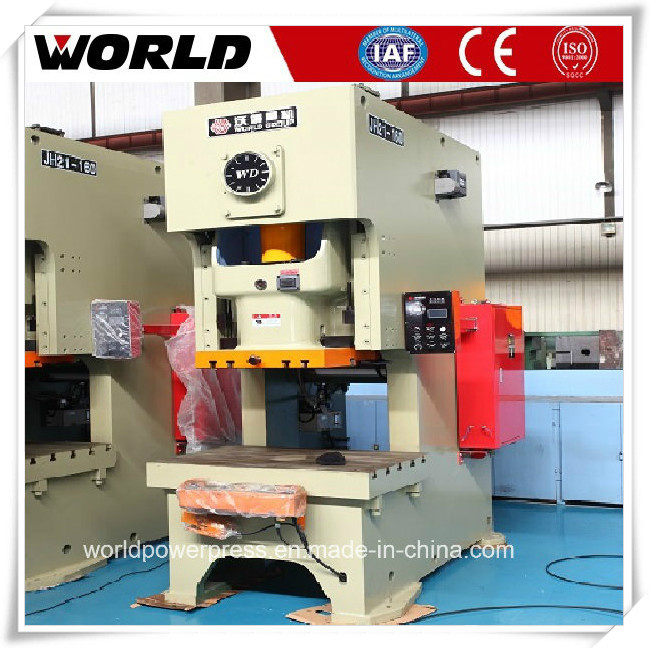

C Frame Fixed Table Power Press Machine

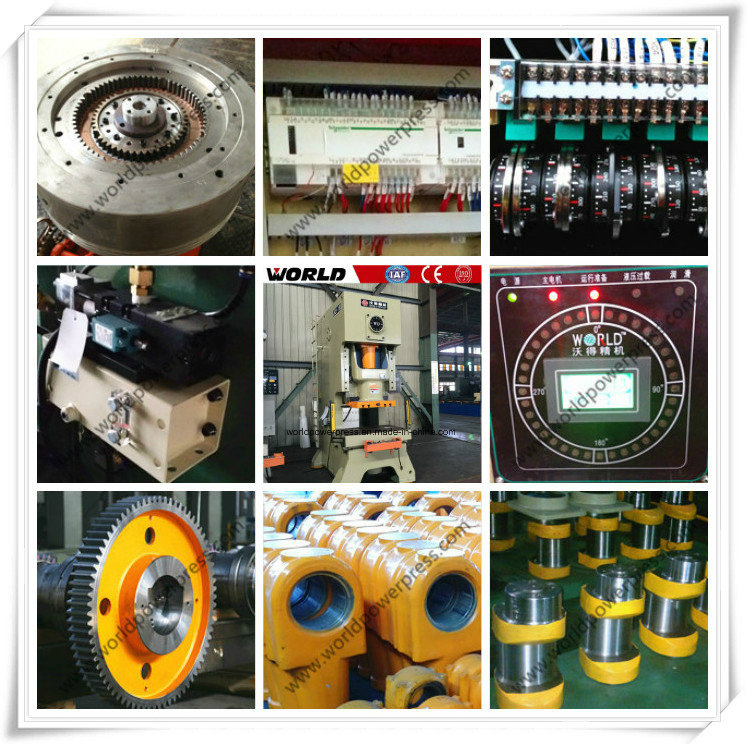

Spare Parts of Power Press

Specifications of JH21 Power Press:

ITEM		UNIT	JH21-25	JH21-45	JH21-60	JH21-80	JH21-125	JH21-160	JH21-200	JH21-250	JH21-315	JH21-400
Nominal Capacity		KN	250	450	600	800	1250	1600	2000	2500	3150	4000
Slide Stroke		mm	80	120	140	160	180	200	220	250	250	270
Slide Strokes	Fixed	Times/min	100	80	70	60	50	45	45	30	30	30
Slide Strokes	Variable(optional)	Times/min	60-100	50-80	45-70	40-60	35-50	30-45	25-45	20-30	20-30	20-30
Max. Die Height		mm	250	270	300	320	350	400	450	500	500	550
Die Height Adjustment		mm	50	60	70	80	90	100	110	120	120	120
Throat Depth		mm	210	225	270	310	350	400	430	450	450	490
Distance Between Uprights		mm	450	515	560	610	670	736	910	980	980	1050
Slide Bottom Size	Forward - Rear	mm	250	340	400	460	520	580	650	700	700	750
Slide Bottom Size	Left - Right	mm	360	410	480	540	620	700	880	950	950	1020
Shank Hole Size	Diameter	mm	40	50	50	50	70	70	70	70	70	70
Shank Hole Size	Depth	mm	65	60	70	65	90	100	100	130	130	130
Bolster Size	Forward - Rear	mm	400	440	520	600	680	760	840	880	880	950
	Left - Right	mm	720	825	930	950	1100	1170	1390	1500	1540	1700
	Thickness	mm	80	110	130	140	155	165	180	190	190	210
Bed Opening Hole Diameter		mm	150	150	150	180	200	220	250	270	270	290
Overall Dimensions	Forward -Rear	mm	1496	1585	1540	1765	2040	2305	2600	2660	2720	2850
	Left - Right	mm	945	1075	1200	1200	1320	1420	1540	1640	1680	1750
	Height	mm	2120	2391	2570	2725	3035	3215	3800	3865	3865	4150
Motor Power		KW	3	5.5	5.5	7.5	11	15	18.5	22	30	37
Weight(approximate)		kg	2450	3550	5150	6450	9550	13600	19200	23200	26600	31600

Certification and Quality Assurance

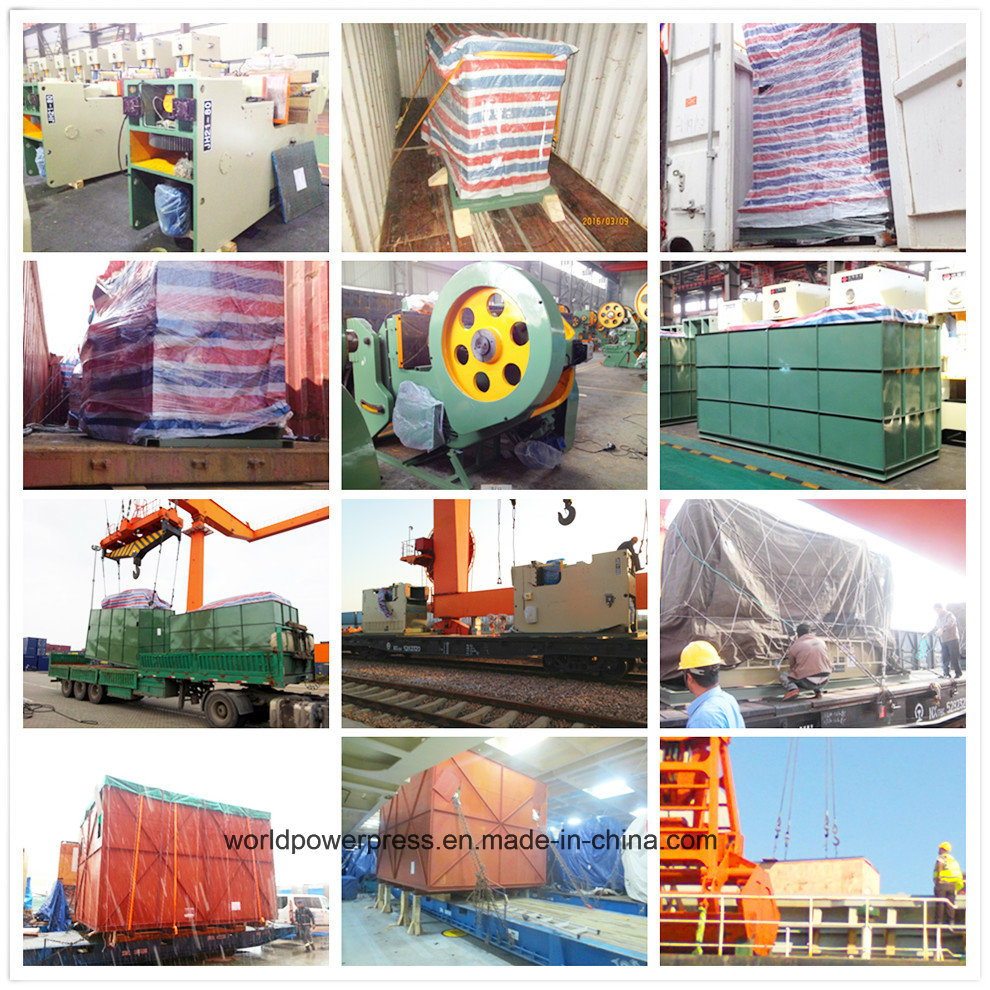

Packing and Shipment

Clients Visit

Details:

1. Steel plate welded c frame body, heat treatment, produced by cnc boring and milling center, high rigidity and precission
2. Wet type pneumatic clutch with safety solenoid valve, lower noise and longer service life.
3. Best quality gears, bushes, cylinders, link rods and ball screw ensure the high performance, high reliability and longer service life.
4. Hydraulic overload protected system is standard equipped. The press will stop with oil pressure release if overload to protect the press and the die. It is easy to reset to normal status.
5. PLC control, Omron or Panasonic brand, high quality with global warranty.
6. Double hands control buttons, touch screen control panel, cam controller with encoder.
7. Slide adjust motor is equipped on the back of the slide. This position is better to protect the motor and the press is more compact in this way. The slide is motorized adjusted with digital displayer.
8. Center auto grease lubrication system is standard equipped and the lubrication frequency can be setted with the touchscreen. In the meanwhile, manual thin oil lubrication system is equipped too.

Warranty and Service:

- one year warranty for whole press.
- all spare parts are available as we produce most of the parts in our factory.
- it is easy to get the electric parts as all are international famous brands.
- we can provide technical support via email, phone or video.
- we can send out engineers for service, installation or training with reasonable additional cost.
- English operation and maintenance manual is provided with the press.
- All safety warning tags and control panels are in English.

Contact Information
Ms Lily Wang

Mob:0086-151556039907

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
