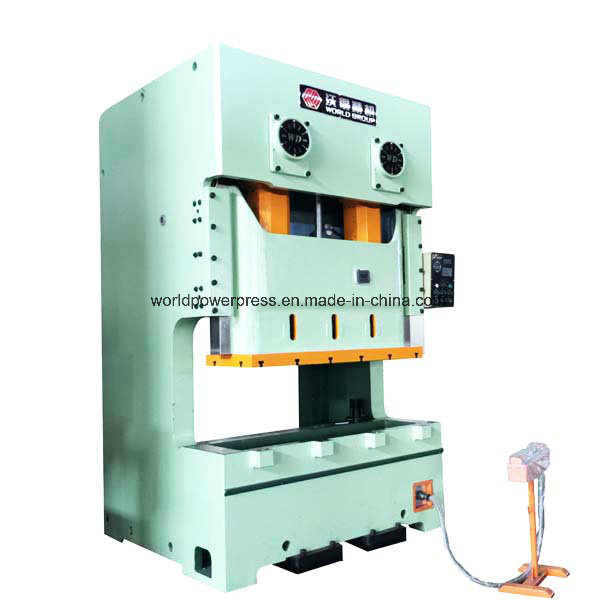

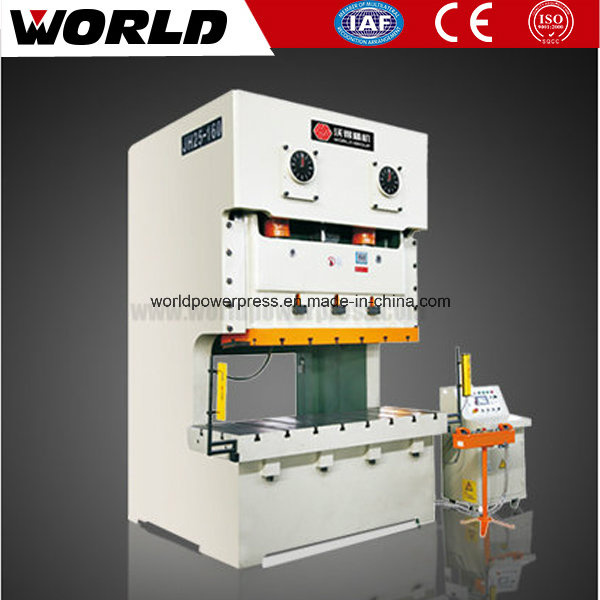

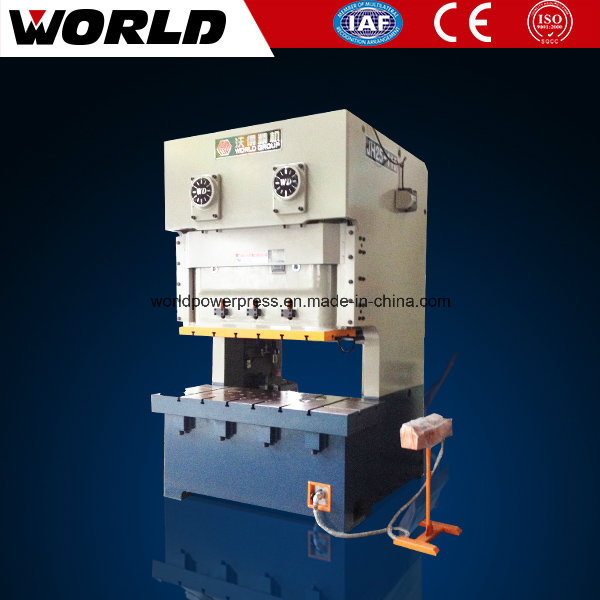

C Type Two Points Power Press for Auto Parts Punching

C Type Two Points Power Press for Auto Parts Punching
Price: US $ 20000-30000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: jh25
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity Range: 110ton to 315ton
Power: 380V/50Hz/3phase
Delivery Time: 30 Days
Stroke Speed: 30-50spm
Quality Certificate: CE
Options: Inverter for Adjustable Stroke Speed
Warranty: One Year
Slide Stroke: 180-300mm
Throat Depth: 350-490mm
Distance Between Uprights: 1470-2170mm
Type: General Punching Machine
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Power Source: Mechanical Drive
Precision: High Precision

Product Description

Two point power press

Features:

1. Steel welded body, heat treatment, high rigidity, accuracy and stability;
2. Double crank, high frequency quenching, grinding treatment;
3. Hex retangular guideway;
4. Wet clutch, hydraulic overload protector;
5. Auto lubrication, electric die adjustment.

Details:

1. C frame steel welded body, heat treatment to release stress, rigid and strong.
2. Big table size with two power points, better for progressive die or big sheet blanking process.
3. Wet type oil bath combined clutch and brake, more compact, lower noise with longer service life.
4. Total 6 surfaces guide ways of slide, with bronze plate, higher precision. Slide is equipped with a motor to adjust the slide with digital displayer.



5. Famous brand PLC control, both electric and mechanical cam controller with encoder, simenz or schneider electric parts, all are good quality and easy to get the parts all the world.
6. The press is equipped with a touch screen. The crankshaft angle is showed on the panel and you can set the lubrication frequency by the touch screen. And you can check the press working and maintenance status with the screen.
7. Hydraulic overload protected system to protect the die and the press. It is east to reset to normal status with the touch screen.
8. Auto grease lubrication system and manual thin oil lubrication system are both equipped.



Options:                                                                                                Quality certificate:

- light curtain for safety                                                                       - ISO 9001
- inverter for adjustable stroke speed                                             - CE
- variable speed motor for adjustable stroke speed                    - SGS inspection if needed
- cushion
- hydraulic die quick change device

Warranty and service:

- one year warranty for whole press.
- all spare parts are available as we produce most of the parts in our factory.
- it is easy to get the electric parts as all are international famous brands.
- we can provide technical support via email, phone or video.
- we can send out engineers for service, installation or training with reasonable additional cost.
- English operation and maintenance manual is provided with the press.
- All safety warning tags and control panels are in English.

Our products range:

- J23 and JH23 inclinable eccentric press, capacity from 6.3ton to 125ton.
- JH21 c frame single crank press, capacity from 25ton to 400ton.
- JH31 semi-straight side single crank press, capacity from 110ton to 400ton.
- JW31 H frame single crank press, capacity from 110ton to 400ton.
- JH25 c frame double crank press, capacity from 110ton to 315ton.
- JW36 H frame double crank press, capacity from 110ton to 500ton.
- JX36 close type big table press with double crank, capacity from 400ton to 1000ton.
- JS36 close type gear press, capacity from 300ton to 1250ton.
- JS31 close type gear press, capacity from 160ton to 1000ton.
-  hydraulic shearing machine
-  hydraulic press brake and cnc press brake


Specifications of JH25 double crank press:
ITEMUNITJH25-110JH25-160JH25-200JH25-250JH25-315
Nominal CapacityKN11001600200025003150
Slide Strokemm180200250280300
Slide StrokesFixedTimes/min6555453535
Variable(optional)Times/min35-6530-5525-4525-3525-35
Max. Die Heightmm400450500550550
Die Height Adjustmentmm90100110120120
Throat Depthmm350390430470490
Distance Between Uprightsmm14701600192021902170
Bolster SizeForward-Rearmm680760840920940
Left-Rightmm18802040242027002800
Thicknessmm155165170180190
Slide Bottom SizeForward-Rearmm520580650700700
Left-Rightmm14001500185021002100
Bolster Surface Heightmm900900100011001100
Overall DimensionsForward-Rearmm18202080237026902730
Left-Rightmm19202100245027302800
Heightmm31003280373041104110
Motor PowerKW1118.5223037
Weight(approximate)kg1400020000280003600039000
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
