Home Toolbuy Products C2040f1, 208af2, C2060h-C2e, C210af1 Agricultural Drive Chain and Combine Chain for Farm Harvesting Machinery
C2040f1, 208af2, C2060h-C2e, C210af1 Agricultural Drive Chain and Combine Chain for Farm Harvesting Machinery
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Meter |
| Pay Type: |
T/T |
| Prod Model: |
C2040F1 |
| Model: |
2040f1 |
| Pitch: |
12.70mm |
| Pin Diameter: |
3.96mm |
| Width Between Inner Plates: |
4.88mm |
| Inner Plate Depth: |
12.00mm |
| Plate Thickness: |
1.50mm |
| Roller Diameter: |
7.95mm |
| Pin Length: |
16.30mm |
| Tensile Strength: |
13.80kn |
| Surface Treatment: |
Carburizing and Quenching |
| Chain Size: |
12.70mm |
Product Description

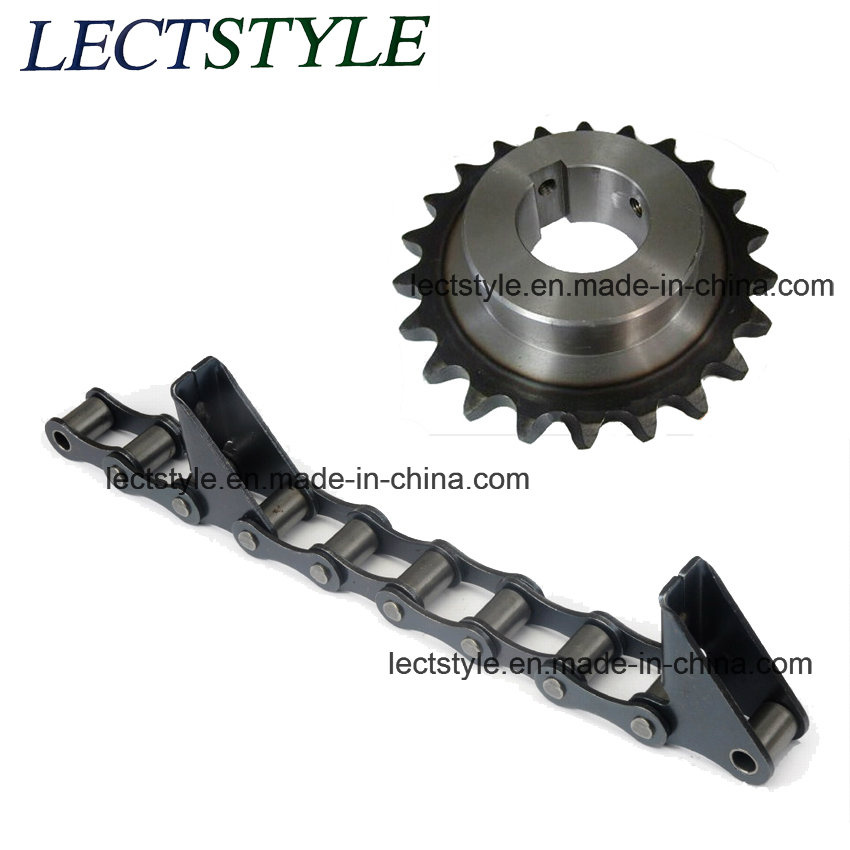

Agricultural Roller Chain and Conveyor Chain, with alloy steel according to your requirement
1, Chain types: Roller Chain, conveyor chain, transmission chain, motorcycle roller chain, silent chains, oil pump chains, weld steel drag chains, plastic chains etc;
2, Main materials: It is 40Mn. 40Cr, 45Mn alloy steel, SUS304, and POM Plastic for plates, 10#, 20#, 20CrMnMo, 30CrMnTi for pins and rollers;
3, Heat treatment: Carburizing, Austemper Stressing, nitro-caburizing harden etc;
4, Surface: Shot peening, black, blue or original;
5, Package way: Plastic bag+ carton box+ plywood case
For example, our agricultural roller chains are often fabricated as below:
CA550, CA557, CA620, 38.4V, 38.4VB, CA550H, S32, S42, S45, S55, S62, S77, S88, S38, S55H, 55V etc.| S type steel agricultural chains |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Depth of chain plates | Pin diameter | Pin length | Plate thickness | Ultimate tensile strength | Weight per meter |
| p | d1(Max) | b1(min) | h2(Max) | d2(Max) | b4(Max) | T(Max) | Qo(min) | Q |
| mm | mm | mm | mm | mm | mm | mm | Kn | Kg/m |
| CA550 | 41.4 | 16.87 | 19.81 | 19.05 | 7.19 | 38.2 | 2.7 | 39.8 | 1.94 |
| CA550V | 41.4 | 16.8 | 19.05 | 13.5 | 8.28 | 39.1 | 3 | 68.7 | 2.24 |
| C550-H | 41.4 | 16.87 | 19.81 | 19.05 | 7.19 | 39 | 3 | 39.8 | 2.24 |
| CA555 | 41.4 | 16.87 | 12.7 | 19.8 | 7.19 | 32 | 3.1 | 56 | 1.72 |
| CA557 | 41.4 | 17.78 | 20.24 | 19.8 | 8 | 40.8 | 3.1 | 74.3 | 2.6 |
| CA620 | 42.01 | 17.91 | 24.51 | 19.05 | 7.19 | 42.2 | 3.15 | 39.1 | 2.35 |
| CA650 | 50.8 | 25 | 18.9 | 25 | 9.53 | 44.7 | 4 | 90 | 3.49 |
| C2040F1(C415HF1) | 12.7 | 7.95 | 4.88 | 12 | 3.96 | 16.3 | 1.5 | 13.8 | 0.54 |
| 208AF2 | 12.7 | 7.95 | 4.88 | 12 | 3.96 | 14.5 | 1.5 | 13.8 | |
| C210AF1 | 31.75 | 10.16 | 9.4 | 15 | 5.08 | 13.2 | 2.03 | 21.8 | |
| C212AF1 | 38.1 | 11.91 | 12.57 | 18 | 5.94 | 28.3 | 2.03 | 31.1 | |
| C2042F2 | 12.7 | 7.95 | 4.88 | 12 | 3.96 | 14.8 | 1.5 | 13.8 | 0.62 |
| C2050F3 | 31.75 | 10.16 | 9.4 | 15 | 5.08 | 23.2 | 2.03 | 21.8 | 0.95 |
| C2060F4 | 38.1 | 11.91 | 12.57 | 18.08 | 5.94 | 28.5 | 2.42 | 31.1 | 1.69 |
| CA2060H | 38.1 | 11.91 | 12.7 | 17.3 | 5.94 | 31.6 | 3.25 | 40.5 | 1.45 |
| CA2063H | 38.1 | 11.89 | 12.7 | 17.3 | 5.94 | 34.2 | 2.8 | 40.5 | 1.65 |
| CA550F4 | 41.4 | 14.35 | 20.24 | 17.3 | 7.14 | 38.5 | 2.8 | 52 | 1.78 |
| CA550F5 | 41.4 | 16.66 | 20.24 | 17.3 | 7.14 | 38.5 | 3.25 | 52 | 1.97 |
| CAE44151 | 28.575 | 15.88 | 16.2 | 17.3 | 7.92 | 38.9 | 2.5 | 64.5 | 2.73 |
| CA960 | 41.4 | 17.78 | 22.61 | | 8.9 | 43 | 3 | 72.6 | 6.94 |
| CA550VF2 | 41.4 | 16.8 | 19.05 | | 8.28 | 38.8 | 3 | 68.7 | 2.13 |
| 38.4R | 38.4 | 15.88 | 19.05 | 17.3 | 6.92 | 36.4 | 3 | 41.2 | 1.7 |
| 38.4V | 38.4 | 15.88 | 18 | 17.3 | 6.92 | 38 | 3 | 50 | 1.83 |
| 38.4VB | 38.4 | 15.88 | 19.05 | 26.2 | 8.28 | 39.4 | 2.8 | 62.5 | 2.17 |
| 55VD | 41.4 | 17.8 | 23 | 26.2 | 8.22 | 42.4 | 3 | 45 | 2.34 |
| S62F3 | 41.91 | 19.05 | 25.4 | 26.2 | 8 | 44.8 | 3 | 58.7 | 3.12 |
| A550 | 41.4 | 16.87 | 20.22 | 19.05 | 7.14 | 37.35 | 2.67 | 50 | 1.6 |
| A555 | 41.4 | 16.66 | 12.7 | 19.05 | 7.14 | 31.8 | 3.18 | 50 | 1.5 |
| A557 | 41.4 | 17.78 | 20.14 | 19.05 | 7.94 | 40 | 3.18 | 60 | 2.35 |
| A620 | 42.01 | 17.68 | 24.99 | 19.05 | 7.14 | 44.1 | 3.18 | 23 | 2.1 |
| 55VF1H2 | 41.4 | 17.9 | 22.23 | 21.4 | 8.22 | 48.4 | 3 | 60 | 2.92 |
| CA650F1 | 50.8 | 25 | 19 | 25 | 11.28 | 53.7 | 3.5 | 138 | 4.36 |
| S55HF2 | 41.4 | 23 | 22.23 | 20 | 8.28 | 45.5 | 3 | 47.5 | 4.27 |
| S55HF1 | 41.4 | 17.78 | 22.23 | 20.4 | 8.28 | 42.8 | 3 | 45 | 2.9 |
| 216BF1 | 50.8 | 15.88 | 17.02 | 22 | 8.28 | 35.8 | 3 | 60 | |
| CA650F3 | 50.8 | 19.05 | 19.05 | 25 | 9.53 | 37.8 | 3.5 | 90 | |
| CA650F2 | 50.8 | 20 | 18.9 | 25 | 9.53 | 44.7 | 4 | 95 | 2.98 |
| S62R-C6E | 41.91 | 19.05 | 25.8 | 20.1 | 8.5 | 44.6 | 3 | 42 | |
We are a leading manufacturer of mechanical transmission spare parts, as well as several years one of reliable and trustworthy vendors for European, America, Iran market etc. Our main items are roller chains, conveyor chains, transmission chain, pulleys, V-belts, sprockets, spur gears, bevel gear, gear shafts, roller bearings, rollers, conveyor belts etc.

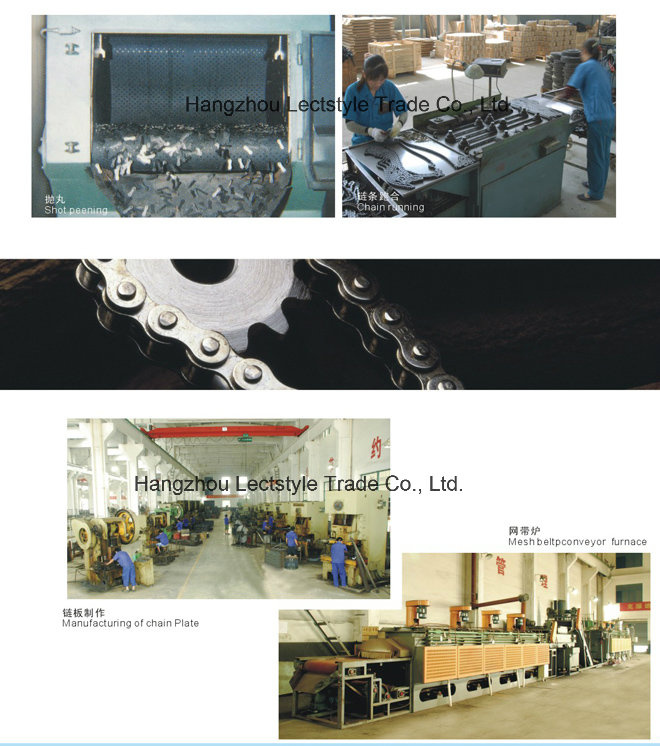

Our production workshop:

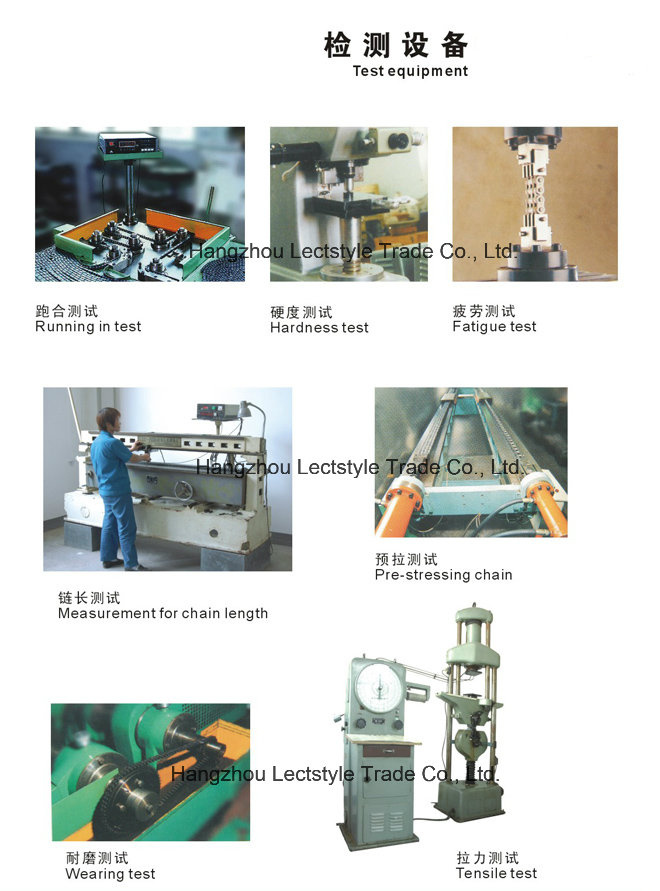

Our inspection equipments:

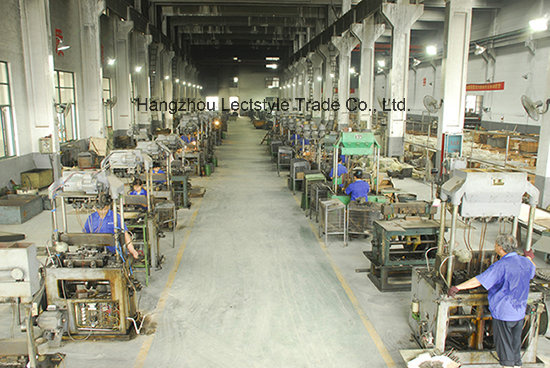

Our assembled workshop:

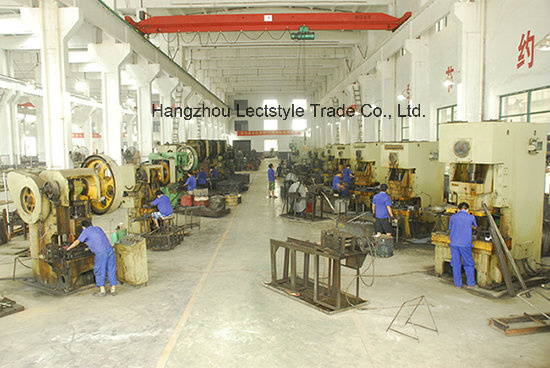

Our plate punching workshop:
At present, For South American, European, and Asian market, our superior products are fabricated according to your requirement and our quality meets ISO, ASME, DIN standard.
I hope we can do business together, and look forward to hearing from you soon
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
