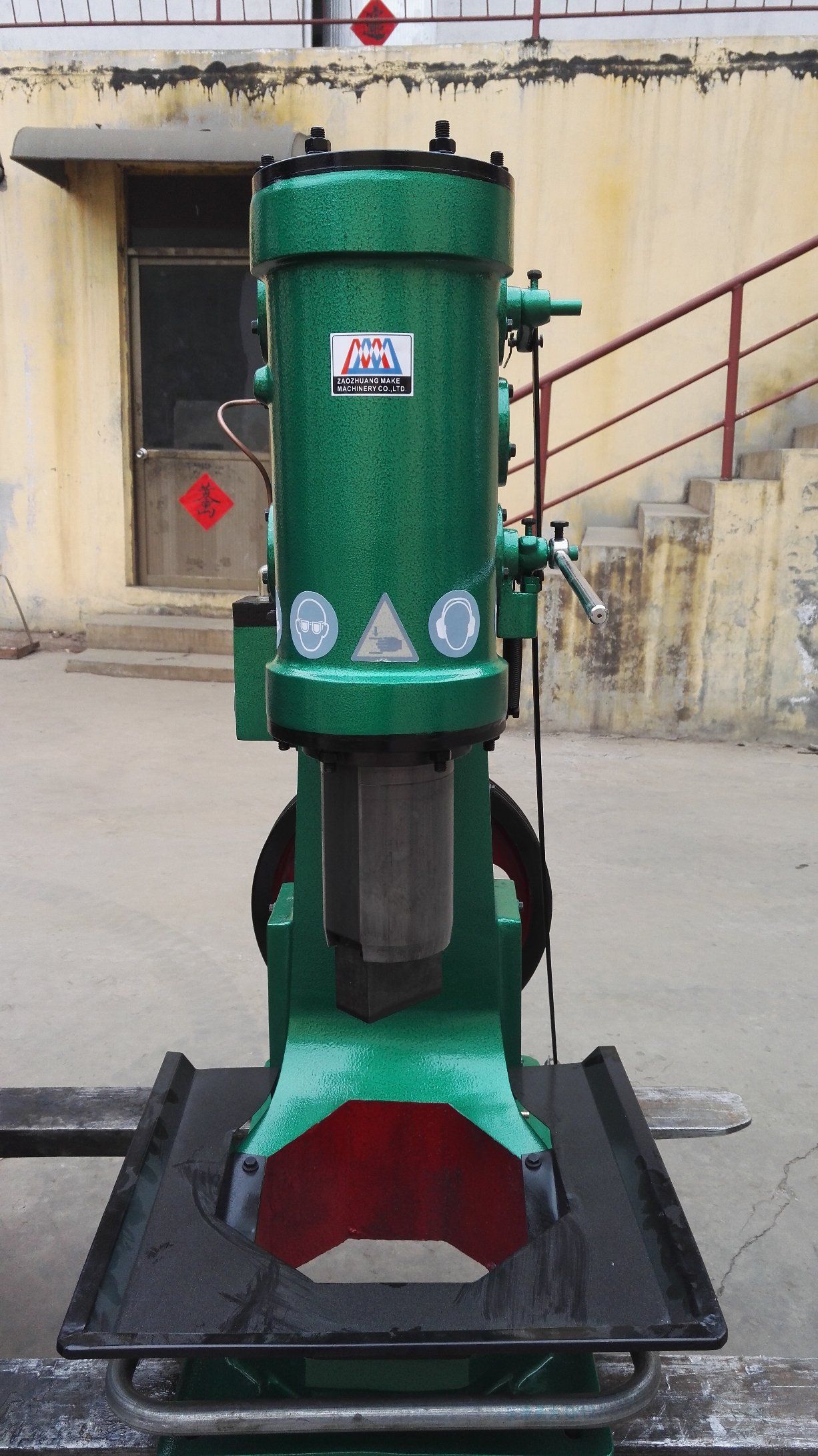

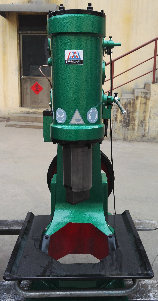

The air hammer with small size,low noise,simple structure , easy operation ,flexible movement and convenient to transit , installation ,maintenance ,the type is widely used for various of free forging works , such as drawingout ,upsetting ,punching ,chiseling .forging welding ,bending and twisting . It is also used for opendie forging in bolster dies. it is suitable for free forging works of all kinds of different shape parts , especially suitable for village township enterprise and selfemployed forge small agriculture tools . For example sickle ,horseshoes ,Spike ,hoe etc . At the same time ,the industrial enterprise use the air hammer to forge the steel ball , scaffold and many other factories and mines ,construction supplies . In addition the series air hammer is very commonly professional blacksmith's iron tools that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
Specifications 1.Durable and great power 2.Easy installation and operation 3.Convenient maintenance 4.Professional hammer die upon your need
SPECIFICATION
UNIT
C41-40kg
C41-50kg
C41-75kg
C41-150kg
separate/single
separate
separate
separate
Max. hit energy
kj
0.53
0.7
1
2.2
Height of working area
mm
245
265
300
370
Hit number
min -1
245
230
210
180
Dimension of top and bottom die surface(LxW)
mm
120*50
120*55
145*65
200*85
Max. square steel can be forged
mm
52*52
52*52
65*65
130*130
Max. round steel can be forged(Diameter)
mm
¢68
¢68
¢85
¢145
Motor power
kw
4
5.5
7.5
15
Speeds of motor
r. p. m
1440
1440
1440
1470
Anvil weight
kg
400/0
600
850
1800
Total weight
kg
1350/880
1700
2800
5060
Overall dimensions(L*W*H)
mm
1080*600*1430
1320*670*1620
1400*760*1950
2080*1240*2350
