Prod Model: |
C6 |
Name: |
C6 Desk-Top Lathe |
Color: |
Customized Option |
Function: |
Machining Metal |
Usage: |
General |
Precision: |
High Precision |
Voltage: |
Customer's Requirement |
Chuck: |
125mm 3 Jaw Chuck |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Single-tool Holder CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Manual |
Setting Mode: |
Table |
Product Description

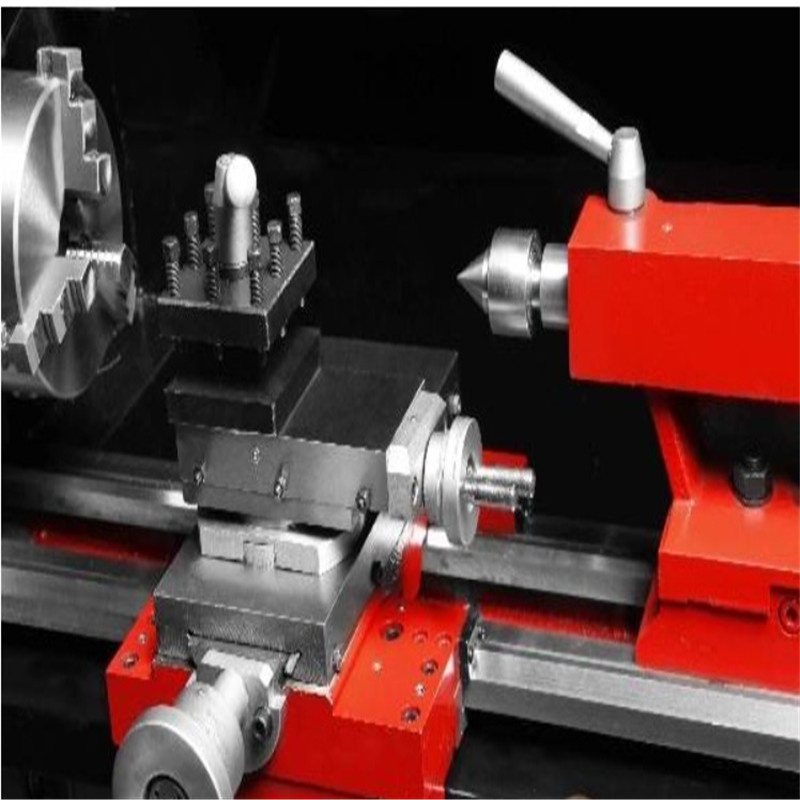

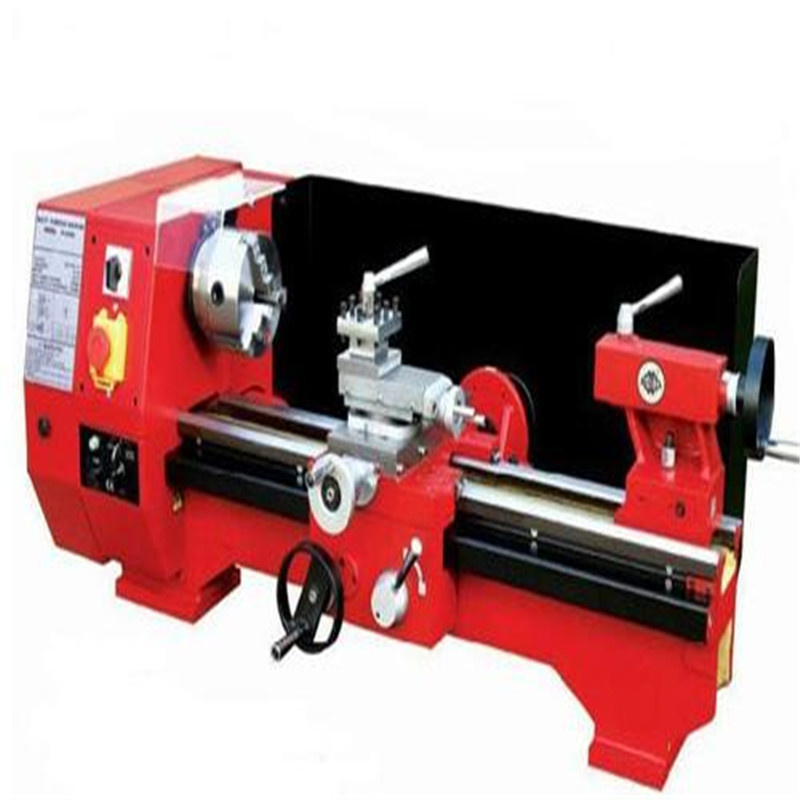

C6 550w desk-top lathe manual sieg lathe
Specifications
swing over bed 250mm
distance between centers 400/550mm
spindle hole 20mm
spindle taper MT3
tailstock taper MT2
cross slide travel 110mm
metric version 0.4-3mm imperial version 10-44 TPI
packing size 1140mmX600mmX450mm
gross weight 180kgs
standard attachment

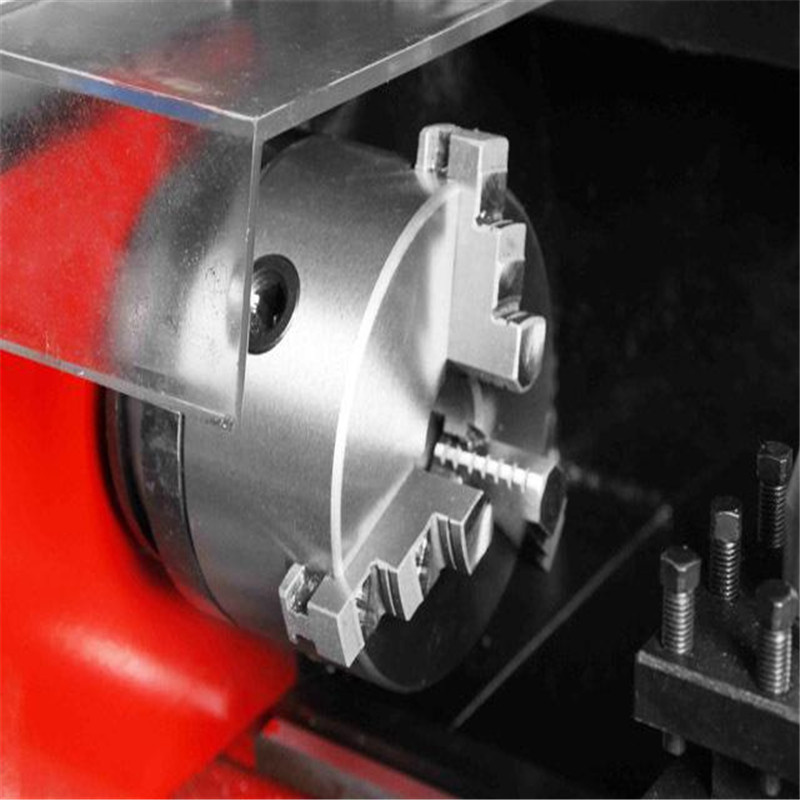

125mm 3 jaw chuck,MT2 center,change gear set,wrench set,oil can
Standard attachment: 100mm 3-jaw chuck, MT2 center, changing gear set, wrench set, oil can
Optional: DRCD digital readout for cutting depth available
Our company is a big exporter of various kinds of steel and iron products, metal mineral.
One of our strongest parts is steel rolling mill and machinery/ equipment & metal processing.
Here are our steel products:
Steel plate/sheet/coil, steel pipe/tube, steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, wire rod/steel wire and stainless steel products.
The steel rolling mill offered by us can produce steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, steel rails and wire rod/steel wire.
Meantime, we are also dealing with the forging, casting, machining, heat treatment, melted-zinc-bath, other equipment (motor, reducer, etc) and furnace (heating, annealing, tempering, melting and so on).
If you have any doubts, please contact us without hesitate and send us the full inquiry with the detailed specification, material, size & quantity.
