Prod Model: |
C6240 |
Net Weght/Gross Weight: |
1970/2320kg |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Tool Holder: |
Double-tool Holder CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Automatic |
Setting Mode: |
Table |
Precision: |
Precision |
Product Description

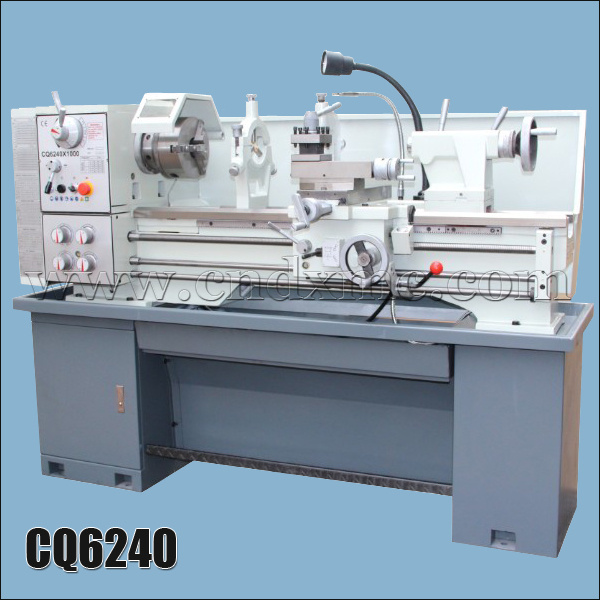

C6240 Lathe Machine (C6240 Lathe machine)
Bed Lathe C6240 x1000:
Gap-Bed Lathe is suitable for performing a wide variety of cutting operation such as international and external Turning, facing, slotting and machining of metric, module and diametric threads, as well as drilling Boring, reaming, especially for batch producing.
The Gap-Bed lathe can process bigger diametrical spindles, sleeves and disc work pieces, the bed-ways are ultra-frequency hardened and grinded to secure longer life. The lathe is full of easy operation, high accuracy. Good rigidity, low noise and such advantages.
This series Gap-Bed lathes can be mounted with metric or inch lead screw, right or left-hand apron hand wheel, ISO spindle nose, as well as being installed different voltage and frequency.
Standard parts:
1.3-Jaw chuck 1 set
2.3-Jaw chuck base 1 set
3. Special Wrenches 1 set
4. Driving Plate 2 PCS
5. Foot Brake 1 PCS
Option parts:
1.4-Jaw chuck 1 set
2.4-Jaw chuck base 1 set
3. Steady rest 1 set
4. Follower rest 2 set
5. Face Plate 1 PCS
Specification for lathe C6240:
TECHNICAL SPECIFICATION |
Model | C6240 |
Max.distance of between centers | 750mm 1000mm 1250mm 1500mm |
Max.swing over bed | 400mm |
Max.swing over tool-post | 220mm |
Max.swing over gap | 575mm |
Bore of spindle | φ52mm |
Effective length of gap | 200mm |
Taper of bore in spindle | Morse No.6 |
Number and range of spindle spedds | 16/19-1700rpm |
Number of spindle cross/longitudinal feeds | 145 |
Range of spindle longitudinal feeds | 0.04-3.91mm/r |
Range of spindle cross feeds | 0.02-1.95mm/r |
Metric thread number/pitches range | 30/0.45-20mm |
withworth thread number/pitches range | 35/80-1.75t.p.i |
Module thread number/pitches range | 25/0.25-6mm |
Diametral thread number/pitches range | 30/DP160-3.5 |
Max.travel of cross tool-post | 255mm |
Max.travel of upper tool-post | 130mm |
Tool post swivelling tool-post | ±45° |
Power of apron rapid-travelled motor | 90w |
Speed of carriage rapid-travelled motor | |
Power of main motor | 4/5.5kw |
Power of cool pump | |
