| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | C8 |
|---|---|
| Frequency Response: | 90Hz-18kHz(±3dB) 50Hz-20kHz(-10dB) |
| Nominal Coverage (-6dB): | 80°(H)80°(V)Constant Directivity |
| Sensitivity (@1W/1m): | 93dB Spl 90-20k Hz |
| Power Rating: | 250W(Continuous) 1000W (Peak) |
| Nominal Impedance: | 8ohm |
| Maximum Spl: | 117dB(Continuous)123dB (Peak) |
| Lf: | 1 X 8" Driver |
| Hf: | 1 X 36mm Diaphragm Compression Driver |
| Weight: | 9.8kg |
| Materials: | 15mm, 18mm Multi-Plywood |
| Noise: | ≥105dB |
| Hi-Fi: | Hi-Fi |
| Operation Mode: | Wire / Remote Control |
| Speaker System: | Optional Combination |
| Speaker Material: | Wood |
| Application: | Commercial |
| Certification: | RoHS |
| THD: | >0.01% |
| Monitor: | N/a |
Feature:
1.36mm HF compression driver
2.The frequency response will extend to 50Hz
3.Excellent vocal performance
Applications:
Church
Fill system
Conference room
| TECHNICAL SPECIFICATION | |
| FREQUENCY RESPONSE: | 90Hz-18KHz(±3dB) 50Hz-20KHz(-10dB) |
| NOMINAL COVERAGE(-6dB): | 80°(H)80°(V)Constant directivity |
| SENSITIVITY (@1w/1m): | 93dB SPL 90-20k Hz |
| POWER RATING(AES): | 250W(continuous) 1000W(peak) 500W(recommended) |
| NOMINAL IMPEDANCE: | 8 Ohm |
| MAXIMUM SPL: | 117dB (continuous)123dB(peak) |
| DRIVERS: | LF 1x 8" driver HF 1 x 36mm diaphragm compression driver |
| PHYSICAL DATA | |
| DIMENSIONS (H x W x D): | 473 x 228 x 256.7mm |
| WEIGHT: | 9.8kg |
| CONNECTORS: | 2 Neutrik NL4MP connectors |
| SPEAKER CABLES: | 1+1- |
| MATERIALS: | 15mm, 18mm multi-plywood |
| FINISH: | Black epoxy mesh grille with acoustically |
| GRILLE: | Reticulated foam |
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
Our Advantages:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.

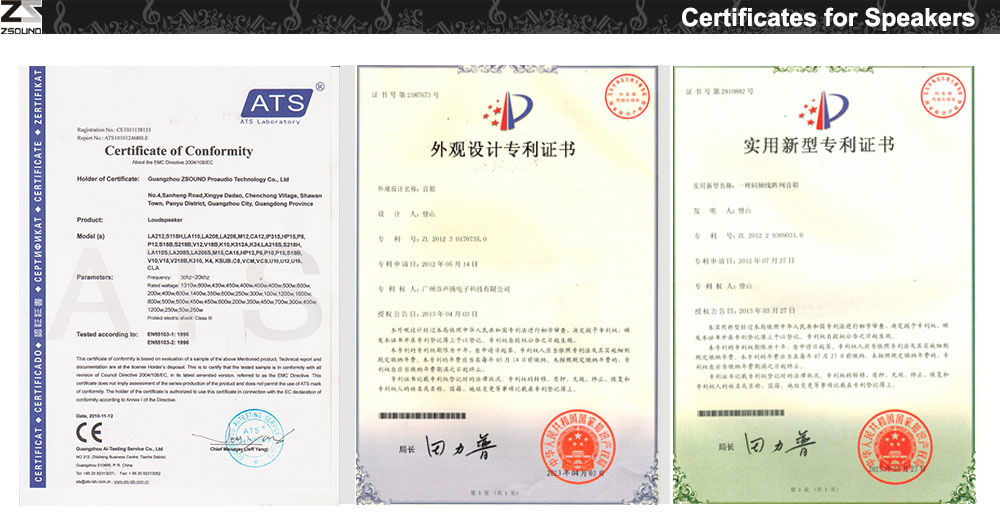

3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.

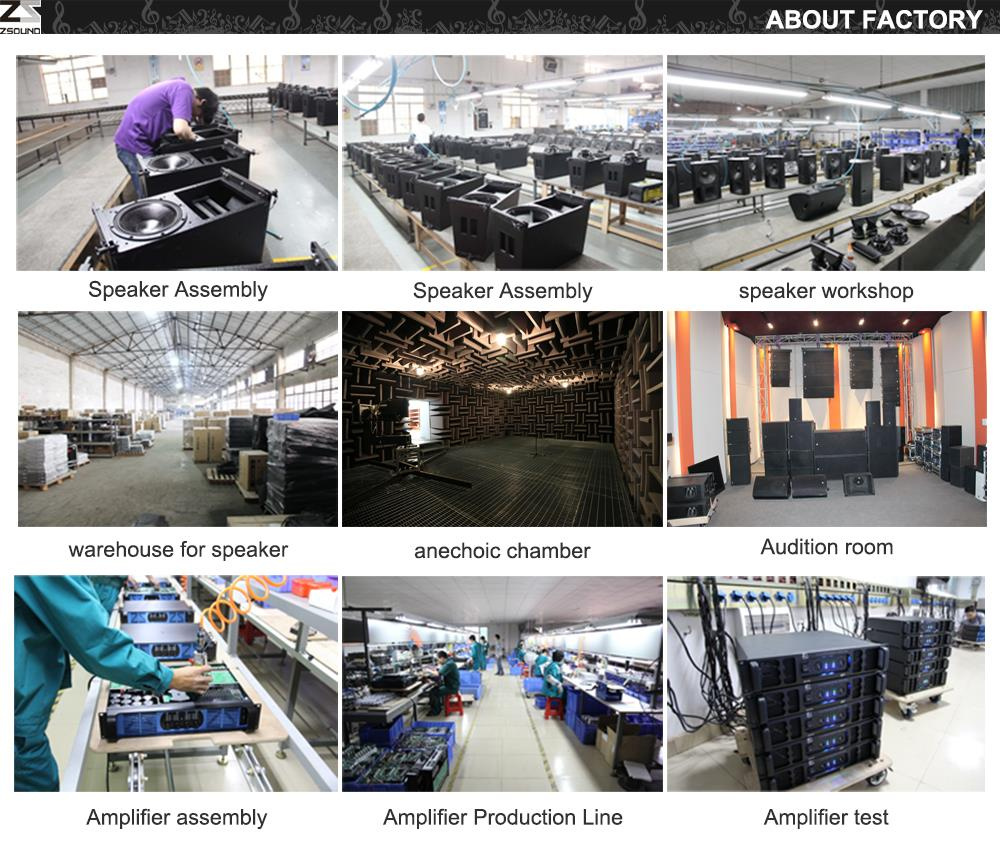

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
