Prod Model: |
Cable Bracket 1 |
Colour: |
Yellow,Green, Grey,etc |
Width: |
50/100/150/200/250/300/400/500mm |
Thickness: |
3.0mm-10.0mm |
Application: |
Cable Laying |
Material: |
FRP |
Product Description

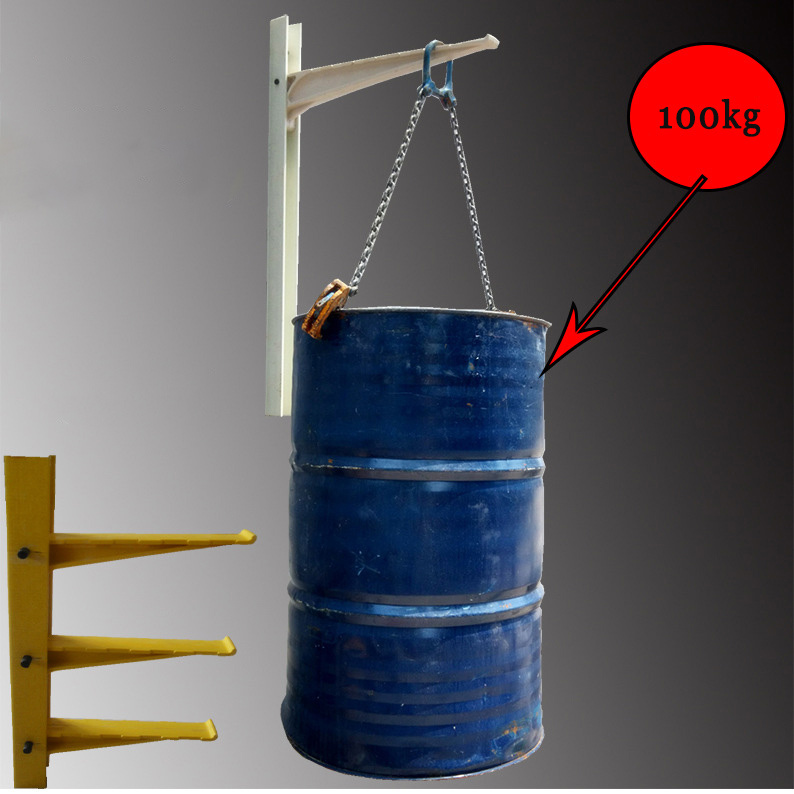

Cable Bracket For Frp Steel Cable Bracket Support:1) Corrosion resistance
2) Light proportion
3) Electrical insulation performance
4) Excellent fire performance
5) Long life

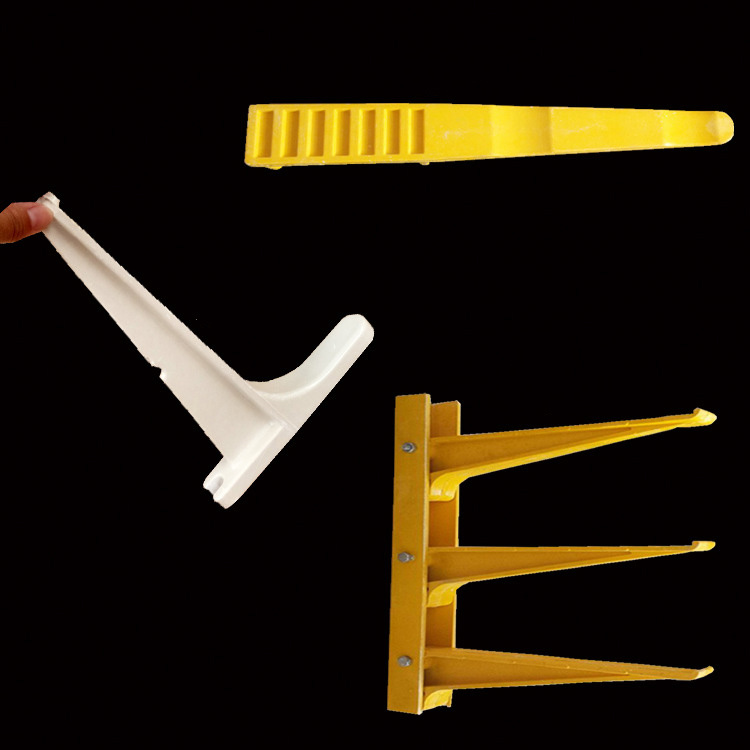

Product Type | Model | Specification | Remark |
One-piece molded cable bracket | ZT-3/350 | Arm length : 350mm | Column length : 570mm Interlayer spacing: 250mm |
ZT-5/380 | Arm length : 350mm | Column length : 1010mm Interlayer spacing: 250mm |
Combined with molded cable bracket | ZH-500 | Column length:560mm | Can be arbitrary splice longer, no increase in worked |
| Cantilever length: 500mm | Each column has 5 plug hole |
Screw type molded cable bracket | LD-250 | Arm length : 250mm | The roots wide 190mm, round hole diameter is 160mm |
LD-250 | Arm length : 350mm | The roots wide 190mm, two hole spacing is 150mm |
Embedded type molded cable bracket | YM-400/150 | Arm length : 150mm | Embedded into the wall is 250mm, the exposed is 150mm |
YM-400/200 | Arm length : 200mm | Embedded into the wall is 200mm, the exposed is 200mm |
YM-450/200 | Arm length : 450mm | Embedded into the wall is 250mm, the exposed is 200mm |
YM-400/250 | Arm length : 250mm | Embedded into the wall is 150mm, the exposed is 250mm |
YM-450/300 | Arm length : 450mm | Embedded into the wall is 150mm, the exposed is 300mm |
YM-500/250 | Arm length : 500mm | Embedded into the wall is 250mm, the exposed is 250mm |
YM-500/300 | Arm length : 500mm | Embedded into the wall is 200mm, the exposed is 300mm |
YM-540/300 | Arm length : 540mm | Embedded into the wall is 240mm, the exposed is 300mm |
YM-540/350 | Arm length : 540mm | Embedded into the wall is 190mm, the exposed is 350mm |
Advantages1.Insulating material:Excellent materials with high insulation resistance; high power frequency dielectric strength; keeping good dielectric property under high frequency, thus rendering high safety if used as enclosure of an electic device.
2.Corrosion resistance:Good corrosion resistance, resisting corrosion of acid, alkali and salt solution with relative low concentration, as well as many kinds of oil, organic solvents and sea water.
3.Light weight, high strength and toughness:
Having high tensile strength, bending strength and impact toughness, with specific gravity between 1.75-1.95, being an idea substitution of ordinary plastics.
4.Microwave-through property:Don't reflect and break microwave propagation, can be used in wireless meter reading and remote monitoring.
5.Weathering resistance and thermal endurance and low-temperature resistance:With good weathering resistance; keeping good mechanical perfaormance between (50°C~+160°C); service life exceeding 20 years.
6.Flame-retardant material generating merely thinner gas:Fire resistance grade of FVO, gas density grade of 15, registered gas toxicity is quasi-safety class 1(ZA1).
7.Thermal insulation material:It is a sort of thermal insulation material, and can abate the impact on internal temperature of box bodies caused by change in ambient temperature; compared with ordinary plastics, it can effectively reduce condensation and frost inside the box.
8.Easy to be machined or processed:Having good impact resistance; not sensitive to notch(generating no tidy fracture surface, no crack extending); good machinability(can be drilled and cut).
Application:For a variety of cable cross-section of cable laying occasions, used in power cables and telecommunications cable trench ditch fixed on the support bracket of the cable. Best purchase choice for grid project.
