| Prod Model: |
HHY-430 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicable For: |
Crimping on Power Cable and Wire |
| Output: |
16 Ton |
| Crimping Capacity: |
50-400mm2 |
| Crimping Style: |
Hexagon |
| Two Speed Equipment: |
Assure Rapid Piston Advance |
| Max Stroke: |
38 Mm |
| Standard Dies: |
9 Sets |
| Dies Size: |
50 70 95 120 150 185 240 300 400mm2 |
| Package: |
Plastic Carrying Case |
| Size: |
770*240*130mm |
Product Description

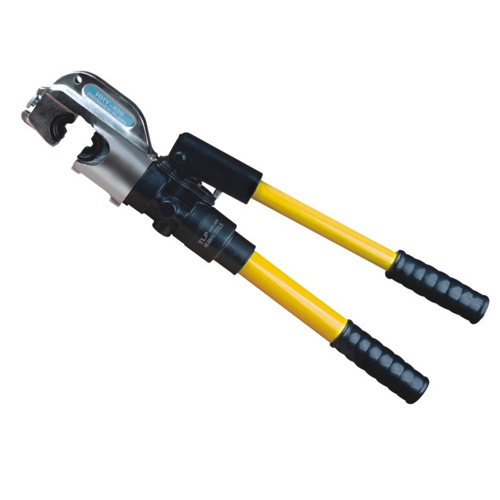

Hydraulic Crimping Tool
HHY-430 is a professionla tool for crimping copper and aluminum terminals with hexagonal type and the crimping range is 50-400mm2 with automatic safety device.
Specifications
Elegant design and fine looking
Two-speed ram advances fast and shifs to low speed to complete the crimp
Built-in safety valve, automiatic pressure release when rated pressure is reached
Main body forged, with strong intensity
Handles are made of glass fiber reinforced plastics, insulated
|
Model |
HHY-430 |
|
Max. pressure |
11 T |
|
Max. stroke |
32 mm |
|
Crimping range |
50-400 mm2 |
|
Size of standard dies |
50, 70, 95, 120, 150, 185, 240, 300, 400 |
|
Crimp pattern |
hexagonal type |
|
G. W. |
11kg |
|
Package |
plastic box |
