| Prod Model: |
CYO-300C |
| Stroke: |
30mm2 |
| Weight: |
6.2kg |
| Crimping Force: |
10ton |
| Package: |
Plastic Case |
| Types: |
Wire Clippers |
| Function: |
Crimping |
| Performance: |
Cutting |
| Shaft Style: |
Straight |
| Structure: |
Box Joint |
| Brand: |
Utl |
| Handle Color: |
Red |
| Size: |
280mm |
Product Description

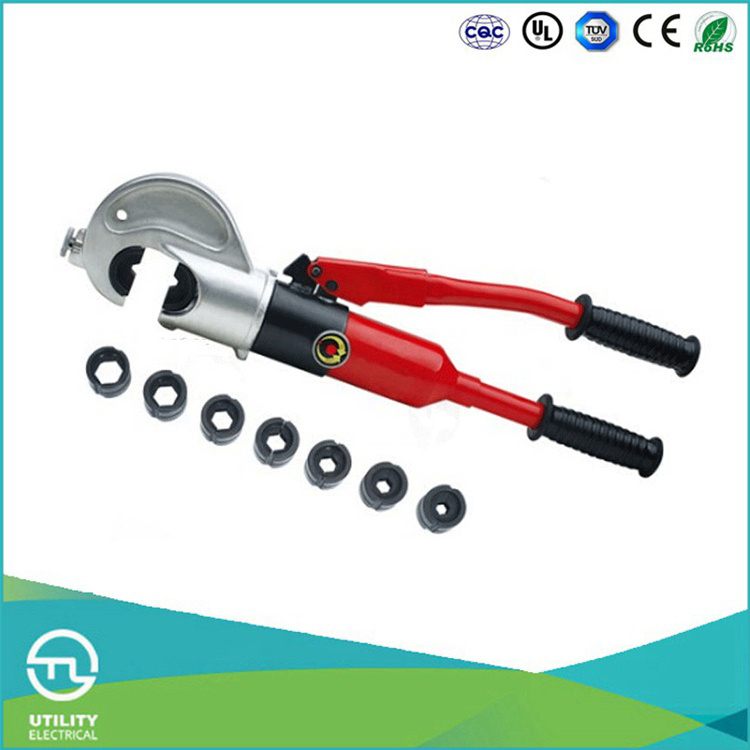

UTL Hot New Products Cable Crimping Hydraulic Tool With Safety System Insid ut
utl Service
We produce:Terminal blocks , cold connectors , crimping machine , push button , indicator light , cable gland , waterproof box
We can supply you all these electric components toghther, saving your time serching
utl Service
We produce:Terminal blocks , cold connectors , crimping machine , push button , indicator light , cable gland , waterproof box
We can supply you all these electric components toghther, saving your time serchingweht
Features:
It is applicable crimping cable copper and aluminum terminals.
Hexagonal mould is adopted to ensure tight press connection.
With two stages speed of high and low pressure,it is easy for operating oil feeding speed and convenient for save oil by adopting rotary type extrusion mode.
| Model No. | CYO-300C |
| Capacity | 35-240mm.sq (Al Terminal), 50-300mm.sq(Cu Terminal) |
| Crimping force | 12ton |
| Stroke | 30mm |
| Weight | 6.2kg |
| Packaging Size | 545*130*235mm |
| Package | Plastic Case |
| Standard dies | 50, 70, 95, 120, 150, 185, 240, 300mm.sq |
| Design | Scientific leverage design saves energy when operating |
| Payment term | A.Below US$300,western,paypal accepted
B.Above US$300,bank account |
| Certificate | TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC approved standard |
| Logo | Customized logo are available as request |
| Design ability | We can supply sample,OEM&ODM is welcome |
