Cable-Drive hydraulic power unit four post car lift with CE(409A) PEAK's Series of 4 Post Lift
Model
Lifting Capacity
409
4.0T (9,000 lbs)
409A
4.0T (9,000 lbs)
412
5.5T (12,000 lbs)
412A
5.5T (12,000 lbs)
414
6.5T (14,000 lbs)
414A
6.5T (14,000 lbs)
* "A" with alignment function.

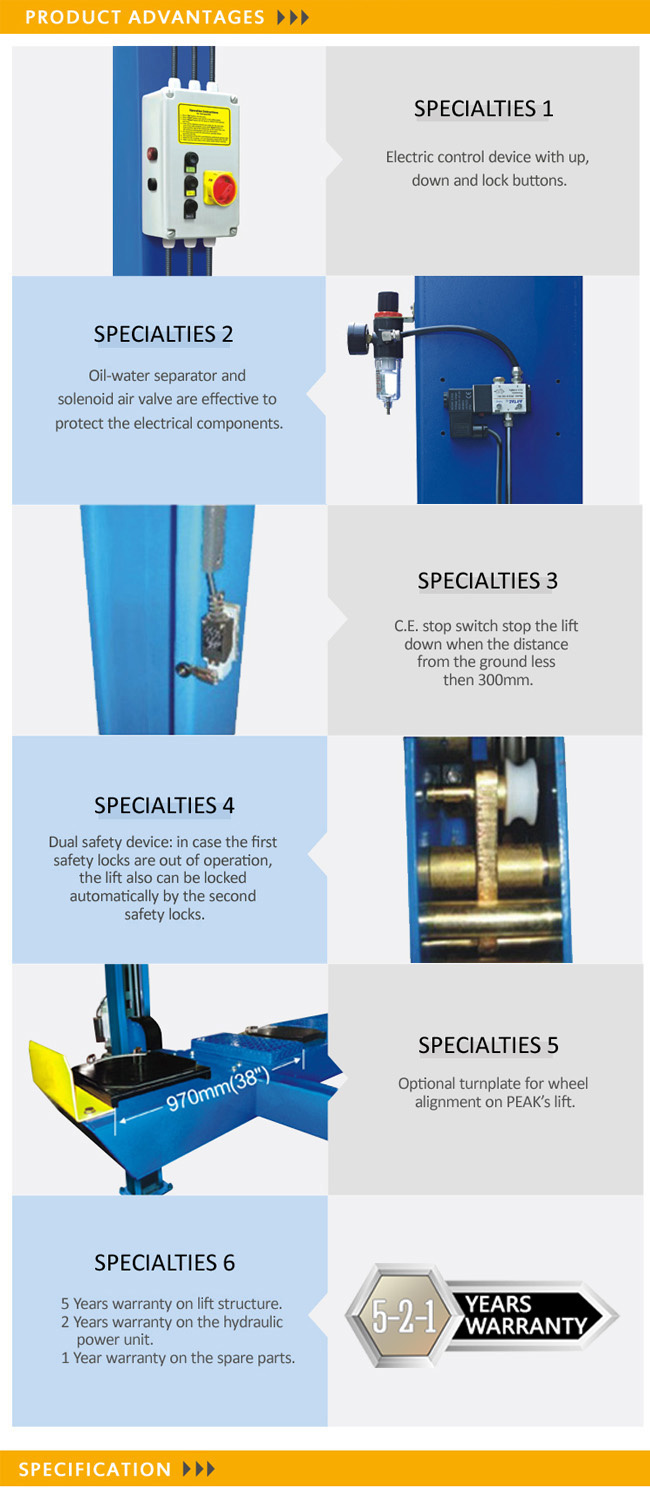

Feature • Electric-air control operation system. • Mechanical self-lock and air-drived safety release. • Electrical hydraulic power system, cable-drived. • Non-skid diamond platform. • Adjustable platform and adjustable safety lock ladders. • Two adjustable turntable positions to fit the different wheel base. • Dual safety device: In case the primary safety locks are out of operation,the lift would also be locked automatically by a second safety device. • Optional Jack: J6H (hand pump), J6A (SPX Air pump) and include 1.5", 2.5" extension adapters. • Long warranty: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit(not including consumption parts such as rubber pad).

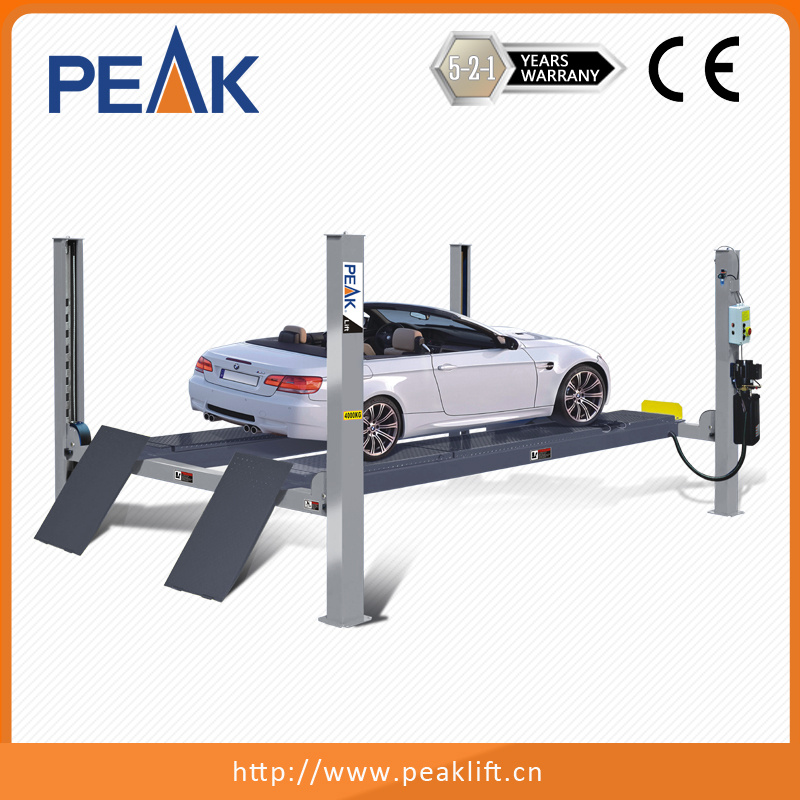

409A Cable-Drive Four Post Car Hoist With Alignment
Model
409A
Style
Alignment Four Post Car Lift
Lifting Capacity
4.0T (9,000lbs)
Lifting Time
45 Seconds

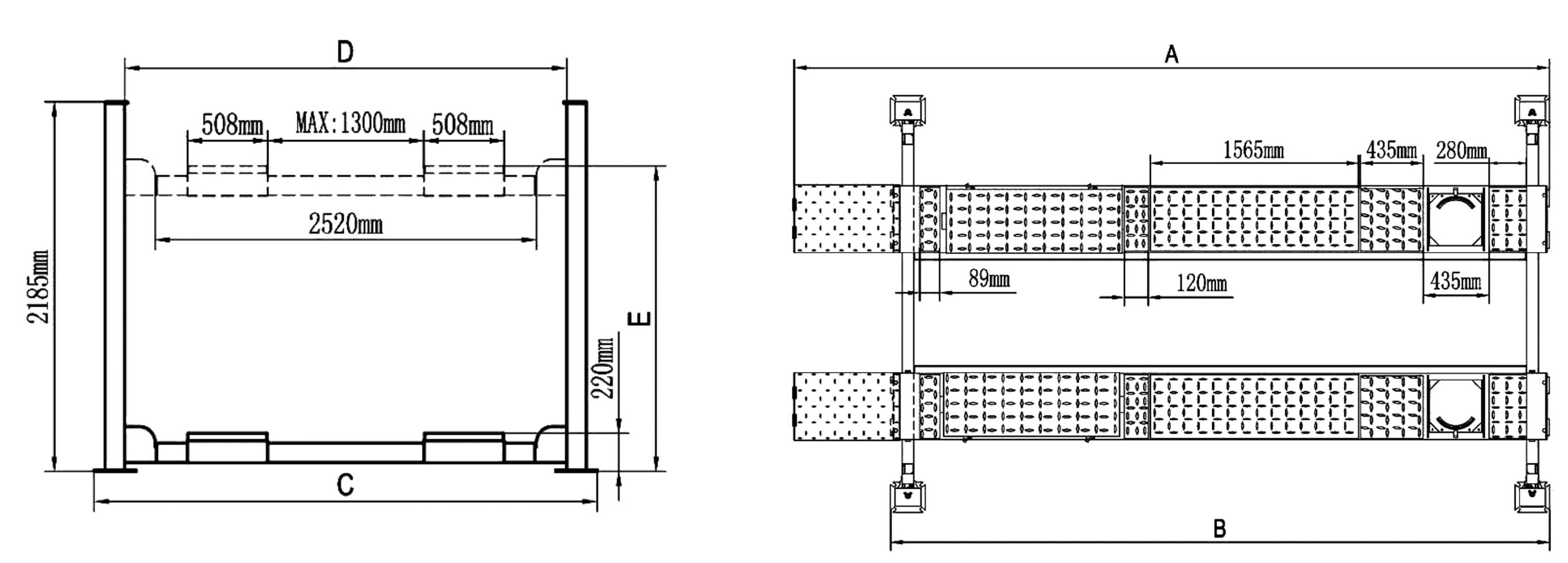

A
Overall Length (With Ramps)
5512mm (217")
B
Overall Length (No Ramps)
4600mm(181 1/8")
C
Overall Width
3208mm(126 1/4")
D
Width Between Columns
2852mm(112 1/4")
E
Lifting Height
1915mm (75 3/8")
Gross Weight
1145kg(2,524lbs)
Motor
2.0/3.0HP
Packing Dimension
4670 X 560 X 720 mm
QTY of Container
12 Units/20'GP
24 Units/40'GP
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
PEAK corporation is located in Foshan ( near Guangzhou, China) has over 18 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.

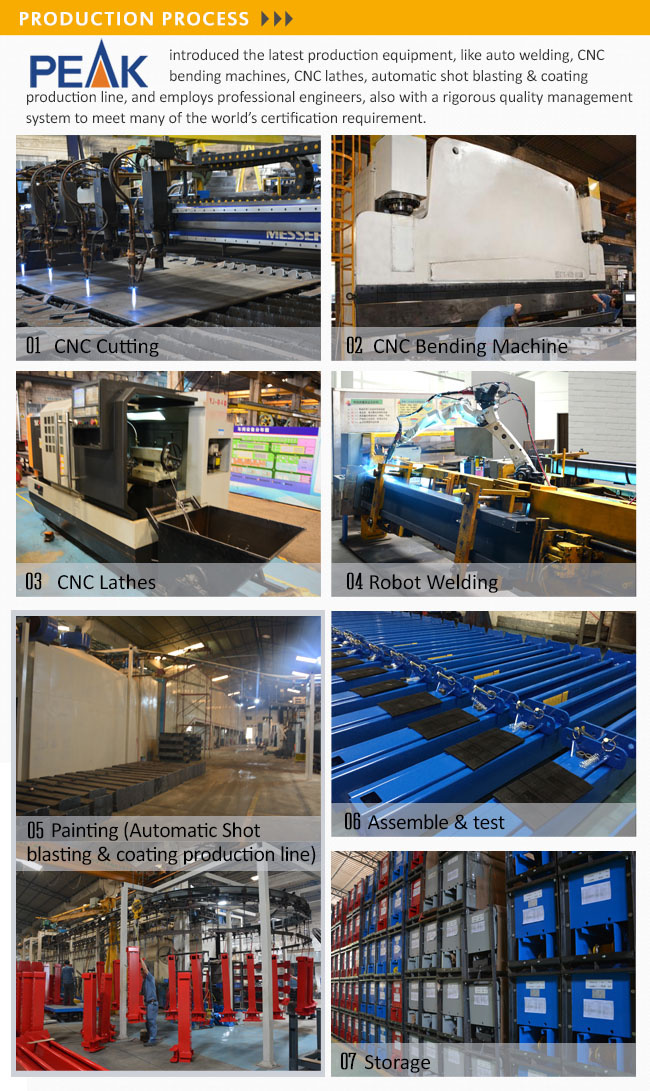

PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.
At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.
PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.
Each PEAK lift is designed for customers who seek the world-class products!
