| Prod Model: |
MZ |
| HRC: |
45/50/55/60 |

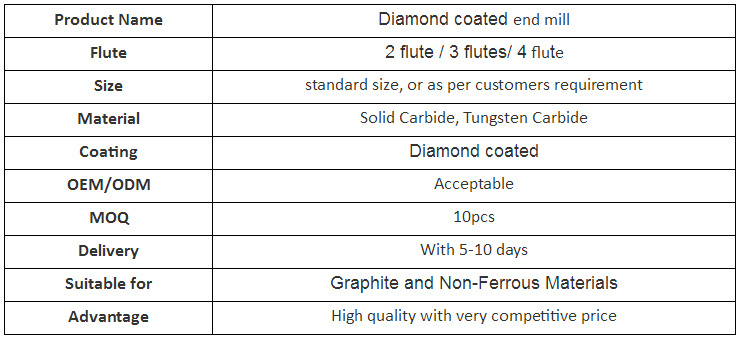

Product Description
Product information:
1) Types: square end mill, ball nose end mill, corner radius end mill, roughing end mill
2) Size: Diameter 1.0mm-25mm standard and non-standard.
3) Type of flute: (standard and non standard 2-4 flute) deep groove, round head, end angle R.
4) Helix angle:45°.
5) Material: tungsten carbide
6) Finish: TiAIN, ALTiN, TiN coating.And Bright finish.
7) Workpiece: carbon steel, alloy steel, cast steel, tooling steel, mould steel, aluminum alloy steel, non ferrous alloy
8) We also can produce special tools according to requirements of drawings or samples.
Advantages
1. Higher hardness,higher wear resistance,higher toughness,better deflection and fracture resistance,results in a long life and good size accuracy
2. Custom oriented tool designing,innovated from Germany technology,based on 100% custom's satisfaction motto
3. Abundant tool choices,suitable for every aspect of today's routing work requirements
4. Fully automatic manufacturing with famous Switzerland facilities under tough process control.
5. Critial quality inspection control under the criteria of ISO
Packaging Details
Package of diamond coated end mill:1pc/plastic tube, 10pcs one group in one box or as per customer's requirement
Delivery Time
we delivery diamond coated end mill within 30 days
Detail description
Product description
standard carbide 2 flutes diamond coated ball nose end mills specifications
| Radius | cutside diameter | shank diameter | flute length | effective length | neck diameter | overall length |
| 0.1 | 0.2 | 4 | 1 | 3 | 0.18 | 50 |
| 0.15 | 0.3 | 4 | 1 | 3 | 0.28 | 50 |
| 0.15 | 0.3 | 4 | 1 | 5 | 0.28 | 50 |
| 0.2 | 0.4 | 4 | 1.5 | 3 | 0.38 | 50 |
| 0.2 | 0.5 | 4 | 1.5 | 5 | 0.38 | 50 |
| 0.25 | 0.5 | 4 | 1.5 | 6 | 0.46 | 50 |
| 0.25 | 0.5 | 4 | 1.5 | 8 | 0.46 | 50 |
| 0.3 | 0.6 | 4 | 2 | 4 | 0.55 | 50 |
| 0.3 | 0.6 | 4 | 2 | 6 | 0.55 | 50 |
| 0.4 | 0.8 | 4 | 2 | 8 | 0.75 | 50 |
| 0.4 | 0.8 | 4 | 2 | 10 | 0.75 | 50 |
| 0.4 | 0.8 | 4 | 2 | 12 | 0.75 | 50 |
| 0.4 | 0.8 | 4 | 2 | 15 | 0.75 | 50 |
| 0.5 | 1.0 | 4 | 3 | 5 | 0.95 | 50 |
| 0.5 | 1.0 | 4 | 3 | 10 | 0.95 | 50 |
| 0.6 | 1.2 | 4 | 3 | 15 | 0.95 | 50 |
| 0.6 | 1.2 | 4 | 3 | 10 | 1.15 | 50 |
| 0.75 | 1.5 | 4 | 3 | 5 | 1.15 | 50 |
| 0.75 | 1.5 | 4 | 3 | 10 | 1.45 | 50 |
| 0.75 | 1.5 | 4 | 3 | 15 | 1.45 | 50 |
| 0.75 | 1.5 | 4 | 3 | 20 | 1.45 | 50 |
standard carbide 3 flutes diamond coated ball nose end mills specifications
| radius | cutside diameter | shank diameter | flute length | overall length |
| 1.0 | 2 | 4 | 10 | 50 |
| 1.5 | 3 | 4 | 12 | 50 |
| 2.0 | 4 | 4 | 15 | 60 |
| 2.5 | 5 | 5 | 20 | 60 |
| 3.0 | 6 | 6 | 30 | 75 |
| 4.0 | 8 | 8 | 30 | 80 |
| 5.0 | 10 | 10 | 30 | 90 |
| 6.0 | 12 | 12 | 30 | 100 |
standard carbide 4 flutes diamond coated ball nose end mills specifications
| radius | cutside diameter | shank diameter | flute length | overall length |
| 0.1 | 2 | 4 | 10 | 50 |
| 0.1 | 3 | 4 | 15 | 50 |
| 0.1 | 4 | 4 | 20 | 60 |
| 0.2 | 5 | 5 | 25 | 60 |
| 0.2 | 6 | 6 | 30 | 75 |
| 0.3 | 8 | 8 | 35 | 80 |
| 0.3 | 10 | 10 | 40 | 90 |
| 0.3 | 12 | 12 | 45 | 100 |
Q: Are you a trading company or manufacture ?
A: As one of the oldest manufactures Tool manufacturer, we are now taking the leading position of cooling industry in mainland China. We have 48 employees with more than 15 engineers and 4 production lines.
Q: Do you accept OEM ?
A: Yes, we can accept OEM, and we have the professional designer to help you design your logo.
Q: Do you accept ODM ?
A: We welcome ODM, we have professional engineers team to help you with the design of the carbide end mill and to provide you the professional suggestion with the end mill you want.
Q: Can I buy a coated end mill sample for testing ?
A: Yes, we can supply you with a coated end mill sample. for most of the models, we have them in stock. we can supply you with the sample within 2 days after we get your payment.
Q: Can I visit your factory?
A: We warmly welcome you come to visit us at Jiangsu Province Changzhou City. we can pick you up at the railway station. If you fly Changzhou airport directly, we can pick you up at the airport.
Changzhou City New District XixiaShu Min Zhi tool factory is tungsten steel knives non-standard cutting tools and other products with the professional production and processing of private owned enterprises.

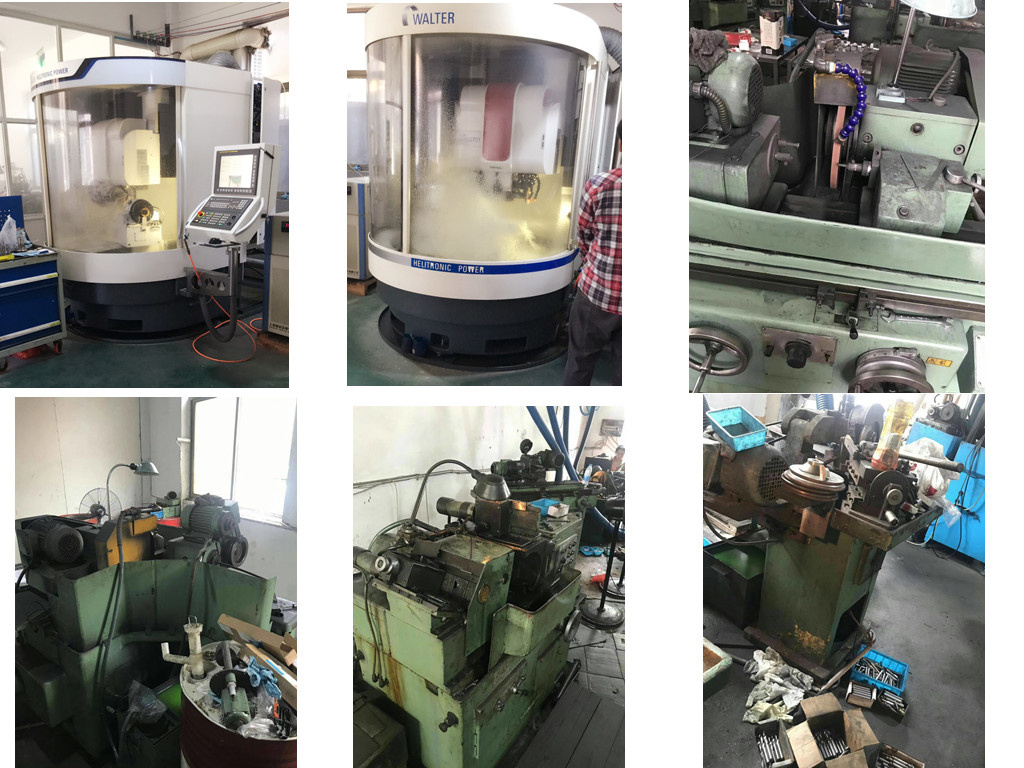

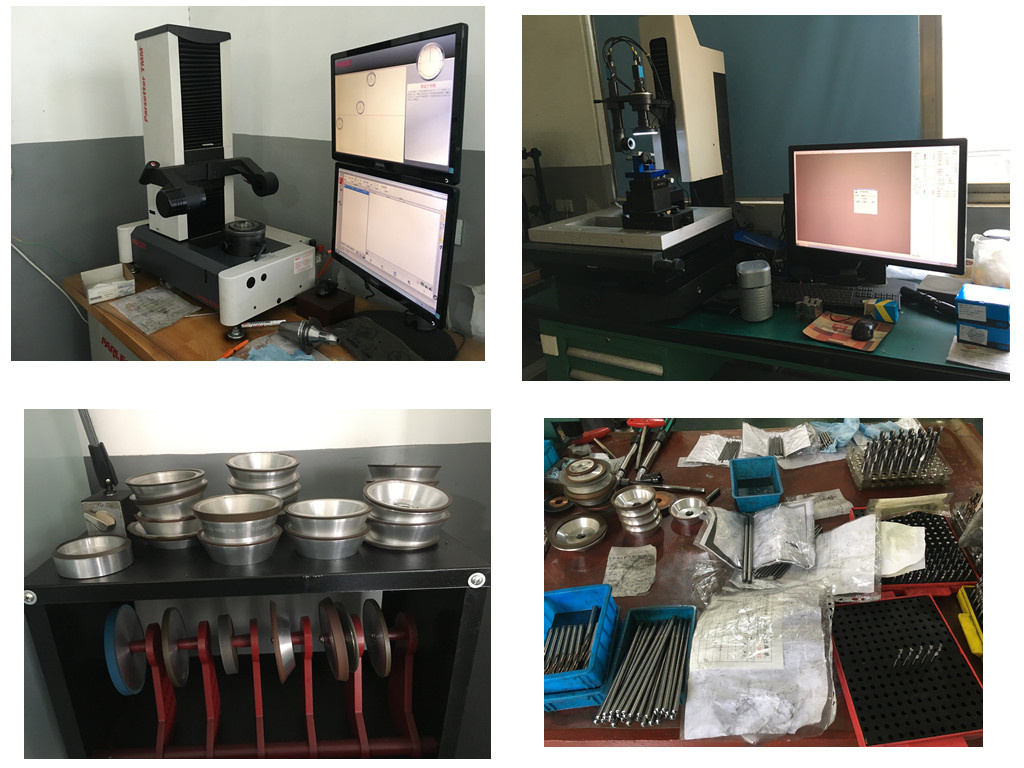

The company is headquartered in Changzhou City New District Xixiashu Town, the factory has a complete and scientific quality management system, advanced high-precision production equipment, the introduction of a series of imported equipment of high precision and high efficiency, high quality and efficient production of CNC cutter, tungsten steel knives, molding non-standard cutting tools. Our integrity, efficiency, strength, and product quality has been recognized and supported by our customers as well.
Our factory advocates:
First, the supremacy of credibility, timely delivery for the purpose. Wholeheartedly for the manufacturing industry services.
Two, exclusive advantages: To provide you with new product development in the full range of tool configuration program, cutting process difficult problems in the solution.
Three, production projects:
1, the whole hard alloy (tungsten steel knife series: Flat end mill cutter), round nose cutters, ball end milling, wave edge milling cutter, cutter for aluminum, stainless steel special milling cutter, drill, drill, step hole drilling, double helix cold non-standard lengthened drill, milling cutter, tungsten steel saw blade alloy three edge milling cutter conventional, reamer, non-standard spiral reamer, complete varieties, adequate inventory.
